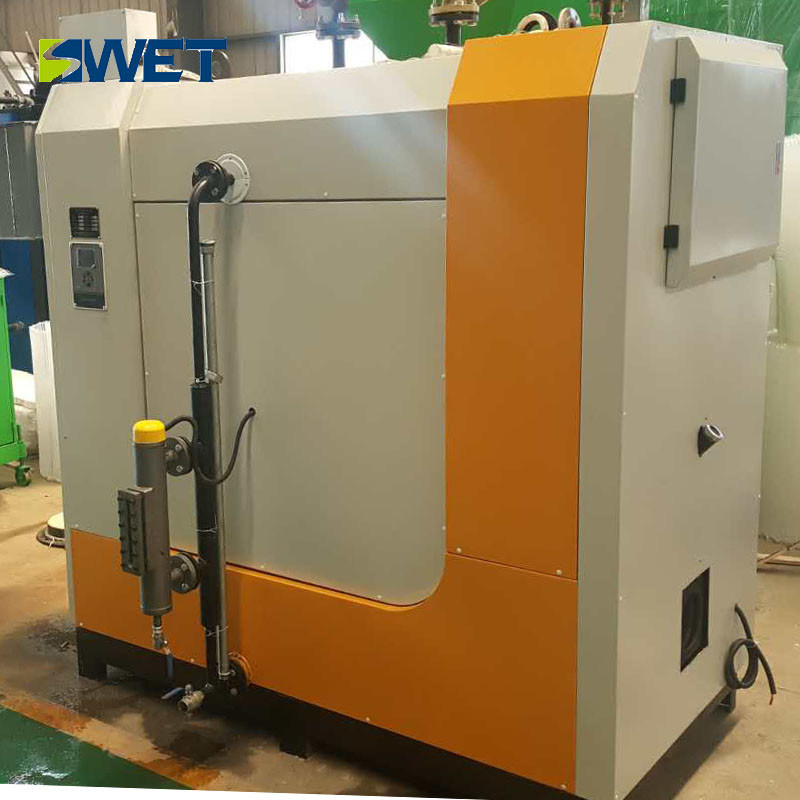

300kg 0.7Mpa 1.0Mpa 1.2Mpa industrial heating gas fired steam boiler
Contact Person : Swet Lee
Phone Number : +8618736903078
WhatsApp : +8618736903078
Minimum Order Quantity : | 1 Set/Sets | Price : | Negotiation |
---|---|---|---|
Packaging Details : | The biomass steam generator is covered with a waterproof film and the transport package is a wooden box. | Delivery Time : | 10-15 work days |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 1000 Set/Sets Per Year |
Place of Origin: | Henan China | Brand Name: | SWET |
---|---|---|---|
Certification: | ISO9001 | Model Number: | LHS0.15-0.7 |
Detail Information |
|||
Rated Evaporation: | 400kg/h | Weight: | 3000kg |
---|---|---|---|
Preset Pressure: | 0.7mpa | Rated Steam Temperature: | 170℃ |
Thermal Efficiency: | 85% | Color: | Customer's Requirement |
Design Fuel: | Biomass | Warranty: | 12months |
Highlight: | natural gas steam boiler,industrial electric steam boiler |
Product Description
1. Advanced steam boiler automatic controller, LCD screen, man-machine interface, users only need to set easily, the boiler can start and stop according to user requirements, load regulation, automatic water supply and other fully automatic operation. The boiler has complete functions, complete protection, simple operation, safe and reliable, and self-diagnosis function. Once an abnormal phenomenon occurs in the boiler operation, the combustion is automatically interrupted, and an audible and visual alarm is issued.
2. The furnace body is generally made of a special seamless tube for boilers. Because the generator has high pressure and temperature during normal operation, the safety protection system makes it safe, reliable and efficient in long-term operation. The safety valve consists of a strong copper alloy, check valve and exhaust valve for three-stage protection.
1. Compact structure, small footprint, beautiful appearance, small investment in land engineering
2. Easy operation, stable operation, rapid steam generation, rapid steam generation within 5 minutes, high working efficiency and wide application
3. Energy-saving, scientific design, high thermal energy, more than 50% energy saving than traditional boilers;
4. Safety, the product is over temperature, ignition, water cut, gas cut, all controlled by microcomputer, very safe
Fuel Cost analysis(Take 100 kg per hour as an example) | ||||
Equipment selection | Steam volume | Energy consumption | Unit Price | Operating costs |
Electrothermal steam boiler | 100kg | 72 kw/h | 0.08 USD/kw | 10.91 USD |
Fuel steam boiler | 100kg | 7 kg/h | 0.53 USD/kg | 7.42 USD |
Gas steam boiler | 100kg | 8 m³/h natural gas | 0.34 USD/m³ | 5.45 USD |
Biomass steam boiler | 100kg | 20 kg/h wood pellet | 0.08 USD/kg | 3.03 USD |
Best pellet horizontal wood steam boiler technical |
|||||||||||||
Rated evaporation | Rated pressure |
Rated steam tempe rature |
Feed water temper ature |
Design thermal efficiency | Water capacity | Steam outlet | water intake | Drain valve | Dimensions | Shipping weight | Full load biomass consumption | ||
L | W | H | |||||||||||
Kg/h | Mpa | ℃ | ℃ | % | L | DN | DN | DN | mm | mm | mm | T | Kg/h |
300 | 0.7 | 170℃ | 20℃ | 87% | 28 | 25 | 15 | 25 | 2000 | 1400 | 2700 | 1.35 | 49.3 |
500 | 0.7 | 170℃ | 20℃ | 93% | 29 | 32 | 15 | 25 | 2500 | 1800 | 2500 | 4.1 | 76.8 |
1000 | 0.7 | 170℃ | 20℃ | 92% | 29 | 32 | 15 | 25 | 3000 | 2300 | 2500 | 6 | 153.5 |
The best pellet horizontal wood steam boiler application area:
Application field description:
1.For food industry: food factory, beverage factory, bakery, high temperature milk sterilization, steamed soy milk, steamed steamed buns.
2.For pharmaceutical industry: hospital disinfection, hospital canteen, hospital bath, pharmaceutical equipment heating, cooking medicine.
3.For biological equipment industry: sterilizer, school laboratory, thermal test
our engineering case:
1. Henan Kaifeng Swet Boiler Co., Ltd. was founded in 1954. It is a key enterprise in the national fixed-point A-class boiler and D1 and D2 pressure vessel manufacturing.
2. The company has established a complete quality assurance system and has passed ISO9001 international quality management system certification.
Our Factory
The factory covers an area of 130,000 square meters, of which the construction area is 60,000 square meters. The company has strong technical force. The industrial boiler is the leading product of our company: high-efficiency low-emission energy-saving circulating fluidized bed boiler with various parameters, low-emission energy-saving gas boiler, each Grate industrial boilers, smelting industry and waste heat boilers in hazardous waste industries. Widely used in industrial production in all walks of life, self-supplied power stations, heating.
Q: Can I get guarantee of products?
A: Yes, every product is 1 year quality warranty under customer correct using the products.
Q: Do you have any Certificate?
A: Yes. Each of our boiler has China GB and ISO9001certificate
Q: How can I pay you?
A: T/T is very well used.We also accept other ways, depending on the circumstances
Q: What about the production?
A: Produce time is 30 days
Q: What about the maintenance?
A: I will offer you the timely maintenance way sheet after installation of the boiler mainly parts.
Q:How to install a boiler?
A:Our boiler provides completed installation drawing and manual, or send engineer abroad for installation guidance.
Q:How many years is the boiler’s life?
A:The boiler is designed for 20years life.
Q:How to choose a boiler model?
A:Confirm the type (steam or hot water), capacity, pressure (or output temperature need) and fuel(coal, biomass, gas or oil) of the boiler, we will suggest a suitable model based on your usage
Q:How is the warranty term?
A:If any problems caused for quality during the warranty period, the Seller will repair or replace the broken parts for free, if the problem caused from the client’s side, the Seller will help supply the spare part at lowest cost.
My company has to cover the country and the radiation overseas areas of mature sales network, and has a group of professional quality of the sales staff, according to customer requirements, to develop the most in line with the user's actual solution.
Service characteristics:
Pre-sale technical guidance, including the host, auxiliary equipment selection and layout. Provide a full set of installation services, such as self-installation, can provide on-site technical guidance, including furnace wall masonry, cooking, commissioning and so on.
After the sale of professional and technical personnel to train the customer burner, until its complete grasp, independent operation. Usually 24 hours to accept telephone consultation, timely service.
