Fuel Gas 2t/H 0.7Mpa 1.0Mpa 1.2Mpa Fire Tube Industrial Steam Boiler For Paper Industry ISO9001 Approval
Contact Person : Swet Lee
Phone Number : +8618736903078
WhatsApp : +8618736903078
| Minimum Order Quantity : | 1 Set/Sets | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | The boiler in nude package, but covered with water-proof covering, accessories in plywood case or tin case, this can be changed as your requirements | Delivery Time : | Within 18 days after payment |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram，Cash or on the basis of mutual agreement | Supply Ability : | 1500 Set/Sets Per Year |
| Place of Origin: | Henan China | Brand Name: | SWET |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | YDZ |
|
Detail Information |
|||
| Rated Evaporation: | 300 Kg/h | Work Pressure: | 1.0MPa |
|---|---|---|---|
| Steam Temperature: | 180℃ | Test Efficiency: | 97.62% |
| Keywords: | Industrial Steam Boiler | ||
| High Light: | natural gas steam boiler,industrial electric steam boiler |
||

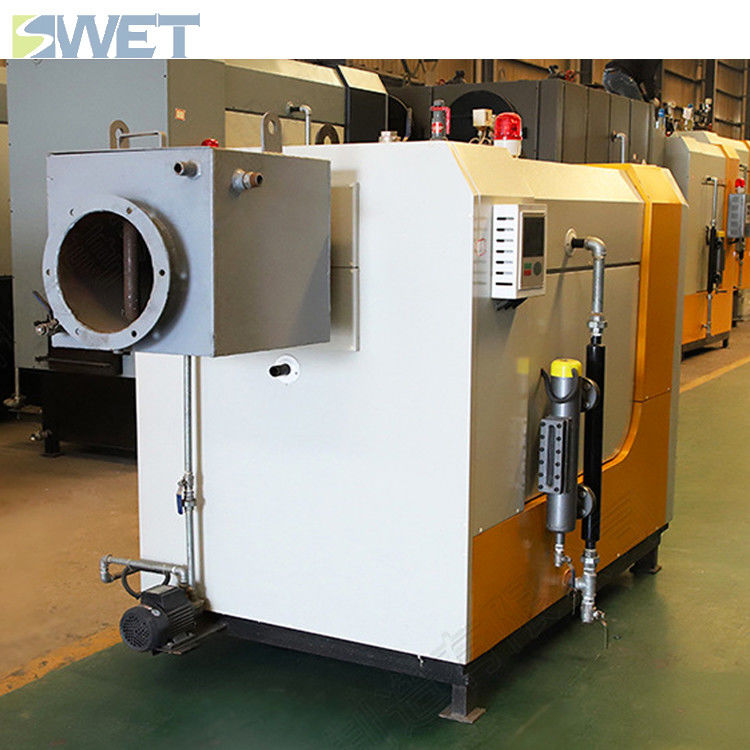

Product Description
1.Safe and reliable: gas steam generator water capacity of less than 30L, exempt from examination and approval, the boiler using automatic microcomputer control system, equipment, automatic operation control, voltage display at a glance, with overpressure and water interlock protection, The steam generator feed system uses the design concept of the turntable oblique feed to completely eliminate the phenomenon that the biomass steam generator burns the fuel back to the fuel, and truly achieves the double safety of the biomass steam generator body control safety and the combustion system control safety .
2.Sophisticated and beauty: gas steam generator innovation and improvement to enhance the practicality, modeling novel, especially small size, easy to install without basic, product appearance, soft colors, and the environment coherent, full of artistic sense.
3.Efficient energy-saving: gas steam boiler generator using the most advanced micro-positive pressure combustion, a unique primary air heating, secondary air combustion configuration, making the combustion completely, the boiler body multi-return layout, compact structure, heating area sufficient, The furnace is very fast, 5 minutes pressure up to 0.7MPa; furnace selection of new refractories, enhanced combustion and can extend the life of the body, is the latest environmentally friendly energy-saving products.
Biomass generator technical parameters
| Generator Type | SZF0.5t | SZF0.7t | SZF1.02t | SZF1.15t | SZF1.6t | SZF2.7t |
|
Rated pressure (MPa) |
0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 |
| Rated steam temperature(℃) | 170 | 170 | 170 | 170 | 170 | 170 |
|
Rated evaporation (kg/h) |
100 | 150 | 200 | 300 | 400 | 500 |
| The biggest fuel consumption(kg/h) | 17 | 25 | 34 | 47 | 65 | 80 |
| Thermal efficiency | 85% | 85% | 85% | 85% | 85% | 85% |
| Weight (kg) | 600 | 700 | 1020 | 1150 | 1600 | 2700 |
| Overall dimensions(LxWxH) | 1600x900x1900 | 1600x900x1900 | 2150x950x2400 | 2000x1400x2700 | 2700x1100x2450 | 2200x1500x2500 |
biomass steam generator applicable scenario :
Our engineering case:
Henan kaifeng Swet (original name Desheng) Boiler Co.Ltd was established in 1954 ,We have continued to provide customers with more than 60 years of quality service, known as the king of China's boiler.It’s the national designated A-class boilers and D1, D2 class pressure vessel manufacturing key enterprises and has passed ISO9001 international quality management certification system certification. It holds level 1 boiler installation permit ,National special equipment manufacturing license ,National special equipment installation remould maintenance permits and so on.In 1979 the world's first circulating fluidized bed boiler developed by the Austrian company in Finland, In 1987 China's first circulating fluidized bed boiler was born in our factory.In 2016 In order to meet current emissions and reduce energy consumption requirements, our company launched efficient low-emission energy-saving circulating fluidized bed boiler, has been identified by the national institute of special equipment .
Our main products including circular flow bed (CFB)boiler ,gas boiler,coal boiler,biomass boiler,oil boiler,power plant boiler , energy-saving boiler,solider waste boiler, high-efficiency boiler,electric hot water boiler,high-pressure boiler,fully automatic control boiler,wood chip biomass steam boiler,chain grate boiler,condensing boiler ,natural gas steam boiler ,water tube boiler,fire tube boiler,full artificial intelligence boiler ,biomass steam generator,refractory materials,boiler accessories and so on.
OUR ADVANTAGES:
1.Chinese Academy of Sciences circulating fluidized bed boiler research and development base.
2.China 's top ten boiler manufacturing enterprises.
3.Shanghai Industrial Boiler Research Institute Industrial Boiler Technology Development Relying on the unit.
4.North China Water Conservancy and Hydropower University teaching and research base
5. The China’s first circular flow bed (CFB)boiler manufacturer
Some of our domestic customers:
China Petroleum Pipeline Materials and Equipment Corporation.
China Petroleum & Chemical Corporation.
China Aero Engine Group.
COFCO Group Limited.
Any Question, Please contact us ,we serve you 24 hours !
