600kg / H Biomass Pellet Industrial Steam Boiler Environmentally Friendly

Product Details:
Place of Origin: HENAN CHINA
Brand Name: SWET
Certification: ISO 9001
Model Number: LSS
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiation
Packaging Details: The biomass steam generator is covered with a waterproof film and the transport package is a wooden box.
Delivery Time: 15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1500 Set/Sets Per Year

Detail Information

Rated Evaporation: 600kg Steam Pressure: 0.7Mpa
Rated Steam Temperature: 170℃ Thermal Efficiency: 93%
Color: Customer's Requirement Design Fuel: Biomass
Warranty: 12 Months Weight: 600kg
Dimension: 2500x1800x2500mm Material: Boiler Steel
Pressure: Low Pressure Structure: Fire Tube,Water Tube,water-fire Tube
High Light:

oil steam boiler


industrial electric steam boiler

Product Description

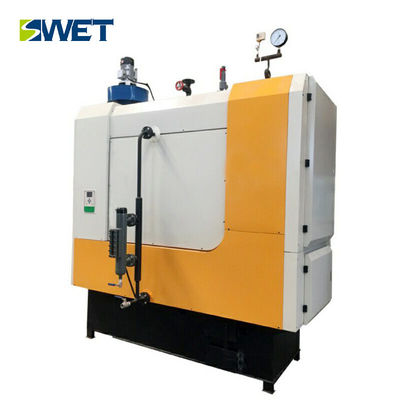

600kg / H Biomass Pellet Industrial Steam Boiler Environmentally Friendly


The biomass steam boiler description

 1. The steam generator fuels are renewable biomass, the running cost is one fifth of electric boiler, one third of oil boiler.
  2. The steam generator furnace adopts the three-dimensional air circulation of three sides and a second oxygenating mouth.complete combustion and no visible smoke emissions. fully meeting the national emission requirements on the boiler.
  3. Environmental protection and durability: biomass steam generator with a new multi-tube cyclone dust collector and energy-saving integrated structure, greatly reducing the flue gas temperature, improve thermal efficiency, environmental protection requirements to meet the new national standards.

 600kg boiler.jpg


The biomass steam boiler technical parameters

Biomass steam generator technical
Rated evaporation Rated pressure Rated steam temperature Feed water temperature Design thermal efficiency Water capacity Steam outlet water intake Drain valve Dimensions Shipping weight Full load biomass consumption
Kg/h Mpa % L DN DN DN mm mm mm T Kg/h
80 0.7 170℃ 20℃ 90% 26.5 15 15 20 1600 900 1750 0.6 13.6
100 0.7 170℃ 20℃ 90% 26.8 15 15 20 1600 900 1900 0.65 16.4
150 0.7 170℃ 20℃ 90% 27 15 15 20 1650 900 1900 0.7 24.6
200 0.7 170℃ 20℃ 90% 27 20 15 25 2150 1000 2400 1.2 32.8
300 0.7 170℃ 20℃ 93% 28 25 15 25 2000 1400 2700 1.35 46.1
400 0.7 170℃ 20℃ 93% 28.7 32 15 25 2350 1750 2200/2500 3 61.5
500 0.7 170℃ 20℃ 93% 29 32 1525 25 2500 1800 2500/3100 4.1 76.8
600 0.7 170℃ 20℃ 93% 29.5 32 15 25 2500 1800 2500/3100 4.3 80
1000 0.7 170℃ 20℃ 93% 29 32 15 25 3000 2300 2500 6 153.5


biomass steam boiler


Biomass pellet steam boiler application field description:

For food industrial:Such as pastry, soy products, meat processing, etc.

For chemical industry:Chemical and fertilizing

For rice mill:dry

For pharmaceutical industry:Such as Chinese herbal medicine cooking, steam sterilization, etc.


and so on...


our engineering case:


.biomass steam boiler

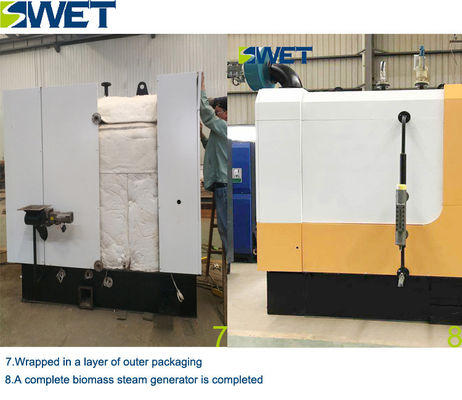

600kg biomass steam boiler production process:
100kg wood chip industrial biomass steam boiler for Industrial production





Q: Can I get guarantee of products?

A: Yes, every product is 1 year quality warranty under customer correct using the products.

Q: Do you have any Certificate?

A: Yes. Each of our boiler has China GB and ISO9001certificate

Q: How can I pay you?

A: T/T is very well used.We also accept other ways, depending on the circumstances

Q: What about the production?

A: Produce time is 30 days

Q: What about the maintenance?

A: I will offer you the timely maintenance way sheet after installation of the boiler mainly parts.



Q:How to install a boiler?

A:Our boiler provides completed installation drawing and manual, or send engineer abroad for installation guidance.

Q:How many years is the boiler’s life?

A:The boiler is designed for 20years life.

Q:How to choose a boiler model?

A:Confirm the type (steam or hot water), capacity, pressure (or output temperature need) and fuel(coal, biomass, gas or oil) of the boiler, we will suggest a suitable model based on your usage

Q:How is the warranty term?

A:If any problems caused for quality during the warranty period, the Seller will repair or replace the broken parts for free, if the problem caused from the client’s side, the Seller will help supply the spare part at lowest cost.


Our service


Pre-sale service:

1.24 hours phone,email,trademanager online services;

2. We will provide you with high-quality technical solutions, product design instructions.

3.We welcome you to visit our boiler factory to have a look and check;


After-sale service:

1.we will delivery the machine as soon as possible according to your requirement,within 20days;

2.We will send rich practiced experience engineers to you to install and test the machine and train

3.We will give you one year guarantee time after the machine can run well;
