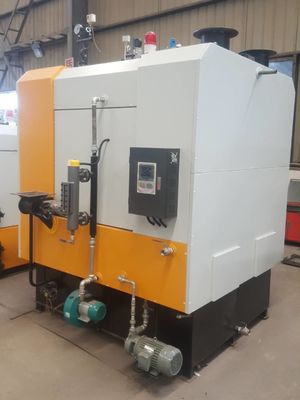

300kg 0.7Mpa 1.0Mpa 1.2Mpa industrial heating gas fired steam boiler
Contact Person : Swet Lee
Phone Number : +8618736903078
WhatsApp : +8618736903078
| Minimum Order Quantity : | 1 SET | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | The 1000kg steam generator bady with plywood packaging. | Delivery Time : | 10 WORKING DAY |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 3000 SETS PER YEAR |
| Place of Origin: | HENAN,CHINA | Brand Name: | SWET |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | LSS-6011 |
|
Detail Information |
|||
| Product Name: | 1000kg Gas Steam Boiler | Item: | YDZ-6011 Gas Steam Boiler |
|---|---|---|---|
| Design Fuel: | Gas/oil | Color: | Customer's Requirement |
| Warranty: | 12 Months | Thermal Efficiency: | Over 92% |
| The Biggest Fuel Consumption(Nm3/h): | 74.6 | Rated Evaporation (kg/h): | 1000 |
| Rated Steam Temperature(℃): | 170 | Rated Steam Pressure(Mpa): | 0.7 |
| Size: | 3200x2300x2500MM | Weight: | 6000kg |
| Burner: | Italy Riello | Material: | Boiler Steel |
| Highlight: | natural gas fired steam generator,diesel steam boiler |
||
Product Description
1. The steam boiler fuels are renewable biomass; the running cost is one fifth of electric boiler, one third of oil boiler.
2. The steam boiler full automatic control. Just connect the water and electricity; press the key, then the boiler will automatically enter the automatic running, safer and more convenient.
3. The steam boiler furnace adopts the three-dimensional air circulation of three sides and a second oxygenating mouth; complete combustion and no visible smoke emissions; fully meeting the national emission requirements on the boiler.
4. The steam boiler control system security protection includes multiple functions such as low water level, overheating, and overpressure etc. to ensure no security risks.
Gas steam boiler technical parameters
| Gas steam boiler technical parameter | |||||||||||||||
| Rated evaporati on | Rated pressure | Rated steam temperat ure | Feed water temperat ure | Design thermal efficienc y | Water capacit y | Steam outlet | water intake | Drain valve | Gas supply pressur e | Gas pipe diamet er | Dimensions | Shippin g weight | Full load biomass consuption | ||
| L | W | H | |||||||||||||
| Kg/h | Mpa | ℃ | ℃ | % | L | DN | DN | DN | Kpa | DN | mm | mm | mm | T | Nm³/h |
| 80 | 0.7 | 170℃ | 20℃ | 90% | 27 | 15 | 15 | 20 | 2-3.5 | 20 | 1050 | 1000 | 1500 | 0.5 | 6.5(NG) |
| 100 | 0.7 | 170℃ | 20℃ | 90% | 27 | 15 | 15 | 20 | 2-3.5 | 20 | 1150 | 1100 | 1600 | 0.6 | 8.4(NG) |
| 150 | 0.7 | 170℃ | 20℃ | 90% | 27.6 | 15 | 15 | 20 | 2-3.5 | 20 | 1250 | 1200 | 1700 | 0.7 | 11.7(NG) |
| 200 | 0.7 | 170℃ | 20℃ | 90% | 27.6 | 20 | 15 | 25 | 2-3.5 | 20 | 1600 | 1500 | 2300 | 1.2 | 15.7(NG) |
| 300 | 0.7 | 170℃ | 20℃ | 92% | 28 | 32 | 15 | 25 | 3.5-5 | 20 | 1700 | 1600 | 2300 | 1.3 | 22.3(NG) |
| 400 | 0.7 | 170℃ | 20℃ | 92% | 28.6 | 32 | 15 | 25 | 3.5-5 | 32 | 2350 | 1750 | 2200 | 2.8 | 30.5(NG) |
| 500 | 0.7 | 170℃ | 20℃ | 92% | 29 | 40 | 15 | 25 | 3.5-5 | 32 | 3200 | 1500 | 2100 | 3 | 37.9(NG) |
| 600 | 0.7 | 170℃ | 20℃ | 92% | 29 | 40 | 15 | 25 | 3.5-5 | 32 | 3200 | 1500 | 2500 | 4.2 | 46.9(NG) |
| 1000 | 0.7 | 170℃ | 20℃ | 92% | 29 | 40 | 15 | 25 | 3.5-5 | 32 | 3000 | 2300 | 2500 | 6.0 | 74.6 (NG) |
