300kg 0.7Mpa 1.0Mpa 1.2Mpa industrial heating gas fired steam boiler
Contact Person : Swet Lee
Phone Number : +8618736903078
WhatsApp : +8618736903078
| Minimum Order Quantity : | 1 SET | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | The 400kg steam generator bady with plywood packaging. | Delivery Time : | 10 WORKING DAY |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 3000 SETS PER YEAR |
| Place of Origin: | HENAN ,CHINA | Brand Name: | SWET |
|---|---|---|---|
| Certification: | ISO 9001 | Model Number: | YDZ |
|
Detail Information |
|||
| Product Name: | 400kg Gas Steam Boiler | Item: | LSS-6009 Gas Steam Boiler |
|---|---|---|---|
| Design Fuel: | Gas/oil | Color: | Customer's Requirement |
| Warranty: | 12 Months | The Biggest Fuel Consumption(Nm3/h): | 30.5 |
| Rated Evaporation (kg/h): | 400 | Rated Steam Temperature(℃): | 170 |
| Rated Steam Pressure(Mpa): | 0.7 | Burner: | Italy Riello |
| Size: | 2350x1750x2200mm | Weight: | 2800kg |
| Style: | Horizontal,Vertical,steam Machine | Pressure: | Low Pressure,Low Pressure(1.25MPa) |

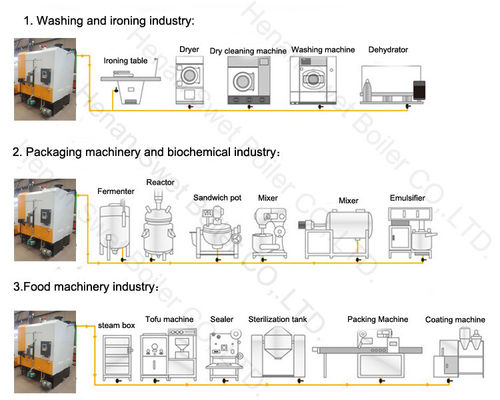

| Usage: | Industrial,hospital Chemical Industry School,Steam Outputing | ||
| High Light: | industrial biomass boiler,oil fired steam boiler |
||
Product Description
1. The gas steam boiler built-in steam separator solves the problem of steam with water to ensure the quality of the steam.
2. The gas steam boiler full automatic control. Just connect the water and electricity; press the key, then the boiler will automatically enter the automatic running, safer and more convenient.
3. The steam boiler control system security protection includes multiple functions such as low water level, overheating, and overpressure etc. to ensure no security risks.
4. The steam boiler high quality security controls pressure gauge, safety valve and pressure switch ensure product high quality and a long service life.
Gas steam boiler technical parameters:
| Gas steam boiler technical parameter | |||||||||||||||
| Rated evaporati on | Rated pressure | Rated steam temperat ure | Feed water temperat ure | Design thermal efficienc y | Water capacit y | Steam outlet | water intake | Drain valve | Gas supply pressur e | Gas pipe diamet er | Dimensions | Shippin g weight | Full load biomass consuption | ||
| L | W | H | |||||||||||||
| Kg/h | Mpa | ℃ | ℃ | % | L | DN | DN | DN | Kpa | DN | mm | mm | mm | T | Nm³/h |
| 80 | 0.7 | 170℃ | 20℃ | 90% | 27 | 15 | 15 | 20 | 2-3.5 | 20 | 1050 | 1000 | 1500 | 0.6 | 6.5(NG) |
| 100 | 0.7 | 170℃ | 20℃ | 90% | 27 | 15 | 15 | 20 | 2-3.5 | 20 | 1150 | 1100 | 1600 | 0.5 | 8.4(NG) |
| 150 | 0.7 | 170℃ | 20℃ | 90% | 27.6 | 15 | 15 | 20 | 2-3.5 | 20 | 1250 | 1200 | 1700 | 0.7 | 11.7(NG) |
| 200 | 0.7 | 170℃ | 20℃ | 90% | 27.6 | 20 | 15 | 25 | 2-3.5 | 20 | 1600 | 1500 | 2300 | 1.2 | 15.7(NG) |
| 300 | 0.7 | 170℃ | 20℃ | 92% | 28 | 32 | 15 | 25 | 3.5-5 | 20 | 1700 | 1600 | 2300 | 1.3 | 22.3(NG) |
| 400 | 0.7 | 170℃ | 20℃ | 92% | 28.6 | 32 | 15 | 25 | 3.5-5 | 32 | 2350 | 1750 | 2200 | 2.8 | 30.5(NG) |
Gas steam generator picture:
