Full Automatic Gas Industrial Steam Boiler 500KG Environmental Protection

Minimum Order Quantity : 1 SET Price : Negotiation
Packaging Details : The 500kg steam generator bady with plywood packaging. Delivery Time : 10 WORKING DAY
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 3000 SETS PER YEAR
Place of Origin: HENAN,CHINA Brand Name: SWET
Certification: ISO9001 Model Number: LSS-6003

Detail Information

Product Name: 500kg Gas Steam Generator Item: LSS-6003 Gas Steam Generator
Design Fuel: Gas/oil Color: Customer's Requirement
Warranty: 12 Months Thermal Efficiency: Over 90%
The Biggest Fuel Consumption(Nm3/h): 37.9 Rated Evaporation (kg/h): 500
Rated Steam Temperature(℃): 170 Rated Steam Pressure(Mpa): 0.7
Size: 3200x1500x2100mm Usage: Industrial,Garment Manufacturer,Industrial/Power Station
Type: Natural Circulation,Once Through /Auxiliary Cycle,Natural Circulation/Once Through Fuel: Oil,Gas,Oil/Gas-fired
Style: Horizontal,Vertical,horizontal And Vertical,Other Condition: New
Output: Steam Pressure: Low Pressure,High Pressure,Low Pressure(1.25MPa),Other
Structure: Fire Tube,Water Tube,water-fire Tube Application: Industrial Production,Machinery Industry,Hospital,chemical Industry,Food Factory
Working Pressure: 0.7---2.5Mpa,low Pressure/high Pressure Steam Temperature: 170-204℃,194 ℃,184-225 Degree,≤194℃
High Light:

natural gas steam boiler

,

industrial electric steam boiler

Product Description



500KG full automatic control gas diesel steam generator



   1. The steam generator fuels are renewable biomass; the running cost is one fifth of electric boiler, one third of oil boiler.



   2. The steam generator full automatic control. Just connect the water and electricity; press the key, then the boiler will automatically enter the automatic running, safer and more convenient.



   3. The steam generator Easy installation; no need to ask for a professional installation personnel to install, meanwhile saving a lot of installation materials.



    4. Environmental protection and durability: biomass steam generator with a new multi-tube cyclone dust collector and energy-saving integrated structure, greatly reducing the flue gas temperature, improve thermal efficiency, environmental protection requirements to meet the new national standards.



Gas steam generator technical parameters





Gas steam generator technical parameter
Rated evaporati on Rated pressure Rated steam temperat ure Feed water temperat ure Design thermal efficienc y Water capacit y Steam outlet water intake Drain valve Gas supply pressur e Gas pipe diamet er Dimensions Shippin g weight Full load biomass consuption
                      L W H
Kg/h Mpa % L DN DN DN Kpa DN mm mm mm T Nm³/h
80 0.7 170℃ 20℃ 90% 27 15 15 20 2-3.5 20 1050 1000 1500 0.6 6.5(NG)
100 0.7 170℃ 20℃ 90% 27 15 15 20 2-3.5 20 1150 1100 1600 0.5 8.4(NG)
150 0.7 170℃ 20℃ 90% 27.6 15 15 20 2-3.5 20 1250 1200 1700 0.7 11.7(NG)
200 0.7 170℃ 20℃ 90% 27.6 20 15 25 2-3.5 20 1600 1500 2300 1.2 15.7(NG)
300 0.7 170℃ 20℃ 92% 28 32 15 25 3.5-5 20 1700 1600 2300 1.3 22.3(NG)
400 0.7 170℃ 20℃ 92% 28.6 32 15 25 3.5-5 32 2350 1750 2200 2.8 30.5(NG)
500 0.7 170℃ 20℃ 92% 29 40 15 25 3.5-5 32 3200 1500 2100 3 37.9(NG)
600 0.7 170℃ 20℃ 92% 29 40 15 25 3.5-5 32 3200 1500 2500 4.2 46.9(NG)

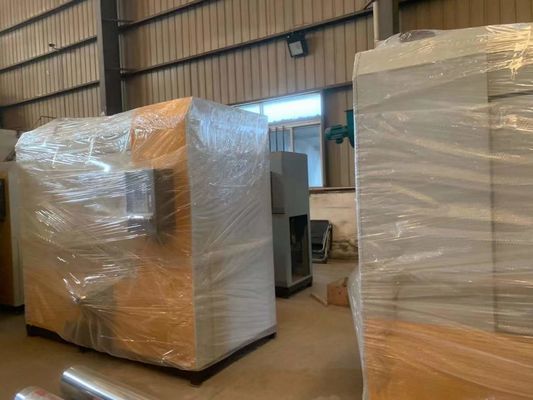

Full Automatic Gas Industrial Steam Boiler 500KG Environmental Protection 0



Full Automatic Gas Industrial Steam Boiler 500KG Environmental Protection 1



Full Automatic Gas Industrial Steam Boiler 500KG Environmental Protection 2



Full Automatic Gas Industrial Steam Boiler 500KG Environmental Protection 3

Full Automatic Gas Industrial Steam Boiler 500KG Environmental Protection 4

Full Automatic Gas Industrial Steam Boiler 500KG Environmental Protection 5
