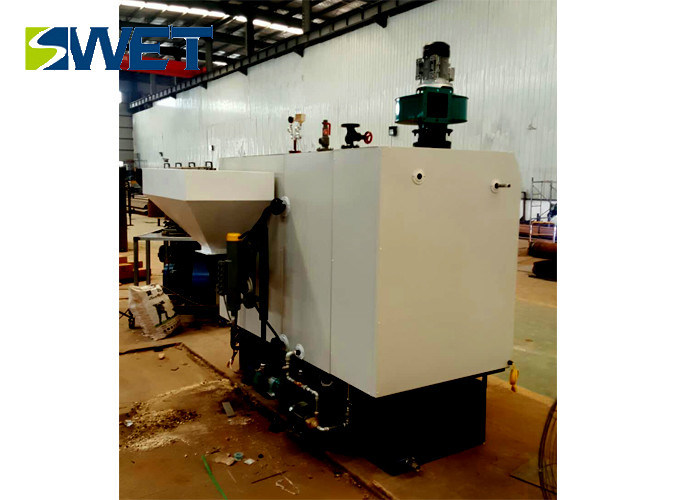

Furnace wall structure 0.7Mpa 1.0Mpa 1.2Mpa Biomass Steam Boiler

Product Details:
Place of Origin: Henan China
Brand Name: SWET
Certification: ISO9001
Model Number: YDZ0.5-0.7-S-3018
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiation
Packaging Details: The biomass steam generator is covered with a waterproof film and the transport package is a wooden box.
Delivery Time: 10-15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 Set/Sets Per Year

Detail Information

Rated Evaporation: 500 Kg/h Maximum Fuel Consumption(Kg/h): 80 Kg/h
Preset Pressure: 0.7Mpa Rated Steam Temperature: 170℃
Thermal Efficiency: 85% Style: Horizontal
Dimensions(Length × Width × Height)mm: 2200*1500 *2500 Model Number: YDZ0.5-0.7-S-3018
High Light:

industrial biomass boiler


small steam boiler

Product Description

Furnace wall structure 0.7Mpa 1.0Mpa 1.2Mpa Biomass Steam Boiler


Product description


1. Crossflow structure, advanced level in domestic and international.


2. After 4 or 5 minutes ignition, it can get enough pressured steam.


3. Automatically control combustion, steam pressure and water level, ensure safe and economical operation.


4. Combustion gas flowing among conduit group at a high speed that assures high quality heat convection and transfer and high effect heat absorption.


5. Quiet operation and stable combustion, completely according with environmental protection standard.


6. Perfect boiler body structure ensures high quality heating absorption and high combustion efficiency up to 92% -96%.


Product advantages


1. Energy saving and environmental protection,scientific design,control system,automatic design


2. The biomass steam generator is compact in structure, small in size, elegant in appearance, easy in installation and low in failure rate.


3. Modular machine factory has been configured to make up the pump and solenoid valve, just connected to the power supply, the water inlet pipe can be, saving installation costs and a lot of installation materials;


4. Energy saving fuel, is a renewable resource, operating costs is one sixth of electric boilers, oil boiler is one-third;


5. The overall modular factory, small size, less than half a ton of steam boiler buckle with this steam generator module combination of alternative solutions


Generator product model LHS0.1-0.7-S LHS0.15-0.7-S LSS0.2-0.7-S LSS0.3-0.7-S LSS0.4-0.7-S YDZ0.5-0.7-S
preset pressure(Mpa) 0.7 0.7 0.7 0.7 0.7 0.7
Rated steam temperature(℃) 170 170 170 170 170 170
Rated evaporation(Kg/h) 100 150 200 300 400 500
Maximum fuel consumption(Kg/h) 17 25 34 47 65 80
Thermal efficiency 85% 85% 85% 85% 85% 85%
weight(Kg) 600 700 1020 1150 1600 2700
Dimensions(Length × width × height)mm














Furnace wall structure 0.7Mpa 1.0Mpa 1.2Mpa  Biomass Steam Boiler 0
