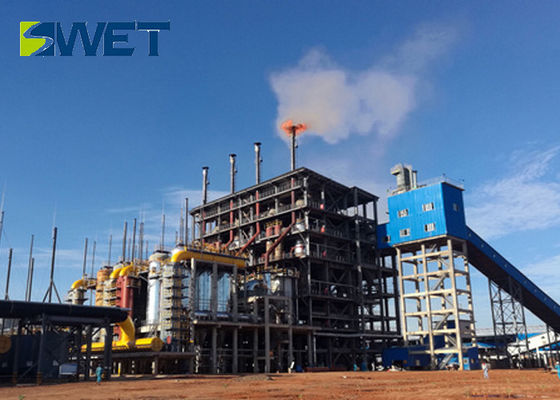

Heat Resistant Coal Fired Fluidized Boiler ISO9001 Approval Low Pollution

Minimum Order Quantity : 1 Set/Sets Price : Negotiation
Packaging Details : 1. Industrial Steam Boiler in nude package. 2. All boiler accessories in plywood or wooden case. 3.Delivery Detail :Shipped in 60 days after payment Delivery Time : shipped in 60 after payment
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash or on the basis of mutual agreement Supply Ability : 700 Set/Sets Per Year
Place of Origin: Henan China Brand Name: SWET
Certification: ISO9001 Model Number: DHX20-1.6-0005

Detail Information

Rated Evaporation: 20t/h Work Pressure: 1.6MPa
Steam Temperature: 204℃ Feed Water Temperature: 104℃
Fuel Consumption: 2483kg/h Thermal Efficiency: 91%
High Light:

circulating fluidized bed combustion boiler


coal power plant boiler

Product Description

1.6MPa Coal Fired Biomass Fired CFB Boiler Circulation Fluidized Bed Boiler Power

Product description


1. Clean combustion technique
  Simple desulfurization can be conducted in the hearth by adding lime stone in the circulating fluidized bed boiler .When calcium sulfur mole ratio is 20 ,the desulfurization efficiency would reach to 80%;due to grading supply and low-temperature burning adopted in the operation ,the generation of Nox is lower. Therefore ,it greatly reduces the discharge value of sox and nox, and improve the atmospheric and environmental quality.


2. Easy for the comprehensive utilization of ash
  Circulating fluidized bed boiler belongs to low-temperature burnt .simultaneously, good after- combustion condition makes carbon content of ash lower ,which is easy for the comprehensive utilization.


3. Heating surface for immersed tubes not arranged in bed
  Heating surface for immersed tubes not arranged in bed of circulating fluidized bed boiler ,thus avoiding the wear of heating surface for immersed tubes .in addition ,due to there is no heating surface of immersed tubes ,it is easy for starting and stopping the boiler ,and also can be directly activated after long-time fired banked.


Circular flow bed CFB boiler technical parameters


Model Rated evaporation Work pressure Steam temperature Water supply temperature Fuel consumption Thermal efficiency Dimensions
Unit t/h MPa Kg/h % mm(Long x wide x high)
DHX20-1.25 20 1.25 194 104 2475 91 12000x8160x22120
DHX20-1.6 20 1.6 204 104 2483 91 12000x8160x22120
DHX20-2.5/400 20 2.5 400 104 2934 91 12000x8160x22120
DHX25-1.25 25 1.25 154 104 3003 91 13000x8610x23170
DHX25-1.6 25 1.6 204 104 3100 91 13000x8610x23170
DHX25-2.5/400 25 2.5 400 104 3692 93 13000x8610x23170
DHX30-1.25 30 1.25 194 104 3712 93 12170x9200x25500
DHX30-1.6 30 1.6 204 104 3724 93 12170x9200x25500
DHX30-2.5/400 30 2.5 400 104 4431 93 12170x9200x25500
DHX35-1.25 35 1.25 194 104 4331 91



Heat Resistant Coal Fired Fluidized Boiler ISO9001 Approval Low Pollution 0
