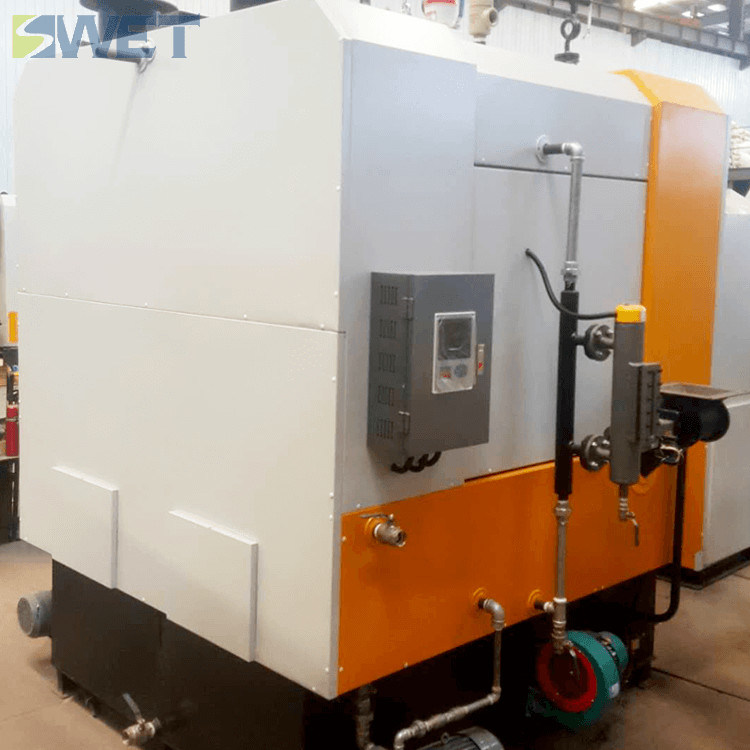

100kg/H - 3000kg/H Wood Biomass Industrial Steam Boiler
Contact Person : Swet Lee
Phone Number : +8618736903078
WhatsApp : +8618736903078
| Minimum Order Quantity : | 1 Set/Sets | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | The biomass steam generator is covered with a waterproof film and the transport package is a wooden box. | Delivery Time : | 25-30 work days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 1000 Set/Sets Per Year |
| Place of Origin: | Henan China | Brand Name: | SWET |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | LSS0.4-0.7-S-3016 |
|
Detail Information |
|||
| Rated Evaporation: | 400 Kg/h | Weight: | 1600 Kg |
|---|---|---|---|
| Preset Pressure: | 0.7mpa | Rated Steam Temperature: | 170℃ |
| Thermal Efficiency: | 85% | Style: | Vertical |
| Design Fuel: | Biomass | Model Number: | LSS0.4-0.7-S-3016 |
| Highlight: | biomass steam boiler,small steam boiler |
||
Product Description
Product description
1. Environmental protection and durability: biomass steam generator with a new multi-tube cyclone dust collector and energy-saving integrated structure,
2. Greatly reducing the flue gas temperature, improve thermal efficiency, environmental protection requirements to meet the new national standards; meticulous design,
3. The use of table steel is much higher than peers Standard, the main body of biomass generators in strict accordance with the A-class boiler manufacturing process requirements, by holding the national boiler pipe pressure vessel welder welder for boiler welding, durable.
Biomass steam boiler features
1. Energy saving and environmental protection
2. Scientific design,control system
3. Automatic design
4. The biomass steam generator is compact in structure, small in size, elegant in appearance, easy in installation and low in failure rate.
Application :
1. Washing ironing industry: dry cleaning machines, dryers, washing machines, dehydration machines, ironing machines, irons, and other equipment supporting the use of
2. Packaging machinery industry: labeling machine, sleeve labeling machine supporting the use
3. Biochemical industry: fermenter, reactor, sandwich pot, mixer, emulsifying machine and other equipment supporting the use of
4. Food machinery industry: tofu machine, steam box, sterilization tank, packaging machine, coating equipment, sealing machine, and other equipment supporting the use of
5. Other industries: (oil, automobile) steam cleaning industry, (hotels, dormitories, schools, mixing station) steam and hot water supply, (bridge, railway) concrete conservation
| Generator product model | LHS0.1-0.7-S | LHS0.15-0.7-S | LSS0.2-0.7-S | LSS0.3-0.7-S | LSS0.4-0.7-S | YDZ0.5-0.7-S |
| preset pressure(Mpa) | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 |
| Rated steam temperature(℃) | 170 | 170 | 170 | 170 | 170 | 170 |
| Rated evaporation(Kg/h) | 100 | 150 | 200 | 300 | 400 | 500 |
| Maximum fuel consumption(Kg/h) | 17 | 25 | 34 | 47 | 65 | 80 |
| Thermal efficiency | 85% | 85% | 85% | 85% | 85% | 85% |
| weight(Kg) | 600 | 700 | 1020 | 1150 | 1600 | 2700 |
| Dimensions(Length × width × height)mm |
1600*900 *1900 |
1600*900 *1900 |
2150*950 *2400 |
2000*1400 *2700 |
2700*1100 *2450 |
2200*1500 *2500 |
