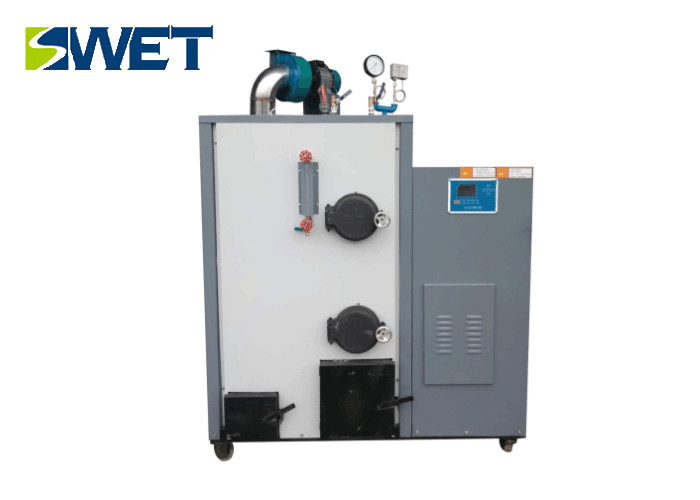

High efficiency 1.0 ton 0.7Mpa 1.0Mpa 1.2Mpa low pressure wood chip steam boiler for machinery industry
Contact Person : Swet Lee
Phone Number : +8618736903078
WhatsApp : +8618736903078
Minimum Order Quantity : | 1 Set/Sets | Price : | Negotiation |
---|---|---|---|
Packaging Details : | The biomass steam generator is covered with a waterproof film and the transport package is a wooden box. | Delivery Time : | 10-15 work days |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 1000 Set/Sets Per Year |
Place of Origin: | Henan China | Brand Name: | SWET |
---|---|---|---|
Certification: | ISO9001 | Model Number: | YDZ0.5-0.7-S-3013 |
Detail Information |
|||
Rated Evaporation: | 500 Kg/h | Weight: | 2700 Kg |
---|---|---|---|
Preset Pressure: | 0.7mpa | Model Number: | YDZ0.5-0.7-S-3013 |
Dimensions(Length × Width × Height)mm: | 2200*1500 *2500 | Style: | Horizontal |
Highlight: | biomass steam boiler,industrial biomass boiler |
Product Description
Product description
1. Crossflow structure, advanced level in domestic and international.
2. After 4 or 5 minutes ignition, it can get enough pressured steam.
3. Automatically control combustion, steam pressure and water level, ensure safe and economical operation.
4. Combustion gas flowing among conduit group at a high speed that assures high quality heat convection and transfer and high effect heat absorption.
5. This section of the steam generator installed just connected to the water pipes, sewage pipes, steam pipes and exhaust pipes can be, waste heat recovery tank can be configured according to the needs of the company can be detailed installation of the video guidance of drawings at a glance, and readily available Install consulting services.
Biomass steam boiler features:
1. Efficient and energy-saving: the use of three return design, the use of low cost, lower than the fuel (gas) to reduce operating costs of 30-70%
2. High thermal efficiency: semi-gasification combined with tangential cyclone air distribution design, the formation of fire-burning, the combustion rate of 90% or more; with waste heat recovery flue gas
3. System, using advanced glass fiber cotton multi-layer insulation, heat loss, low energy consumption, high thermal efficiency
4. Low-carbon environment: semi-gas combustion plus rear dust, soot, sulfur and nitrogen emissions low, low carbon dioxide emissions
Generator product model | LHS0.1-0.7-S | LHS0.15-0.7-S | LSS0.2-0.7-S | LSS0.3-0.7-S | LSS0.4-0.7-S | YDZ0.5-0.7-S |
preset pressure(Mpa) | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 |
Rated steam temperature(℃) | 170 | 170 | 170 | 170 | 170 | 170 |
Rated evaporation(Kg/h) | 100 | 150 | 200 | 300 | 400 | 500 |
Maximum fuel consumption(Kg/h) | 17 | 25 | 34 | 47 | 65 | 80 |
Thermal efficiency | 85% | 85% | 85% | 85% | 85% | 85% |
weight(Kg) | 600 | 700 | 1020 | 1150 | 1600 | 2700 |
Dimensions(Length × width × height)mm |
1600*900 *1900 |
1600*900 *1900 |
2150*950 *2400 |
2000*1400 *2700 |
2700*1100 *2450 |
2200*1500 *2500 |
