1.25 MPa Automatic Industrial Boilers And Heat Recovery Steam Generators

Product Details:
Place of Origin: Henan China
Brand Name: SWET
Certification: ISO9001
Model Number: Q19/1100-6-1.25-0017
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiation
Packaging Details: Standard Packaging
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Cash or on the basis of mutual agreement
Supply Ability: 200 Set/Sets Per Year

Detail Information

Flue Gas Volume: 19000m³/h Flue Gas Temperature: 1100℃
Evaporation: 6T/H Steam Pressure: 1.25MPa
Steam Temperature: Saturated Vapor Style: Vertical
High Light:

waste heat recovery boiler

,

heat recovery steam boiler

Product Description



1.25 MPa Automatic Industrial Control Flue Type Waste Heat Boiler



Product Description



1. The boiler is of outdoor arrangement, which is made of two vertical shaft type chimney flues at the front and rear parts. The front vertical shaft adopts all-suspension structure from and the walls at four sides are of membrane wall. Arranged from the top to bottom are primary air chamber, air distribution device, combustion chamber dense phase zone, dilute phase zone, generating tube bank, high temperature and low temperature super-heater and flue gas diversion chamber.



2. The vertical shaft at the rear part is of supporting structure, in which coal economizer and steel pipe horizontal air pre-heater are installed. The two vertical shafts are connected by two cyclone separators in parallel arrangement, with the bottom parts of the separator connected with feed back devices. Both the separator and feed back device are supported by steel structure beams.



3. We can manufacture the waste heat recovery boiler according to different clients' requirements in different industrial fields. Our manufacturer has owned strong fabricating capability, and we can meet the needs from the clients in different industries. We are very familiar with providing electric furnace flue, conveyor flue of steel mill, catalysing and cracking heat recovery boiler, sulfur heat recovery boiler, Alkali recovery boiler, pyrites acid-making heat recovery boiler, gas turbine combined cycle heat recovery boiler, coke dried quenching heat recovery boiler, etc.



Technical Parameters



Model

Flue gas volume

Flue gas temperature

Evaporation

Steam pressure

Steam temperature

Unit

m³/h

t/h

MPa

Q19/1100-6-1.25

19000

1100

6

1.25

Saturated Vapor

Q29/800-10-2.5

29000

800

10

2.5

Saturated Vapor

QZ9/1150-4-0.4

9000

1150

4

0.4

Saturated Vapor

Q15-420-8-2.4/350

15000

420

8

2.4

350

Q16-740-5-3.82/440

16000

740

5

3.82

440

Q120/900-82-3.82/450

120000

900

82

3.82

450

QC28/720-9-1.0

12000

720

9

1.0

Saturated Vapor

QC18/1200-4-1.25/220

18000

1200

4

1.25

220

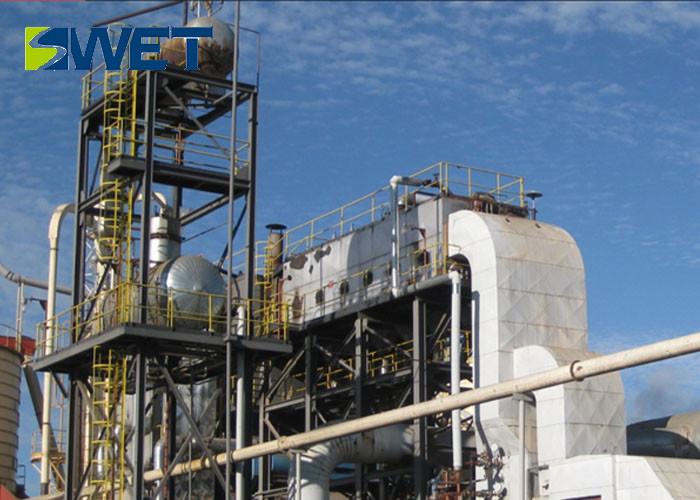

1.25 MPa Automatic Industrial Boilers And Heat Recovery Steam Generators 0
