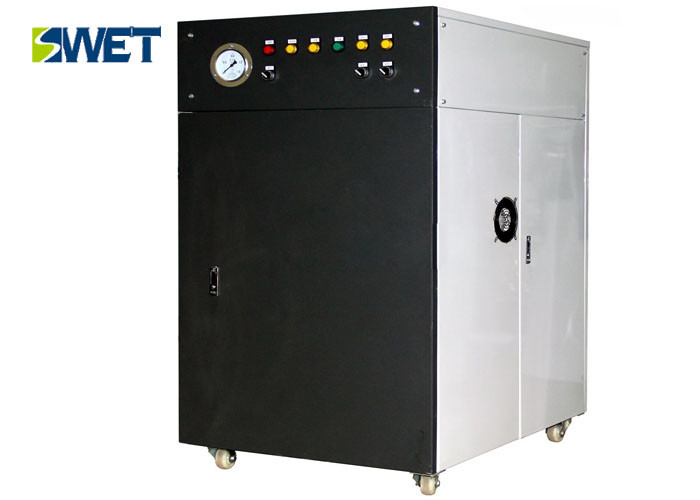

Energy Saving Portable Boiler , No Pollution 100 Kg/H-1000KG/H Industrial Steam Boiler
Contact Person : Swet Lee
Phone Number : +8618736903078
WhatsApp : +8618736903078
Minimum Order Quantity : | 1 Set/Sets | Price : | Negotiation |
---|---|---|---|
Packaging Details : | The boiler in nude package, but covered with water-proof covering, accessories in plywood case or tin case, this can be changed as your requirements | Delivery Time : | 25-30 work days |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash or on the basis of mutual agreement | Supply Ability : | 1500 Set/Sets Per Year |
Place of Origin: | Henan China | Brand Name: | SWET |
---|---|---|---|
Certification: | ISO9001 | Model Number: | LDR0.1 -0.7-3014 |
Detail Information |
|||
Rated Evaporation: | 100 Kg/h | Input Power: | 72 KW |
---|---|---|---|
Output Current: | 113 A | Rated Voltage: | 380 V |
Model: | LDR0.1 -0.7-3014 | Dimensions Length × Width × Height: | 880×870 ×1300 Mm |
Weight: | 280 Kg | Color: | Customer Requirements |
Highlight: | industrial electric steam generator,electric heating steam boiler |
Product Description
Product description
1. The product is equipped with safety valve, pressure controller and other overpressure protection verified by the boiler inspection to prevent the boiler from exploding due to excessive pressure
2. At the same time, it has low water level protection, and the boiler will stop working automatically when the water supply is stopped
3. Prevent the boiler from burning and causing the electric heating element to damage or even burn out
Product advantages
1. Small scientific design
2. Unique internal structure design
3. One-stop electronic control system
4. Use of electricity is more environmentally friendly and more economical
Application
Electric steam boiler mainly for the canteen, dry cleaners, steam room, steam iron to provide the necessary drying steam, in food plants, soy products factory, garment factories are more commonly used.
Product parameters
model |
LDR0.004 -0.4 |
LDR0.013 -0.7 |
LDR0.024 -0.7 |
LDR0.035 -0.7 |
LDR0.05 -0.7 |
LDR0.08 -0.7 |
LDR0.1 -0.7 |
LDR0.15-0.7 | |
project | unit | ||||||||
Rated evaporation | Kg/h | 4 | 13 | 24 | 35 | 50 | 80 | 100 | 150 |
Fixed work stress | Mpa | 0.4 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 |
input power | KW | 3 | 9 | 18 | 24 | 36 | 54 | 72 | 108 |
Output current | A | 6 | 14 | 27 | 41 | 55 | 79 | 113 | 164 |
Rated voltage | V | 220/380 | 380 | 380 | 220/380 | 220/380 | 380 | 380 | 380 |
Intake pipe diameter | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
Main steam |
DN | 15 | 15 | 15 | 15 | 15 | 15 | 20 | 25 |
Safetyvalve caliber | DN | 15 | 15 | 15 | 15 | 15 | 15 | 40 | 25 |
Dimensions |
mm |
680×520 ×850 |
750×550 ×920 |
850×600 ×1000 |
850×600 ×1000 |
900×650 ×1150 |
900×650 ×1200 |
880×870 ×1300 |
1010×740 ×1210 |
weight | Kg | 50 | 79 | 92 | 118 | 132 | 150 | 280 | 160 |
