300kg 0.7Mpa 1.0Mpa 1.2Mpa industrial heating gas fired steam boiler
Contact Person : Swet Lee
Phone Number : +8618736903078
WhatsApp : +8618736903078
| Minimum Order Quantity : | 1 SET | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | The 300kg steam boiler bady with plywood packaging. | Delivery Time : | 10 WORKING DAY |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 3000 SETS PER YEAR |
| Place of Origin: | HENAN ,CHINA | Brand Name: | SWET |
|---|---|---|---|
| Certification: | ISO 9001 | Model Number: | LSS-6002 |
|
Detail Information |
|||
| Product Name: | 300kg Gas Steam Boiler | Item: | LSS-6002 New Type Gas Steam Boiler |
|---|---|---|---|
| Design Fuel: | Gas/oil | Color: | Customer's Requirement |
| Warranty: | 12 Months | The Biggest Fuel Consumption(Nm3/h): | 22.3 |
| Rated Evaporation (kg/h): | 300 | Rated Steam Temperature(℃): | 170 |
| Rated Steam Pressure(Mpa): | 0.7 | Burner: | Italy Riello |
| Highlight: | commercial steam boiler,natural gas fired steam generator |
||
Product Description
1. The steam boiler/generator built-in steam separator solves the problem of steam with water to ensure the quality of the steam.
2. The steam boiler/generator full automatic control. Just connect the water and electricity; press the key, then the boiler will automatically enter the automatic running, safer and more convenient.
3. The steam boiler/generator Easy installation; no need to ask for a professional installation personnel to install, meanwhile saving a lot of installation materials.
Gas steam boiler technical parameters:
| Gas steam boiler technical parameter | |||||||||||||||
| Rated evaporati on | Rated pressure | Rated steam temperat ure | Feed water temperat ure | Design thermal efficienc y | Water capacit y | Steam outlet | water intake | Drain valve | Gas supply pressur e | Gas pipe diamet er | Dimensions | Shippin g weight | Full load biomass consuption | ||
| L | W | H | |||||||||||||
| Kg/h | Mpa | ℃ | ℃ | % | L | DN | DN | DN | Kpa | DN | mm | mm | mm | T | Nm³/h |
| 80 | 0.7 | 170℃ | 20℃ | 90% | 27 | 15 | 15 | 20 | 2-3.5 | 20 | 1050 | 1000 | 1500 | 0.6 | 6.5(NG) |
| 100 | 0.7 | 170℃ | 20℃ | 90% | 27 | 15 | 15 | 20 | 2-3.5 | 20 | 1150 | 1100 | 1600 | 0.5 | 8.4(NG) |
| 150 | 0.7 | 170℃ | 20℃ | 90% | 27.6 | 15 | 15 | 20 | 2-3.5 | 20 | 1250 | 1200 | 1700 | 0.7 | 11.7(NG) |
| 200 | 0.7 | 170℃ | 20℃ | 90% | 27.6 | 20 | 15 | 25 | 2-3.5 | 20 | 1600 | 1500 | 2300 | 1.2 | 15.7(NG) |
| 300 | 0.7 | 170℃ | 20℃ | 92% | 28 | 32 | 15 | 25 | 3.5-5 | 20 | 1700 | 1600 | 2300 | 1.3 | 22.3(NG) |
| 400 | 0.7 | 170℃ | 20℃ | 92% | 28.6 | 32 | 15 | 25 | 3.5-5 | 32 | 2350 | 1750 | 2200 | 2.8 | 30.5(NG) |

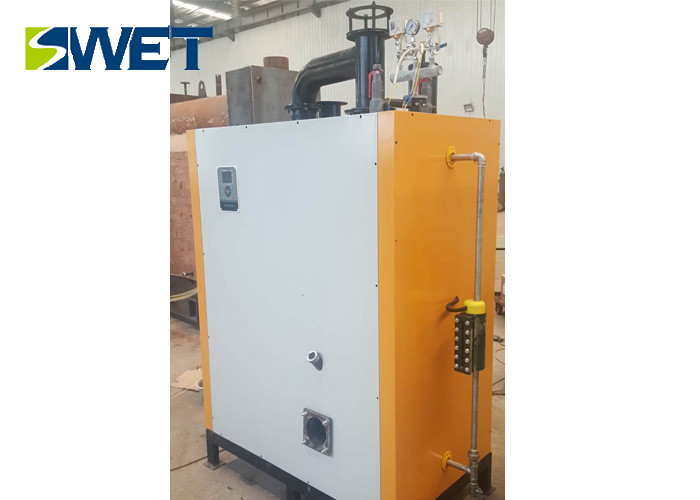

Gas steam boiler picture:
