Gas Oil Diesel 2t/H 0.7Mpa 1.0Mpa 1.2Mpa 1.6Mpa Fire Tube Consumption Steam Boiler

Minimum Order Quantity : 1 Set Price : Negotiation
Packaging Details : Wood care plus tarpaulin packaging Delivery Time : 25-30 works day
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 2000 Set Per Year
Place of Origin: Henan,China Brand Name: SWET
Certification: ISO9001 Model Number: WNG

Detail Information

Rated Capacity: 2t/h Working Pressure: 1.0/1.25MPa
Steam Temperature: 184/197/204℃ Feed Temperature: 20℃
Testing Efficiency: 95.81% Diesel Consumption: 143.26Kg/h
Gas Consumption(1350℃*50h)0.2Mpa: 163.72Nm³/h Outline Dimension: 4030*2010*2210mm
High Light:

gas fired steam boiler

,

high efficiency oil boiler

Product Description

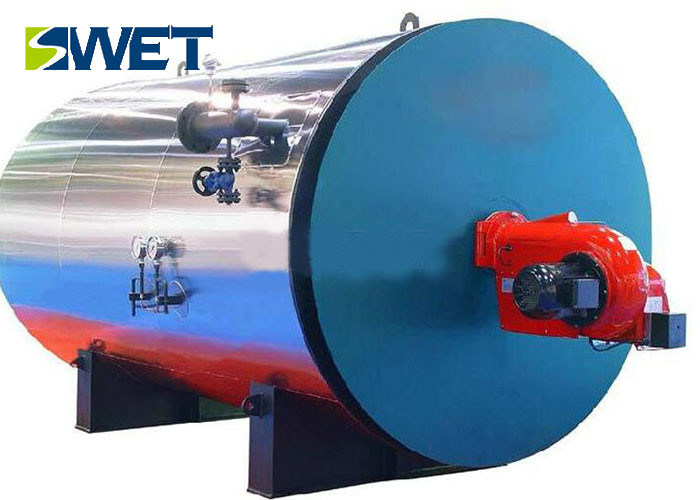

2t/H 0.7Mpa 1.0Mpa 1.2Mpa 1.6Mpa Fire Tube Gas Oil Diesel Consumption Steam Boiler



Product Description



1.The WNS horizontal automatic fuel steam boiler is a horizontal quick-loading internal combustion three-pass fire tube boiler.

2.The bias furnace bile wet back structure is adopted. The second and third return smoke pipes are flushed by the high-temperature flue gas sequentially, and then discharged into the atmosphere from the rear smoke chamber through the chimney.

3.The boiler is equipped with active front and rear smokebox covers to facilitate boiler overhaul.



Advantage



1 Boiler with light oil and natural gas as design fuel can also burn city gas or liquefied petroleum gas with wide adaptability, high efficiency and low energy consumption.

2 The boiler body adopts full butt weld wet back structure, low-profile full-wave furnace, boiler structure flexibility and heat-retractable, safe and reliable.

3 The use of 80mm thick aluminum silicate fiber insulation layer, light weight, good thermal insulation, heat loss.

4 Boiler computer control, high degree of automation, all kinds of safety protection device is complete, easy to operate, safe and reliable operation.

5 Boiler automation instrumentation and auxiliary equipment is reasonable, advanced and reliable.

6 The boiler body resistance is small, stable operation, saving power consumption, low noise.

7. Quick-mounted overall structure, small size, compact structure, easy installation.

8 There is no smoke in the boiler discharge, the emission concentration of SO2 and NOx is extremely low, and the environmental benefit is remarkable.


Technical Parameters



Model Unit WNS2-1.0(1.25)-Q(Y)
Rated capacity t/h 2
Working pressure Mpa 1.0/1.25
Steam temperature 184/197/204
Feed temperature 20
Testing efficiency 95.81
Diesel consumption Kg/h 143.26
Gas consumption Nm³/h 163.72
Outline dimension mm(L*W*H) 4030*2010*2210



 Focus on the achievement of quality, Professional to create the future.



2t/h Fire tube gas  industrial steam boiler for industrial production



2t/h Fire tube gas  industrial steam boiler for industrial production
