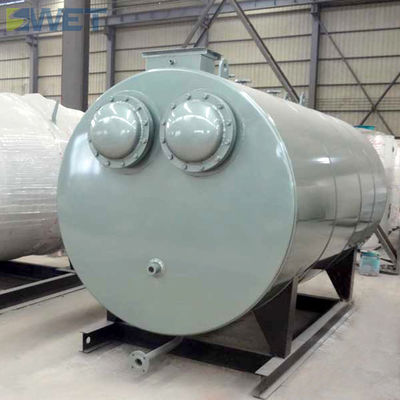

2200mm Height 1.6mpa 2000Kg/H Diesel Steam Boiler

Minimum Order Quantity : 1 Packaging Details : The boiler is covered with a waterproof film and the transport package is a wooden box.
Delivery Time : 15-30 days after payment received Supply Ability : 1500 sets per year
Place of Origin: Henan Province, China Brand Name: Swet
Certification: ISO9001 Model Number: WNS2-1.6-Y

Detail Information

Rated Evaporation: 2ton/hr (2000kgs/hr) Rated Pressure: 1.6Mpa
Rated Steam Temperature: 204℃ Thermal Efficiency: 92.6%
Length: 4600mm Width: 1900mm
Height: 2200mm Style: Horizontal
Design Fuel: Light Diesel Oil Evaporation: 140kw
Boiler Evaporation: 1200000Kcal Output: Steam
Shipping Weight: 7120kg Power Supplly: 380V 50Hz (can Be Customized)
Power Consumption: 7.0kw Exhaust Gas Temperature: 129.9 Degree Celsius
Full Load Oil Consumption: 137kg/h
High Light:

2000Kg/H Diesel Steam Boiler


2200mm Height Diesel Steam Boiler


380V Horizontal Diesel Steam Boiler

Product Description

2200mm Height 1.6mpa 2000Kg/H Diesel Steam Boiler

Large combustion chamber and increased radiant heater area
Our diesel steam boilers are equipped with a well-designed burner for full fuel combustion and increased radiant heating furnace area to reduce NOx emissions.
Advanced and rational design
Our diesel steam boiler adopts the most advanced three-way full wet back structure, threaded flue pipe structure with high quality welded joints.
Strong adaptability of the boiler to the load
The well-designed built-in vapor separator device can meet the user's requirement for high quality steam. Furnace body is easy to clean inside the furnace, maintenance and repair is extremely convenient.
2200mm Height 1.6mpa 2000Kg/H Diesel Steam Boiler
2200mm Height 1.6mpa 2000Kg/H Diesel Steam Boiler
PLC full automatic control system
PLC modular control system enhanced energy management system, offers significant advancements including many new individual monitoring points. With our optimized parameter setting ,the easy-to-use interface provides your facility with an intelligent boiler system to optimize energy and personnel management for increased productivity, efficiency and a reduced environmental impact.
2200mm Height 1.6mpa 2000Kg/H Diesel Steam Boiler
Technical parameters
Model WNS2-1.6-Y(Q)
Rated evaporation (t/h) 2.0
Rated working pressure (Mpa) 1.6
Rated steam temperature (°C) 204
Design thermal efficiency (%) 92.6
Rated oil consumption (kg/h) 137
Rated gas consumption (Nm³/h) 166
Power consumption (KW) 7.0
Applicable fuel Light diesel, Natural gas, Liquid Alcohol-based fuel
Applicable power supply (AC) 380V 50HZ
Combustion method Room combustion, Slightly positive pressure combustion
Exhaust temperature (°C) 129.9
Approx shipping weight (kg) 7120
Approx shipping size (m) 4.6*1.9*2.2
Note: Please contact us to confirm the relevant data before prefabrication, reservation and boiler room design.
Packaging & Shipping
2200mm Height 1.6mpa 2000Kg/H Diesel Steam Boiler
Production Process
2200mm Height 1.6mpa 2000Kg/H Diesel Steam Boiler
Textile industry: shrinking machine, dry cleaning machine, dryer, washing machine, dehydration machine, printing, ironing machine, iron and other equipment.
Food machinery industry: steamer, tofu machine, sterilization tank, packaging machines, paint equipment, sealing machines and other equipment.
Other industries: automotive steam cleaning industry, hotels, hotels, schools, enterprises and other hot water supply, bridges, railway concrete conservation and other industries.
2200mm Height 1.6mpa 2000Kg/H Diesel Steam Boiler
Company Information
Henan kaifeng Swet (original name Desheng) Boiler Co.Ltd was established in 1954 ,We have continued to provide customers with more than 60 years of quality service, known as the king of China's boiler.
It’s the national designated A-class boilers and D1, D2 class pressure vessel manufacturing key enterprises and has passed ISO9001 international quality management certification system certification.
It holds level 1 boiler installation permit ,National special equipment manufacturing license ,National special equipment installation remould maintenance permits and so on.
In 1979 the world's first circulating fluidized bed boiler developed by the Austrian company in Finland.
In 1987 China's first circulating fluidized bed boiler was born in our factory.
In 2016 In order to meet current emissions and reduce energy consumption requirements, our company launched efficient low-emission energy-saving circulating fluidized bed boiler, has been identified by the national institute of special equipment.
2200mm Height 1.6mpa 2000Kg/H Diesel Steam Boiler
Chinese Academy of Sciences circulating fluidized bed boiler research and development base.
China 's top ten boiler manufacturing enterprises.
Shanghai Industrial Boiler Research Institute Industrial Boiler Technology Development Relying on the unit.
North China Water Conservancy and Hydropower University teaching and research base.
The China’s first circular flow bed (CFB)boiler manufacturer.
2200mm Height 1.6mpa 2000Kg/H Diesel Steam Boiler
2200mm Height 1.6mpa 2000Kg/H Diesel Steam Boiler
2200mm Height 1.6mpa 2000Kg/H Diesel Steam Boiler.png
Pls tell us below to confirm a boiler model and offer the right boiler price:
1) What is the application of the boiler?
2) What is the capacity per hour do you need?
3) Which fuel do you want to use for your boiler, coal, biomass, gas & oil, or others?
4) What is the pressure of your boiler?
Our Service
Technical services
According to the user's technical requirements, at any time to design units user units to provide technical services.Provide detailed design and installation of technical parameters for the user unit.Providing technical services in the installation engineering for the user units and providing on-site technical support.
After installation, the boiler host can be debugged free of charge.The company is free to send experts to the boiler for the use of units of fireman on-site technical training, training content including operation, maintenance, maintenance.
Quality assurance
The design and manufacture of the products are strictly carried out in accordance with the "GB" standard and the factory quality assurance system of China, and are strictly monitored according to the national standards of China.
Provide the quality guarantee issued by the competent department to the use unit. After the product is put into operation, it can guarantee the user to achieve the required output and stable and reliable operation.
