0 5 T h Industrial Coal Wood Biomass Fired Steam Boiler For Textile Mill

Name: 0 5 T h Industrial Coal Wood Biomass Fired Steam Boiler For Textile Mill
Brand: SWET
SKU: DZH0.5-0.7-SCI
Rating: 4.7 (196 reviews)

Minimum Order Quantity :	1 Set/Sets	Price :	Negotiation
Packaging Details :	Standard Packaging	Delivery Time :	Shipped in 15 days after payment
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Cash or on the basis of mutual agreement	Supply Ability :	200 Set/Sets Per Year

Place of Origin:	Henan China	Brand Name:	SWET
Certification:	ISO9001	Model Number:	DZH0.5-0.7-SCI

Detail Information
Rated Thermal Power:	0.5t/h	Rated Steam Pressure:	0.7Mpa
Rated Steam Temperature:	170 Degrees C	Design Thermal Effidciency:	83%
Fuel:	Wood, Biomass, Coal	Ouput:	Steam
High Light:	waste heat recovery boiler , waste heat recovery steam generator

Product Description

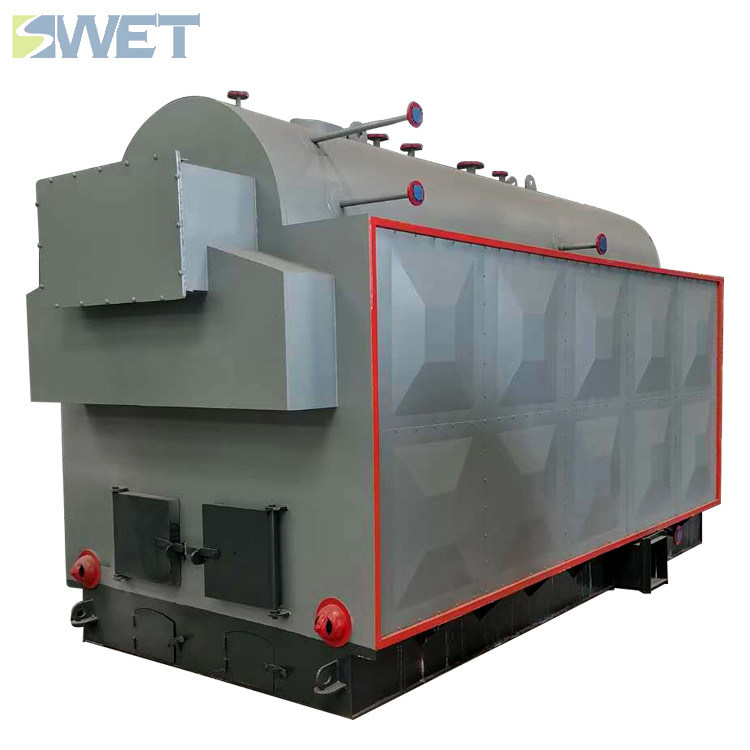

0 5 T h Industrial Coal Wood Biomass Fired Steam Boiler For Textile Mill

Our biomass steam boiler adopts advanced gasification combustion technology, which makes fuel combustion more efficient, energy-saving and environmentally friendly.

The biomass pellets used in this boiler is a new type of environmentally friendly renewable fuel with high calorific value, low cost, easy to obtain and so on. Boiler running costs are low, only 1/4 of electric boilers and 1/2 of fuel gas boilers.

Our biomass steam boiler uses a digital integrated controller that allows the user to set up automatic controls to control combustion. It has the functions of automatic ignition, automatic feeding and automatic ash cleaning.

Technical Parameters

Model	DZH0.5-0.7-SCI
Rated thermal power(t/h)	0.5
Rated working pressure (Mpa)	0.7
Rated steam temperature (°C)	170
Inlet water temperature (°C)	20
Design thermal efficiency (%)	83
Fuel consumption (Kg/h)	180
Fuel	Wood, Biomass, Coal
Output	steam
Approx weight (T)	10.6
Approx shipping size (mm)	421319602893

Process technology

Henan kaifeng Swet (original name Desheng) Boiler Co.Ltd was established in 1954 ,We have continued to provide customers with more than 60 years of quality service. We have a complete quality assurance system, and also well equipped advanced detectors in China.

We hold level 1 boiler installation permit ,National special equipment manufacturing license ,National special equipment installation remould maintenance permits and so on.

Other Products

Pls tell us below to confirm a boiler model and offer the right boiler price:

1) What is the application of the boiler?

2) What is the capacity per hour do you need?

3) Which fuel do you want to use for your boiler, coal, biomass, gas & oil, or others?

4) What is the pressure of your boiler?
