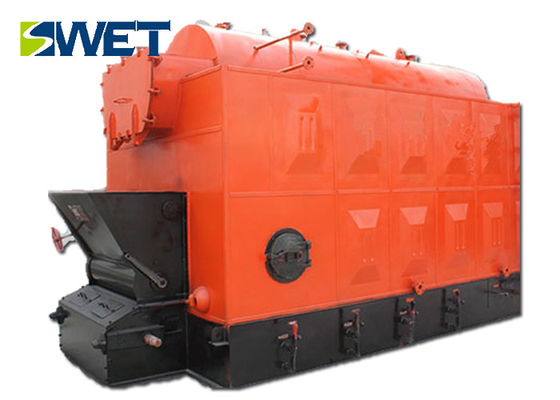

Industrial Chain Grate Steam BoilerBoiler 0.7 MPa 1.0Mpa 1.25Mpa 1.6Mpa Working Pressure
Contact Person : Swet Lee
Phone Number : +8618736903078
WhatsApp : +8618736903078
| Minimum Order Quantity : | 1 Set/Sets | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | The main part of the boiler is bare packaging and wood packaging, container or according to packaging needs. | Delivery Time : | 25-35 work days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash or on the basis of mutual agreement | Supply Ability : | 1500 Set/Sets Per Year |
| Place of Origin: | Henan China | Brand Name: | SWET |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | SZL10-1.25-T-0004 |
|
Detail Information |
|||
| Rated Evaporation: | 10t/h | Working Pressure: | 1.25MPa |
|---|---|---|---|
| Water Supply Temperature: | 104℃ | Keywords: | Chain Grate Steam Boiler |
| Steam Temperature: | 194℃ | Design Fuel: | Straw |
| Boiler Dimensions: | 8830x3180x5730mm | Thermal Efficiency: | 81% |
| Highlight: | grate fired boiler,chain grate coal fired steam boiler |
||
Product Description
Product Description
1. The main components of the chain grate steam boiler are assembled in the factory into two large pieces, that is, the upper part of the upper part (boiler body) and the big part of the lower part (chain grate). After the two pieces are closed on the construction site, only the masonry of the lower part of the furnace wall and Smoke duct, pipes, instruments, valves, slag and other devices installed.
2. Boiler soda system flow: softened water → water tank → water pump → economizer → on the drum → drop tube → header → next drum → header → riser (water wall tube) → on the drum → main steam valve.
Technical Parameters
|
Boiler type and parameter list of double boiler barrel series chain grate boiler |
|||||||
|
Boiler model |
Rated evaporation |
Working pressure |
Steam temperature |
Water supply temperature |
Exhaust temperature |
Thermal efficiency |
Boiler dimensions |
|
Unit |
t/h |
Mpa |
℃ |
℃ |
℃ |
% |
mm |
|
SZL10-1.25-T |
10 |
0.7/1.0/1.25 |
170/184/194 |
104
|
150 |
≥80 |
8830x3180x5730 |
|
SZL15-1.6-T |
15 |
1.0/1.25/1.6 |
184/194/204 |
104 |
155 |
≥80 |
14000x4174x614 |
|
SZL20-1.6-T |
20 |
1.0/1.25/1.6 |
184/194/204 |
104 |
155 |
≥80 |
15820x4620x8680 |
|
SZL25-2.5-T |
25 |
1.25/1.6/2.5 |
194/204/224 |
104 |
160 |
≥80 |
12800x6000x8420 |
|
SZL30-2.5-T |
30 |
1.25/1.6/2.5 |
194/204/224 |
104 |
160 |
≥80 |
13000x7100x9500 |
|
SZL35-2.5-T |
35 |
1.25/1.6/2.5 |
194/204/224 |
104 |
160 |
≥80 |
3000x7600x9800 |
Performance Characteristics
1. The compact structure of the boiler, covers an area of ?? less, beautiful appearance, boiler room only single layout, so less civil engineering investment.
2. The boiler is easy to operate, stable operation, heating and pressurization fast, full output, to adapt to coal wide.
