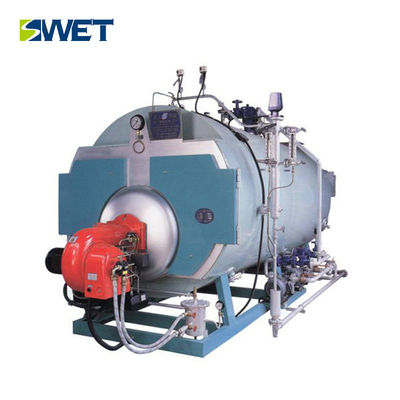

Fuel Gas 2t/H 0.7Mpa 1.0Mpa 1.2Mpa Fire Tube Industrial Steam Boiler For Paper Industry ISO9001 Approval
Contact Person : Swet Lee
Phone Number : +8618736903078
WhatsApp : +8618736903078
| Minimum Order Quantity : | 1 Set | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | Wood care plus tarpaulin packaging | Delivery Time : | 25-30 works day |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 2000 Set Per Year |
| Place of Origin: | Henan,China | Brand Name: | SWET |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | Special Shaped |
|
Detail Information |
|||
| Output: | Steam | Fuel: | City Gas / Oil |
|---|---|---|---|
| Rated Capacity: | 6t/h | Pressure: | 1.6MPa |
| Style: | Horizontal | Warranty: | 12 Months |
| High Light: | industrial gas boiler,oil fired steam boiler |
||
Product Description
Product Description
1.High Quality and Reliable Oil Gas Burner.
High combustion efficiency and environmental protection.
2.Excellent coil design.
The spiral pipes are made of small diameter multi-head steel tubes, good thermal expansibility, low stress, safe and reliable.
3.Large Diameter Furnace.
Large radiation heating area, increase thermal efficiency and reduce the NOx emission.
4.High Thermal Efficiency.
1)Adopts three pass heating system, improve the heat utilization efficiency.
2)Uses aluminium silicate board for heat preservation, high thermal shielding efficiency.
3)By equipping with economizer, make full use of the heat of flue gas.
Technical Parameters
| WNS series automatic gas (oil) steam energy saving boiler product selection form | Model | Unit | WNS6-1.25(1.6)-Q(Y) |
| Rated capacity | t/h | 6 | |
| Working pressure | Mpa | 1.25/1.6 | |
| Steam temperature | ℃ | 194/204 | |
| Feed temperature | ℃ | 105 | |
| Testing efficiency | ％ | 96.58 | |
| Diesel consumption | Kg/h | 379.32 | |
| Gas consumption | Nm³/h | 433.51 | |
| Outline dimension | mm(L*W*H) | 5470*2770*3195 |
FAQ
Q1: How to install a boiler?
A1: Swet Boiler provides completed installation drawing and operation manual, or can send engineer to your site for guiding and trainning.
Q2: How many years is the boiler’s life span
A2: The boiler is designed for at least 10 years life span, but under good maintenance, usually the boiler can use at least 15 years, Swet Boiler provide full life after-sales service to each sold boiler.
Q3: How to choose a boiler model?
A3: Confirm the type (steam or hot water), capacity, working pressure (or output temperature) and fuel(coal, biomass, gas or oil or other fuel) of the boiler, Swet Boiler will suggest a suitable model based on your usage.
Q4: How is the warranty term?
A4: If any problems caused for quality during the warranty period, the Seller will repair or replace the broken parts for free, if the problem caused from the client’s side, the Seller will help supply the spare part at lowest cost.
Focus on the achievement of quality, Professional to create the future.
