Fuel Gas 2t/H 0.7Mpa 1.0Mpa 1.2Mpa Fire Tube Industrial Steam Boiler For Paper Industry ISO9001 Approval
Contact Person : Swet Lee
Phone Number : +8618736903078
WhatsApp : +8618736903078
| Minimum Order Quantity : | 1 Set/Sets | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | The boiler in nude package, but covered with water-proof covering, accessories in plywood case or tin case, this can be changed as your requirements | Delivery Time : | 25-30 work days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram，Cash or on the basis of mutual agreement | Supply Ability : | 1500 Set/Sets Per Year |
| Place of Origin: | Henan China | Brand Name: | SWET |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | WNS6-1.25-Y、Q-3015 |
|
Detail Information |
|||
| Rated Evaporation: | 6 T / H | Rated Working Pressure: | 1.25/1.6 MPa |
|---|---|---|---|
| Rated Steam Temperature: | 194/204℃ | Feed Water Temperature: | 105 ℃ |
| Keywords: | Gas Steam Boiler | Model: | WNS6-1.25-Y、Q-3015 |
| High Light: | industrial biomass boiler,industrial gas boiler |
||

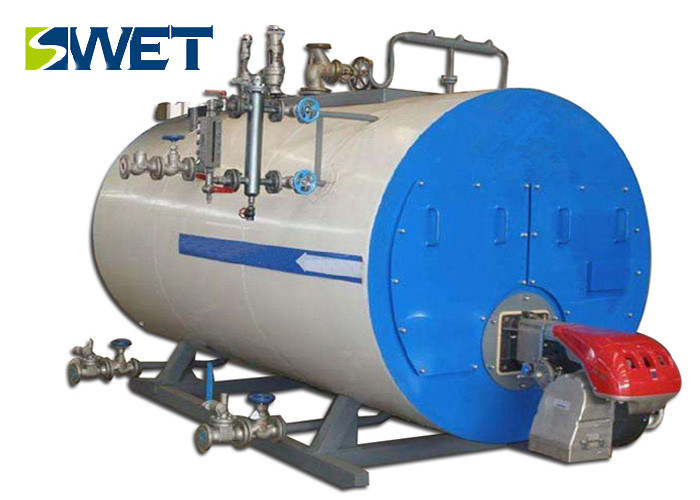

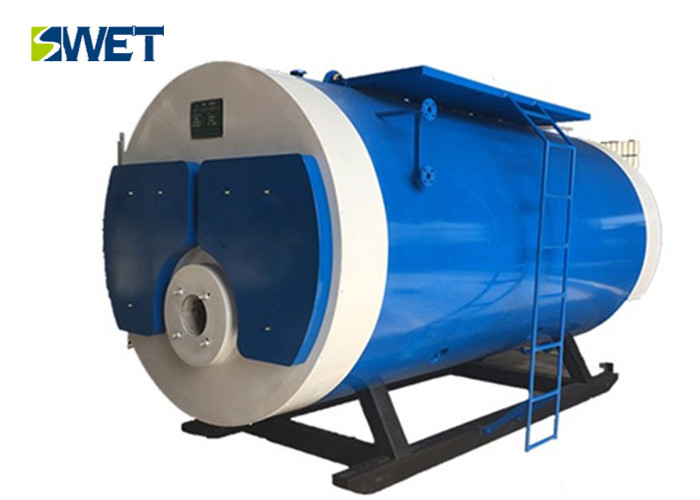

Product Description
Product description
1. The series of gas steam boilers equipped with imported brand-name burners, according to different fuel selection of different burners, wide adaptability.
2. Among them, Baltur's GI 1000 LXME MB burner was selected as the gas type, and their main pipe fittings such as quick-break valves, filters, pressure regulating valves and leak detection devices were fully imported.
3. The performance was stable and reliable. Light oil selection GI 1000 DSPG MB.
Product advantages
1. 100% corrugated furnace and spirally corrugated tube, can absorb flame heat effectively, thermal efficiency can be more than 96%.
2. The gas steam boiler has high and low water level alarm and low water level chain protection, steam over-pressure alarm and chain protection
Specification
| WNS series of automatic gas (oil) steam energy-saving boiler product selection table | |||||||
| Model | Rated evaporation | Work pressure | Steam temperature | Feed water temperature | Air consumption | Test efficiency | Transport dimensions |
| Unit | t/h | MPa | ℃ | ℃ | Nm³/h | % | mm |
| WNS20-2.5-Q(Y) | 20 | 2.5 | 226 | 105 | 1407.5 | 97.62 | 8660x3520x4831 |
| WNS20-1.25(1.6)-Q(Y) | 20 | 1.25/1.6 | 194/204 | 105 | 1459 | 97.51 | 8870x3550x3750 |
| WNS15-1.0(1.25)(1.6)-Q(Y) | 15 | 1.0/1.25/1.6 | 184/194/204 | 105 | 1126 | 97.2 | 7450x3520x4090 |
| WNS10-1.25(1.6)-Q(Y) | 10 | 1.25/1.6 | 194/204 | 105 | 837.25 | 96.75 | 6370x2812x3514 |
| WNS8-1.25(1.6)-Q(Y) | 8 | 1.25/1.6 | 194/204 | 105 | 659.25 | 96.7 | 6000x2920x3430 |
| WNS6-1.25(1.6)-Q(Y) | 6 | 1.25/1.6 | 194/204 | 105 | 433.51 | 96.58 | 5470x2770x3195 |
| WNS5-1.25(1.6)-Q(Y) | 5 | 1.25/1.6 | 194/204 | 20 | 409.33 | 96.48 | 5160x2410x3015 |
Related Products
Our main products including
1. circular flow bed (CFB)boiler ,gas boiler,coal boiler,biomass boiler,oil boiler
2. power plant boiler , energy-saving boiler,solider waste boiler, high-efficiency boiler
3. electric hot water boiler,high-pressure boiler,fully automatic control boiler
