WNS1.4 MW gas oil fired hot water boiler for industrial production

Minimum Order Quantity : 1 Set Price : Negotiation
Packaging Details : Wood care plus tarpaulin packaging Delivery Time : 25-30 works day
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 20000 Ton Per Year
Place of Origin: Henan,China Brand Name: SWET
Certification: ISO9001 Model Number: WNS

Detail Information

Rated Capacity: 1.4MW Working Pressure: 0.7(1.0)Mpa
Steam Temperature: 95(115)℃ Feed Temperature: 20℃
Testing Efficiency: 95.52% Diesel Consumption: 138kg/h
Gas Consumption: 150Nm3/h Outline Dimension: 3270*1850*1930mm
High Light:

gas fired steam boiler


oil hot water boiler

Product Description

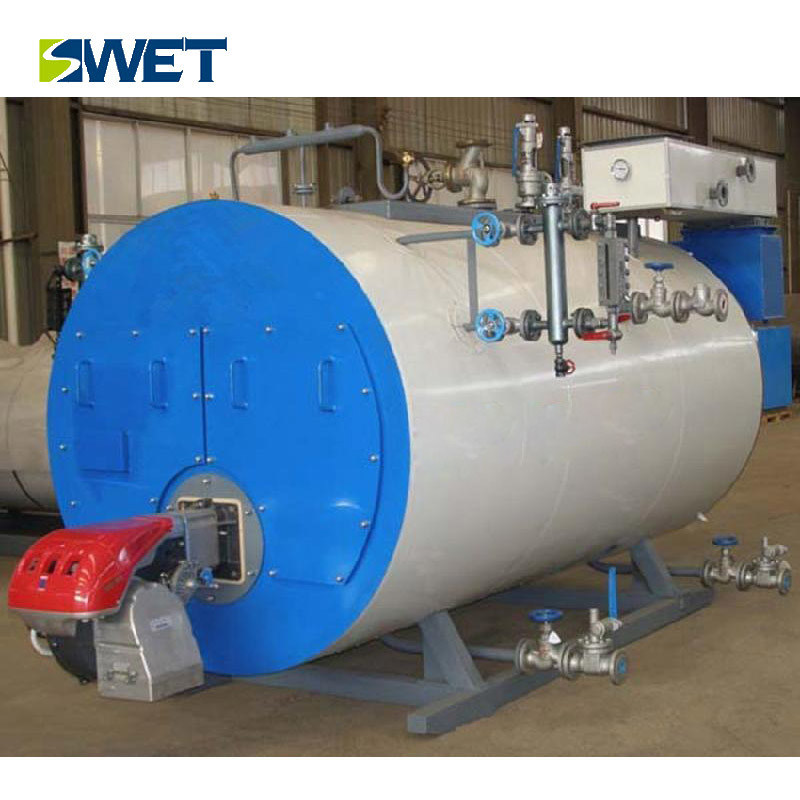

WNS1.4 MW gas oil fired hot water boiler for industrial production


Product Description


  WNS series hot water boiler adopts the most sophisticated three returns all wet back structure,thread smoke tube structure weld joint with high quality.

Reasonable boiler combustor design, suitable for different fuels such as diesel, natural gas, town gas and mazout, the fuels can burn completely and increasing the radiation heating furnace area,reducing the NOX emissions.

100% corrugated furnace and spirally corrugated tube, can absorb flame heat effectively, thermal efficiency can be more than 96%.


Key Features


The series boiler is three-return fire tube hot water boiler.
Atmosphere through three-return smoke tube, smoke chamber.
It equipped with good performance burner and advanced techniques
Simple operation, easy installation, high efficiency, less pollution and noise, etc
It is widely used for factory, hotel, hospital, office building, etc

Technical Parameters


Model Unit WNS1.4
Rated capacity MW 1.4
Working pressure Mpa 0.7(1.0)
Steam temperature 95(115)
Feed temperature 20
Testing efficiency 95.52
Diesel consumption Kg/h 138.34
Gas consumption Nm³/h 158.1
Outline dimension mm(L*W*H) 3270*1850*1930



Factory Photo


WNS1.4 MW gas oil fired hot water boiler for for industrial production
