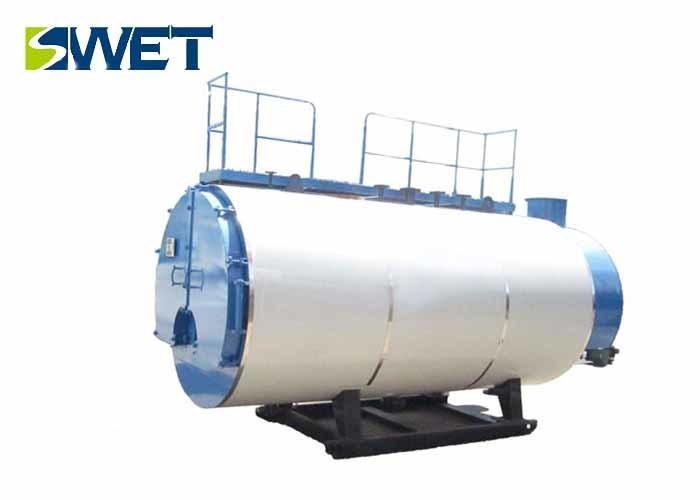

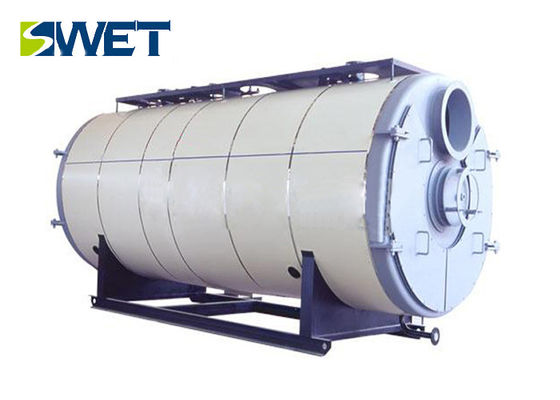

300kg 0.7Mpa 1.0Mpa 1.2Mpa industrial heating gas fired steam boiler
Contact Person : Swet Lee
Phone Number : +8618736903078
WhatsApp : +8618736903078
| Minimum Order Quantity : | 1 Set/Sets | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | The boiler in nude package, but covered with water-proof covering, accessories in plywood case or tin case, this can be changed as your requirements | Delivery Time : | 25-30 work days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram，Cash or on the basis of mutual agreement | Supply Ability : | 1500 Set/Sets Per Year |
| Place of Origin: | Henan China | Brand Name: | SWET |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | WNS2-1.25-Y、Q-3012 |
|
Detail Information |
|||
| Rated Evaporation: | 10 T / H | Rated Working Pressure: | 1.25 MPa |
|---|---|---|---|
| Rated Steam Temperature: | 193.3 ℃ | Feed Water Temperature: | 20 ℃ |
| Keywords: | Gas Steam Boiler | Model: | WNS2-1.25-Y、Q-3012 |
| Testing Efficiency: | 96.75 % | ||
| High Light: | industrial biomass boiler,oil fired steam boiler |
||
Product Description
Product description
1. The series of boilers for the fast-loading horizontal internal combustion three back wet back fire tube structure.
2. The furnace with low profile is arranged in the center of the furnace. The shell and the tube plate, the furnace tube and the wet-smoke tube plate are all butt-welded. In order to restrain the generation of NOx, a lower furnace volume heat load .
3. Boiler installed three pressure controller, through the computer control system to achieve automatic replenishment and overpressure shutdown protection, in addition to two safety valves can play a role in pressure relief.
4. The boiler body is provided with a manhole and three hand holes, the tail also set a check, view fire, explosion-proof door in one, easy to check and clean.
Product advantages
1. Gas steam boiler to light oil and natural gas for the design of fuel, you can also burn city gas or liquefied petroleum gas, fuel adaptability, energy efficient, low operating costs.
2. Gas steam boiler body resistance is small, stable operation, saving power consumption, low noise.
3. Gas steam boiler automation instrumentation and auxiliary equipment is reasonable, advanced and reliable
Specification
| WNS series of automatic gas (oil) steam energy-saving boiler product selection table | |||||||
| Model | Rated evaporation | Work pressure | Steam temperature | Feed water temperature | Air consumption | Test efficiency | Transport dimensions |
| Unit | t/h | MPa | ℃ | ℃ | Nm³/h | % | mm |
| WNS20-2.5-Q(Y) | 20 | 2.5 | 226 | 105 | 1407.5 | 97.62 | 8660x3520x4831 |
| WNS20-1.25(1.6)-Q(Y) | 20 | 1.25/1.6 | 194/204 | 105 | 1459 | 97.51 | 8870x3550x3750 |
| WNS15-1.0(1.25)(1.6)-Q(Y) | 15 | 1.0/1.25/1.6 | 184/194/204 | 105 | 1126 | 97.2 | 7450x3520x4090 |
| WNS10-1.25(1.6)-Q(Y) | 10 | 1.25/1.6 | 194/204 | 105 | 837.25 | 96.75 | 6370x2812x3514 |
| WNS8-1.25(1.6)-Q(Y) | 8 | 1.25/1.6 | 194/204 | 105 | 659.25 | 96.7 | 6000x2920x3430 |
| WNS6-1.25(1.6)-Q(Y) | 6 | 1.25/1.6 | 194/204 | 105 | 433.51 | 96.58 | 5470x2770x3195 |
| WNS5-1.25(1.6)-Q(Y) | 5 | 1.25/1.6 | 194/204 | 20 | 409.33 | 96.48 | 5160x2410x3015 |
| WNS4-1.0(1.25)(1.6)-Q(Y) | 4 | 1.0/1.25/1.6 | 184/197/204 | 20 | 334.23 | 96.3 | 4880*2710*2600 |
| Performance features: symmetrical furnace, uniform distribution, good cooling, sufficient combustion, long service life, stable output | |||||||
CASE
1. 3 sets gas fired steam boiler for Canada textile mill,10t/h steam capacityand 1.6Mpa working pressure
2. WNS series Gas Fired Condensing Steam Boiler For Mongolia food packaging company
steam capacity: 6t/h, working
