Reliable Efficiency ISO9001 0.7Mpa 1.0Mpa 1.2Mpa Approval Natural Gas Fired Boiler

Minimum Order Quantity : 1 Set/Sets Price : Negotiation
Packaging Details : The boiler in nude package, but covered with water-proof covering, accessories in plywood case or tin case, this can be changed as your requirements Delivery Time : 25-30 work days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash or on the basis of mutual agreement Supply Ability : 1500 Set/Sets Per Year
Place of Origin: Henan China Brand Name: SWET
Certification: ISO9001 Model Number: WNS2-1.25-Y、Q-3007

Detail Information

Rated Evaporation: 2 T / H Rated Working Pressure: 1.0/1.25 Mpa
Rated Steam Temperature: 184/197/204℃ Feed Water Temperature: 20℃
Keywords: Gas Steam Boiler Model: WNS2-1.25-Y、Q-3007
 Gas Consumption: 163.72 Nm³/h Color: Based On Customer's Needs
High Light:

industrial biomass boiler

,

industrial gas boiler

Product Description

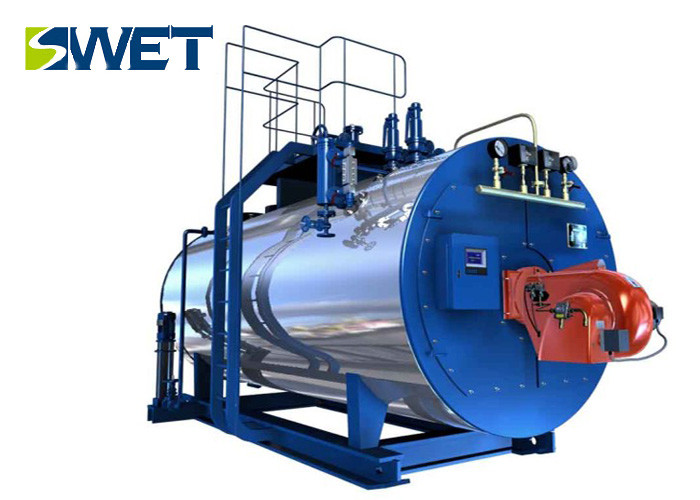

Reliable Efficiency ISO9001 0.7Mpa 1.0Mpa 1.2Mpa Approval Natural Gas Fired Boiler


Product description



1. Boiler front and rear smoke boxes are equipped with left and right symmetrical smoke box door, easy to check and clean the pipe.



2. Using a special packaging design, the boiler looks neat and beautiful.



3. This type of boiler uses a computer controller to monitor the operation of the boiler in real time, and can intelligently identify and handle the fault in real time.



4. The controller adopts the most popular modular design concept in the world today to make the control system be simple, reliable and intelligent Features; Selection of all imported industrial-grade international brand-name components, performance, safety and stability.



Product advantages



  1.  Boiler body with full butt weld wet back structure, low profile full-wave furnace, boiler structure flexibility and thermal expansion of a good, safe and reliable.



  2. 100% corrugated furnace and spirally corrugated tube, can absorb flame heat effectively, thermal efficiency can be more than 96%.



Specification



WNS series of automatic gas (oil) steam energy-saving boiler product selection table
Model Rated evaporation Work pressure Steam temperature Feed water temperature Air consumption Test efficiency Transport dimensions
Unit t/h MPa Nm³/h % mm
WNS20-2.5-Q(Y) 20 2.5 226 105 1407.5 97.62 8660x3520x4831
WNS20-1.25(1.6)-Q(Y) 20 1.25/1.6 194/204 105 1459 97.51 8870x3550x3750
WNS15-1.0(1.25)(1.6)-Q(Y) 15 1.0/1.25/1.6 184/194/204 105 1126 97.2 7450x3520x4090
WNS10-1.25(1.6)-Q(Y) 10 1.25/1.6 194/204 105 837.25 96.75 6370x2812x3514
WNS8-1.25(1.6)-Q(Y) 8 1.25/1.6 194/204 105 659.25 96.7 6000x2920x3430
WNS6-1.25(1.6)-Q(Y) 6 1.25/1.6 194/204 105 433.51 96.58 5470x2770x3195
WNS4-1.25(1.6)-Q(Y) 4 1.0/1.25/1.6 184/194/204 20 334.23 96.3 4880x2710x2600
WNS2-1.0(1.25)-Q(Y) 2 1.0/1.25 184/197/204 20 163.72 95.81 4030*2010*2210



FAQ



1.Q: Can I get guarantee of products?

A: Yes, every product is 1 year quality warranty under customer correct using the products.



2. Q: Do you have any Certificate?

A: Yes. Each of our boiler has China GB and ISO9001certificate



3. Q: How can I pay you?

A: T/T is very well used.We also accept other ways, depending on the circumstances
