WNS Series Horizontal Gas Steam Condensing Boiler Oil Fired 2000kg/Hour

Name: WNS Series Horizontal Gas Steam Condensing Boiler Oil Fired 2000kg/Hour
Brand: Swet
SKU: WNS2-1.25-YQ
Rating: 4.5 (118 reviews)

Minimum Order Quantity :	1	Packaging Details :	The boiler is covered with a waterproof film and the transport package is a wooden box.
Delivery Time :	15-30 days after payment received	Payment Terms :	T/T, Western Union
Supply Ability :	1500 sets per year

Place of Origin:	Henan Province, China	Brand Name:	Swet
Certification:	ISO9001	Model Number:	WNS2-1.25-YQ

Detail Information
Rated Thermal Power:	2000kg Per Hour	Working Pressure:	1.25Mpa
Steam Temperature:	194 Degrees C	Style:	Horizontal
Fuel:	Natural Gas	Output:	Steam
Highlight:	Horizontal Gas Steam Condensing Boiler , WNS Series Gas Steam Boiler , 2000kg/hour Oil Fired Steam Boiler

Product Description

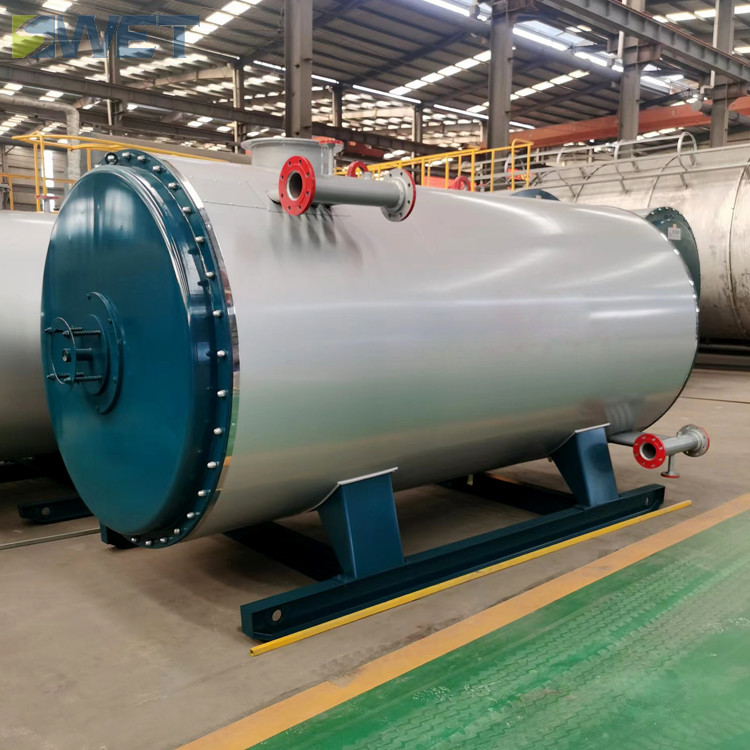

WNS Series Horizontal Gas Steam Condensing Boiler Oil Fired Steam Boiler

Our WNS series natural gas / diesel steam boiler adopts horizontal three-pass wet-back structure, The use of advanced wave type furnace structure increased the heat transfer area and satisfy the free expansion after the furnace is heated.

High security for safe operation
Anti-dry heating system with five stages water level check
Four stages pressure protection
Explosion-proof door with fire viewer
Remote monitoring system
Ensure sate operation

Applicable Industries	Manufacturing Plant, Food & Beverage Factory, Energy & Mining
Warranty of core components	12 months
Steam Production	2 ton per hour
Place of Origin	Henan, China
Warranty	12 months
Condition	New
Type	Natural Circulation
Usage	Industrial
Structure	Fire Tube
Pressure	0.5-2.0MPa
Style	Horizontal
Fuel	Natural gas, City gas, Diesel, Light oil, Heavy oiletc
Brand Name	SWET
Output	Steam
Fuel Type	Heating, chemical, food, tobacco, textile
Operation	Fully Automatic Control
Manufacturer	More than 60 years
Packaging Details	Boiler body part is in nude packing with protection film outside.
Packaging Details	Accessories are in export-use wooden box.

Technical Parameters

Model	WNS2-1.25-YQ
Rated capacity (t/h)	2
Rated working pressure (Mpa)	1.25
Rated steam temperature (°C)	194
Design thermal efficiency (%)	more than 93
Feed water temperature (°C)	20
Fuel consumption (m³/h)	157
Fuel consumption (Kg/h)	129
Applicable fuel	natural gas, diesel
Applicable power supply (AC)	380V 50HZ
Approx weight (kg/h)	8060
Approx shipping size (mm)	430019002400

Production Process

Our engineering case

Our company

Henan kaifeng Swet (original name Desheng) Boiler Co.Ltd was established in 1954 ,We have continued to provide customers with more than 60 years of quality service, known as the king of China's boiler. China's first circulating fluidized bed boiler was born in our factory.

It’s the national designated A-class boilers and D1, D2 class pressure vessel manufacturing key enterprises and has passed ISO9001 international quality management certification system certification.
