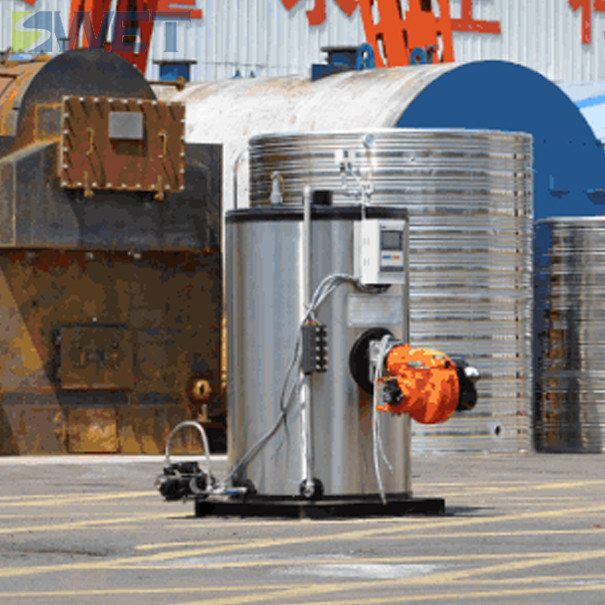

Oil Fired Diesel Steam Generator Boiler 50 - 300kg 3.1sqm

Minimum Order Quantity : 1 Packaging Details : The boiler is covered with a waterproof film and the transport package is a wooden box.
Delivery Time : 15-30 days after payment received Supply Ability : 1500 sets per year
Place of Origin: Henan Province, China Brand Name: Swet
Certification: ISO9001 Model Number: LSS-Y

Detail Information

Rated Evaporation: 100kg/h Rated Pressure: 0.2Mpa
Rated Steam Temperature: 120℃ Fuel: Diesel
Fuel Consumtiion: 6.5kg/h Thermal Efficiency: More Than 93%
Heat Transfer Area: 3.1sqm Approx Weight: 700*750*1350mm
High Light:

Diesel Oil Fired Steam Generator Boiler

,

Diesel Steam Generator Boiler 300kg

,

3.1 sqm Diesel Steam Generator Boiler

Product Description

50-300kg Diesel Oil Fired Steam Generator Boiler

Full automatic control. Equipped with original combustion equipment, the work is stable and reliable.
Increase the heating surface and make the boiler be more efficient. The heating is uniform, the steam quality is good, the steam pure temperature is high, and the application range is wide. Full automatic interlock protection program, has the protection function of water shortage, overpressure, over temperature, gas leakage, flame out, electric leakage, and phrase-lacking or overloading of motor, etc.
Reliable boiler auxiliaries and multiple safety protection devices, such as pressure controller, water level alarm, safety valve, etc.
Adopt the latest boiler technology, long working life, low maintenance fee.
50-300kg Diesel Oil Fired Steam Generator Boiler
Technical parameters
Item
LSS0.05-Y
LSS0.1-Y
LSS0.2-Y
LSS0.3-Y
Rated evaporation
Kg/h
50
100
200
300
Rated pressure
Mpa
0.09/0.4
0.09-0.4
0.09-0.4
0.09
Rated steam temperature
120/150
120-150
120-150
120
Inlet water temperature
20
20
20
20
Design thermal efficiency
%
≥93
≥93
≥93
≥93
Heat transfer area
1.8
3.1
5.7
9.6
Fuel consumtiion
kg/h
4
6.5
14
19
Power consumption
kw
0.65
0.66
0.75
0.9
Applicable fuel
-
diesel
diesel
diesel
diesel
Approx dimensions
L
mm
600
700
800
820
W
mm
650
750
900
920
H
mm
1250
1350
1500
2100
Approx shipping weight
Kg
280
340
460
810
Application area
Textile industry: shrinking machine, dry cleaning machine, dryer, washing machine, dehydration machine, printing, ironing machine, iron and other equipment.
Food machinery industry: steamer, tofu machine, sterilization tank, packaging machines, paint equipment, sealing machines and other equipment.
Other industries: automotive steam cleaning industry, hotels, hotels, schools, enterprises and other hot water supply, bridges, railway concrete conservation and other industries.
