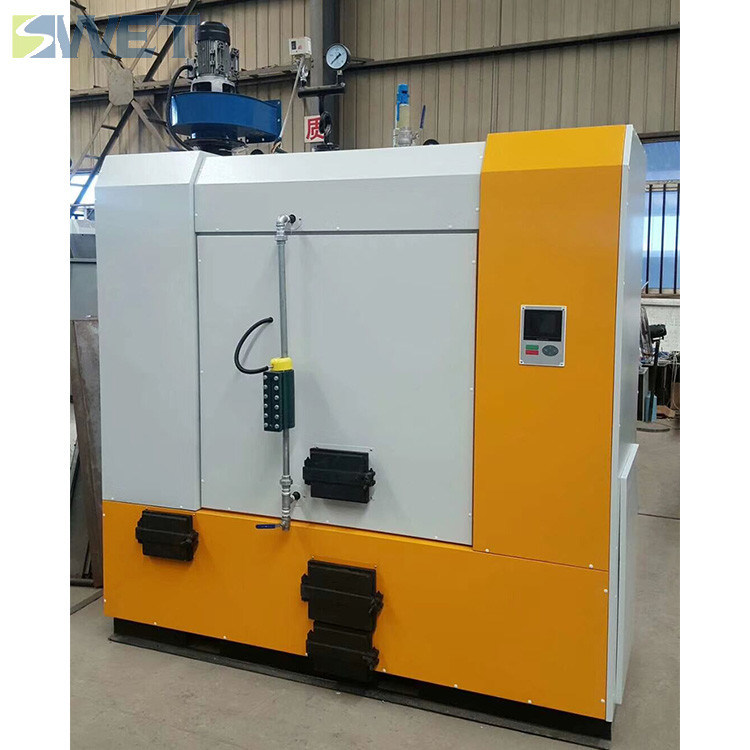

Vertical 700kg/H Biomass Pellets Wood Steam Boiler For Hotel

Name: Vertical 700kg/H Biomass Pellets Wood Steam Boiler For Hotel
Brand: SWET
SKU: YDZ0.3/0.4/0.5/0.6/0.7-0.7-S
Rating: 4.9 (196 reviews)

Minimum Order Quantity :	1 Set/Sets	Packaging Details :	The boiler in nude package, but covered with water-proof covering, accessories in plywood case or tin case, this can be changed as your requirements
Delivery Time :	25-30 work days	Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram，Cash or on the basis of mutual agreement
Supply Ability :	1000 Set/Sets Per Year

Place of Origin:	Henan Province, China	Brand Name:	SWET
Certification:	ISO9001	Model Number:	YDZ0.3/0.4/0.5/0.6/0.7-0.7-S

Detail Information
Boiler Capacity:	300kg-700kg	Working Pressure:	0.7Mpa
Steam Temperature:	171C	Ourput:	Steam
Fuel:	Biomass Pellets, Wood
Highlight:	Biomass Pellets Wood Steam Boiler , 700kg/H Wood Steam Boiler , Hotel Biomass Wood Steam Boiler

Product Description

300kg 400kg 500kg 600kg 700kg steam boiler for hotel

The inner tank adopts the international advanced three-return vertical water pipe tubular structure, the flue gas and the fin tube fully flush heat exchange, and the thermal efficiency reaches over 92%.

The boiler operating system is fully automatic, and all operating states can be seen at a glance in the LCD screen. You can observe the burner working status, boiler water level status, current temperature, feed pump running status, fault alarm status, etc. in the display, so that you can use it more safely.

Equipped with multiple interlocking protection devices such as safety valve, pressure controller and water level control protector, it is absolutely safe and reliable.

The unique design of small water volume and large steam enthalpy allows you to obtain steam in the shortest time, with built-in steam-water separation device to ensure high-drying and high-quality steam.

Technical parameters

Fuel Cost analysis(Take 100 kg per hour as an example)
Equipment selection	Steam volume	Energy consumption	Unit Price	Operating costs
Electrothermal steam boiler	100kg	72 kw/h	0.08 USD/kw	10.91 USD
Fuel steam boiler	100kg	7 kg/h	0.53 USD/kg	7.42 USD
Gas steam boiler	100kg	8 m³/h natural gas	0.34 USD/m³	5.45 USD
Biomass steam boiler	100kg	20 kg/h wood pellet	0.08 USD/kg	3.03 USD

Biomass steam boiler specifications
Rated evaporation	Rated pressure	Rated steam tempe rature	Feed water temper ature	Design thermal efficiency	Water capacity	Steam outlet	water intake	Drain valve	Dimensions			Shipping weight	Full load biomass consumption
Rated evaporation	Rated pressure	Rated steam tempe rature	Feed water temper ature	Design thermal efficiency	Water capacity	Steam outlet	water intake	Drain valve	L	W	H	Shipping weight	Full load biomass consumption
Kg/h	Mpa	℃	℃	%	L	DN	DN	DN	mm	mm	mm	T	kg/h
700	0.7	170	20	93%	<29	32	25	25	2500	1800	2600	4.1	108
600	0.7	170	20	93%	<29	32	25	25	2500	1800	2600	4	101
500	0.7	170	20	93%	<29	32	25	25	2500	1700	2600	4	77
400	0.7	170	20	93%	<29	32	25	25	2400	1700	2100	3.2	62
300	0.7	170	20	93%	<29	25	25	25	2400	1700	2100	3	46

Rapid steam generation in five minutes, the thermal efficiency can reach more than 90%, the pressure is stable, and the running cost is low
Low noise, low concentration of smoke and dust, no black smoke, fully in line with national first-class regional emission standards, environmentally friendly and reliable.
Fully automatic control system with automatic high and low water level protection, saving manpower.

The production process of our boiler

Application area

For food industry: food factory, beverage factory, bakery, high temperature milk sterilization, steamed soy milk, steamed steamed buns.

For pharmaceutical industry: hospital disinfection, hospital canteen, hospital bath, pharmaceutical equipment heating, cooking medicine.

For biological equipment industry: sterilizer, school laboratory, thermal test.
