Product Description

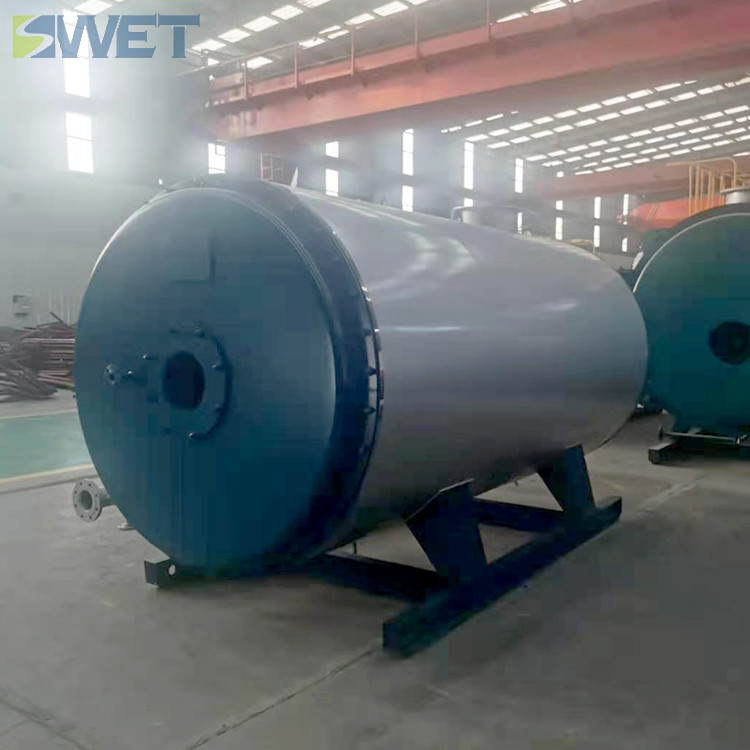

1000kg/h 700kw 15 bar high efficiency industrial natural gas boiler
WNS series steam boiler adopts the most sophisticated three returns all wet back structure,thread smoke tube structure weld joint with high quality.The main body is a shell-type full wet back and three-pass pyrotechnic pipe structure. The flame burns in a large combustion chamber with slight positive pressure, and the combustion is sufficient, the furnace heat load is low, and the emissions of harmful substances SOX and NOX are small.
The structure of the corrugated furnace and the threaded smoke tube not only improves the strength and strengthens the heat transfer effect, but also satisfies the needs of thermal expansion of each part.
The boiler water volume and steam space are large, and the load adjustment range is large.
Reasonable design of the internal device to ensure high-grade steam quality.
Technical parameters
| Model |
WNS1-1.5-Q |
| Rated evaporation (t/h) |
1 |
| Rated working pressure (Mpa) |
1.5 |
| Rated steam temperature (°C) |
200 |
| Design thermal efficiency (%) |
92.3 |
| Rated gas consumption (Nm³/h) |
87 |
| Rated oil consumption (Kg/h) |
70.5 |
| Power consumption (KW) |
2.7 |
| Applicable fuel |
Light diesel, Natural gas, Liquid Alcohol-based fuel |
| Applicable power supply (AC) |
380V 50HZ |
| Combustion method |
Room combustion, Slightly positive pressure combustion |
| Exhaust temperature (°C) |
128.3 |
| Approx shipping weight (t) |
5.53 |
| Approx shipping size (mm) |
4150*1750*2050 |
Note: Please contact us to confirm the relevant data before prefabrication, reservation and boiler room design.
Packaging & Shipping
Production Process
Application
Textile industry: shrinking machine, dryer, washing machine, dehydration machine, printing, ironing machine and other equipment.
Food machinery industry: steamer, packaging machines, paint equipment, sealing machines and other equipment.
Other industries: automotive steam cleaning industry,hotels, schools, enterprises and other hot water supply and other industries.
Company Information
It’s the national designated A-class boilers and D1, D2 class pressure vessel manufacturing key enterprises and has passed ISO9001 international quality management certification system certification.
It holds level 1 boiler installation permit ,National special equipment manufacturing license ,National special equipment installation remould maintenance permits and so on.
In 1979 the world's first circulating fluidized bed boiler developed by the Austrian company in Finland. In 1987 China's first circulating fluidized bed boiler was born in our factory. In 2016 In order to meet current emissions and reduce energy consumption requirements, our company launched efficient low-emission energy-saving circulating fluidized bed boiler, has been identified by the national institute of special equipment.
China 's top ten boiler manufacturing enterprises. Chinese Academy of Sciences circulating fluidized bed boiler research and development base.
