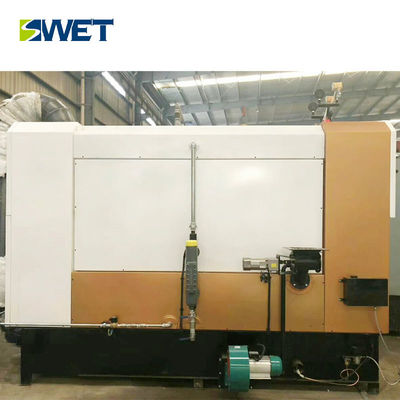

100kg/H - 3000kg/H Wood Biomass Industrial Steam Boiler
Contact Person : Swet Lee
Phone Number : +8618736903078
WhatsApp : +8618736903078
Minimum Order Quantity : | 1 SET | Price : | Negotiation |
---|---|---|---|
Packaging Details : | The 500kg steam boiler bady with plywood packaging. | Delivery Time : | 10 WORKING DAY |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 3000 SETS PER YEAR |
Place of Origin: | HENAN,CHINA | Brand Name: | SWET |
---|---|---|---|
Certification: | ISO9001 | Model Number: | LSS |
Detail Information |
|||
Product Name: | Fully Automatic 600kg Induction Heating Portable Steam Boiler For Greenhouse | Item: | YDZ- Biomass Steam Boiler |
---|---|---|---|
Design Fuel: | Biomass | Color: | Customer's Requirement |
Warranty: | 12 Months | Thermal Efficiency: | Over 92% |
The Biggest Fuel Consumption(Nm3/h): | 70 | Rated Evaporation (kg/h): | 500kg |
Rated Steam Temperature(℃): | 170 | Rated Steam Pressure(Mpa): | 0.7 |
Size: | 3200x1500x2100mm | Weight: | 3300kg |
Highlight: | oil steam boiler,industrial electric steam boiler |
Product Description
1.The inner tank adopts the international advanced three-return vertical water pipe tubular structure, the flue gas and the fin tube fully flush heat exchange, and the thermal efficiency reaches over 92%.
2. The boiler operating system is fully automatic, and all operating states can be seen at a glance in the LCD screen. You can observe the burner working status, boiler water level status, current temperature, feed pump running status, fault alarm status, etc. in the display, so that you can use it more safely.
3. Equipped with multiple interlocking protection devices such as safety valve, pressure controller, water level control protector, absolutely safe and reliable.
4. The unique design of small water volume and large steam enthalpy allows you to obtain steam in the shortest time, with built-in steam-water separation device to ensure high-drying and high-quality steam.
600kg induction heating portable steam boiler steam boiler core advantages:
1.Biomass pellet steam boiler fuel is a renewable green energy source with a wide range of sources because it is derived from biomass energy, it is also environmentally friendly.
2.The widespread use of biomass pellet steam boiler also reduces the reliance on fossil energy.
3. Easy operation, stable operation, rapid steam generation, rapid steam generation within 5 minutes,high working efficiency and wide application.
The 600kg induction heating portable steam boiler production process:
the induction heating portable steam boiler boiler application area:
Application field description:
1. For food industry: food factory, beverage factory, bakery, high temperature milk sterilization, steamed soy milk, steamed steamed buns.
2. For chemical industry: activated carbon heating and disinfection, high temperature plating.
3. For pharmaceutical industry: hospital disinfection, hospital canteen, hospital bath, pharmaceutical equipment heating, cooking medicine.
4. For biological equipment industry: sterilizer, sterilizer, school laboratory, thermal test
and so on...
our engineering case:
600kg induction heating portable steam boiler cost analysis :
Fuel Cost analysis(take 100kg per hour as an example) | ||||
Equipment selection | Steam volume | Energy consumption | Unit Price | Operating costs |
Electrothermal steam boiler | 100kg | 72 kw/h | 0.08 USD/kw | 10.91 USD |
Fuel steam boiler | 100kg | 7 kg/h | 0.53 USD/kg | 7.42 USD |
Gas steam boiler | 100kg | 8 m³/h natural gas | 0.34 USD/m³ | 5.45 USD |
Biomass steam generator | 100kg | 20 kg/h wood pellet | 0.08 USD/kg | 3.03 USD |
600kg induction heating portable steam boiler technical parameters:
600kg induction heating portable steam boiler technical | |||||||||||||
Rated evapor ation |
Rated pressure |
Rated steam temper ature |
Feed water tempera ture |
Design thermal efficiency | Water capacity | Steam outlet | water intake | Drain valve | Dimensions | Shipping weight |
Full load biomass consum ption |
||
L | W | H | |||||||||||
Kg/h | Mpa | ℃ | ℃ | % | L | DN | DN | DN | mm | mm | mm | T | Kg/h |
300 | 0.7 | 170℃ | 20℃ | 87% | 28 | 25 | 15 | 25 | 2000 | 1400 | 2700 | 1.35 | 49.3 |
500 | 0.7 | 170℃ | 20℃ | 93% | 29 | 32 | 15 | 25 | 2500 | 1800 | 2500 | 4.1 | 76.8 |
600 | 0.7 | 170℃ | 20℃ | 93% | 29 | 32 | 15 | 25 | 2500 | 1800 | 2500 | 4.3 | 80 |
1. Henan Swet Boiler Co.Ltd was established in 1954 ,We have continued to provide customers with more than 60 years of quality service, known as the king of China's boiler.
2. It's the national designated A-class boiler and D1,D2 class pressure vessel manufacturing key enterprises and has passed ISO9001 international quality management certification system certification.It holds level 1 boiler installation permit. National special equipment manufacturing license ,National specialequipment installation remould maintenance permits and so on.
Our Factory
Our main products include circular fluidized bed (CFB) boilers, gas boilers, coal boilers, biomass boilers, oil boilers, power plant boilers, energy efficient boilers, slag boilers, efficient boilers, electric boilers, high pressure boilers, fully automatic Control of boilers, wood vapors biomass boilers, chain grate, condensing boilers, natural gas steam boilers, water pipe boilers, fire pipe boilers, all artificial intelligence boilers, biomass steam generators, refractory materials, boiler accessories and so on.
Q: Can I get guarantee of products?
A: Yes, every product is 1 year quality warranty under customer correct using the products.
Q: Do you have any Certificate?
A: Yes. Each of our boiler has China GB and ISO9001certificate
Q: How can I pay you?
A: T/T is very well used.We also accept other ways, depending on the circumstances
Q: What about the production?
A: Produce time is 30 days
Q: What about the maintenance?
A: I will offer you the timely maintenance way sheet after installation of the boiler mainly parts.
Q:How to install a boiler?
A:Our boiler provides completed installation drawing and manual, or send engineer abroad for installation guidance.
Q:How many years is the boiler’s life?
A:The boiler is designed for 20years life.
Q:How to choose a boiler model?
A:Confirm the type (steam or hot water), capacity, pressure (or output temperature need) and fuel(coal, biomass, gas or oil) of the boiler, we will suggest a suitable model based on your usage
Q:How is the warranty term?
A:If any problems caused for quality during the warranty period, the Seller will repair or replace the broken parts for free, if the problem caused from the client’s side, the Seller will help supply the spare part at lowest cost.
Service purposes:
1. Focus on customers, the pursuit of excellence, and customers to progress together;
2. Customer demand is our eternal pursuit;
3. Sell a boiler, build a demonstration project, pay a friend, open up a market is my company's business philosophy.
