Vertical Biomass 500kg/Hr Steam Generator Boiler
Contact Person : Swet Lee
Phone Number : +8618736903078
WhatsApp : +8618736903078
| Minimum Order Quantity : | 1 Set/Sets | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | The biomass steam generator is covered with a waterproof film and the transport package is a wooden box. | Delivery Time : | 15 work days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 1500 Set/Sets Per Year |
| Place of Origin: | HENAN CHINA | Brand Name: | SWET |
|---|---|---|---|
| Certification: | ISO 9001 | Model Number: | LSS-7009 |
|
Detail Information |
|||
| Rated Evaporation: | 1T | Steam Pressure: | 0.7Mpa |
|---|---|---|---|
| Rated Steam Temperature: | 170℃ | Thermal Efficiency: | 93% |
| Color: | Customer's Requirement | Design Fuel: | Biomass |
| Warranty: | 12 Months | Weight: | 6000kg |
| Dimension: | 3000X2300X2500mm | Material: | Q235 Steel |
| High Light: | biomass steam boiler,industrial biomass boiler |
||
Product Description
The biomass steam generator description
1. The steam generator fuels are renewable biomass, the running cost is one fifth of electric boiler, one third of oil boiler.
2. The steam generator built-in steam separator solves the problem of steam with water to ensure the quality of the steam.
3. The steam generator full automatic control. Just connect the water and electricity; press the key, then the boiler will automatically enter the automatic running, safer and more convenient.
4. The steam generator furnace adopts the three-dimensional air circulation of three sides and a second oxygenating mouth; complete combustion and no visible smoke emissions; fully meeting the national emission requirements on the boiler.
The biomass steam generator technical parameters
| Biomass steam generator technical | |||||||||||||
| Rated evaporation | Rated pressure | Rated steam temperature | Feed water temperature | Design thermal efficiency | Water capacity | Steam outlet | water intake | Drain valve | Dimensions | Shipping weight | Full load biomass consumption | ||
| L | W | H | |||||||||||
| Kg/h | Mpa | ℃ | ℃ | % | L | DN | DN | DN | mm | mm | mm | T | Kg/h |
| 80 | 0.7 | 170℃ | 20℃ | 90% | 26.5 | 15 | 15 | 20 | 1600 | 900 | 1750 | 0.6 | 13.6 |
| 100 | 0.7 | 170℃ | 20℃ | 90% | 26.8 | 15 | 15 | 20 | 1600 | 900 | 1900 | 0.65 | 16.4 |
| 150 | 0.7 | 170℃ | 20℃ | 90% | 27 | 15 | 15 | 20 | 1650 | 900 | 1900 | 0.7 | 24.6 |
| 200 | 0.7 | 170℃ | 20℃ | 90% | 27 | 20 | 15 | 25 | 2150 | 1000 | 2400 | 1.2 | 32.8 |
| 300 | 0.7 | 170℃ | 20℃ | 93% | 28 | 25 | 15 | 25 | 2000 | 1400 | 2700 | 1.35 | 46.1 |
| 400 | 0.7 | 170℃ | 20℃ | 93% | 28.7 | 32 | 15 | 25 | 2350 | 1750 | 2200 | 3 | 61.5 |
| 500 | 0.7 | 170℃ | 20℃ | 93% | 29 | 32 | 1525 | 25 | 2500 | 1800 | 2500 | 4.1 | 76.8 |
| 600 | 0.7 | 170℃ | 20℃ | 93% | 29.5 | 32 | 15 | 25 | 2500 | 1800 | 2500 | 4.3 | 80 |
| 1000 | 0.7 | 170℃ | 20℃ | 92% | 29 | 32 | 15 | 25 | 3000 | 2300 | 2500 | 6 | 153.5 |
1T biomass steam generator production process:

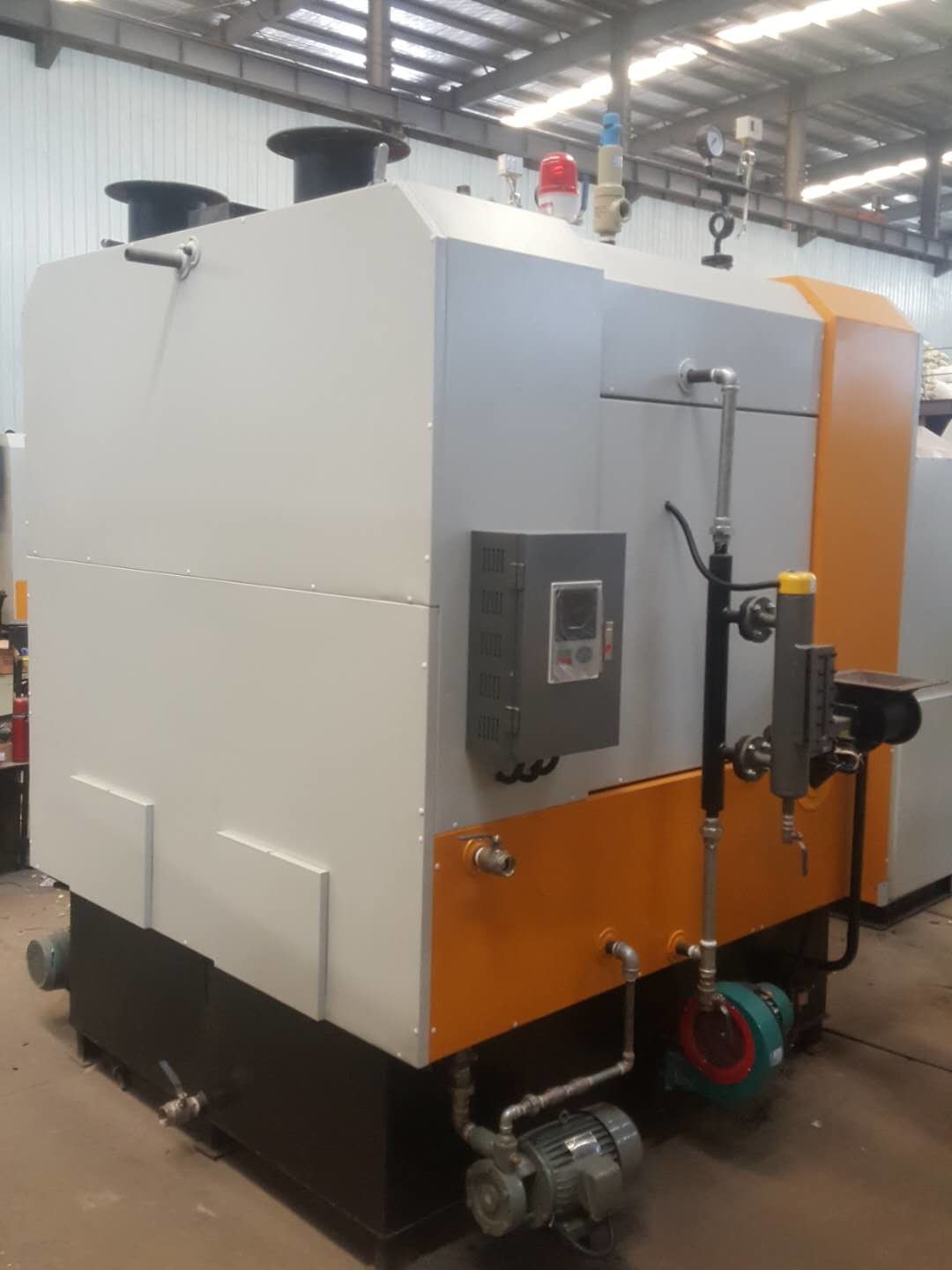

1T biomass steam generator detail picture :
