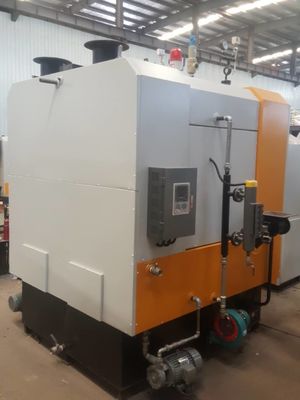

100kg/H - 3000kg/H Wood Biomass Industrial Steam Boiler
Contact Person : Swet Lee
Phone Number : +8618736903078
WhatsApp : +8618736903078
| Minimum Order Quantity : | 1 SET | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | The 600kg steam boiler bady with plywood packaging. | Delivery Time : | 10 WORKING DAY |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 3000 SETS PER YEAR |
| Place of Origin: | HENAN,CHINA | Brand Name: | SWET |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | LSS-6010 |
|
Detail Information |
|||

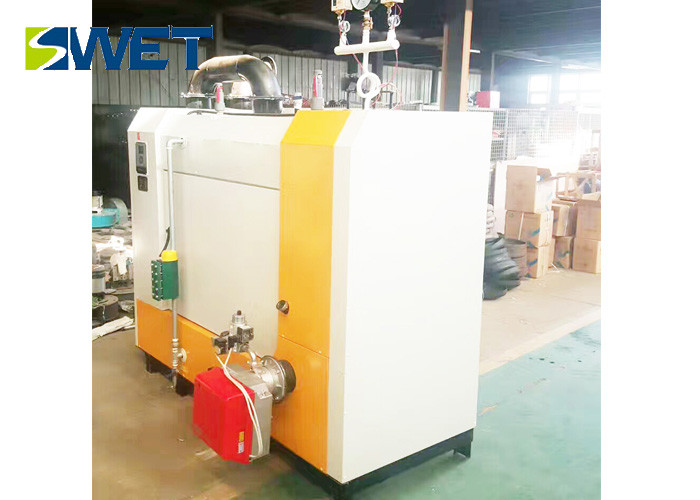

| Product Name: | 600kg Gas Steam Boiler | Item: | YDZ-6010 Gas Steam Boiler |
|---|---|---|---|
| Design Fuel: | Gas/oil | Color: | Customer's Requirement |
| Warranty: | 12 Months | Thermal Efficiency: | Over 92% |
| The Biggest Fuel Consumption(Nm3/h): | 46.9 | Rated Evaporation (kg/h): | 600 |
| Rated Steam Temperature(℃): | 170 | Rated Steam Pressure(Mpa): | 0.7 |
| Size: | 3200x1500x2500mm | Weight: | 4200kg |
| Burner: | Italy Riello | ||
| Highlight: | oil steam boiler,natural gas steam boiler |
||
Product Description
1. The steam generator built-in steam separator solves the problem of steam with water to ensure the quality of the steam.
2. The steam generator full automatic control. Just connect the water and electricity; press the key, then the boiler will automatically enter the automatic running, safer and more convenient.
3. The steam generator Easy installation; no need to ask for a professional installation personnel to install, meanwhile saving a lot of installation materials.
4. The steam generator fuel is energy-saving and environmentally friendly biomass. It is renewable, wide range of sources, affordable, and its running cost is one sixth of electric boiler, and a third of oil-fired boiler. There is no smoke and dust put off when burning. Only a small amount of powdery ash residue after completely burned retained in the ash collection chamber, easy to handle.
Gas steam generator technical parameters
| Gas steam generator technical parameter | |||||||||||||||
| Rated evaporati on | Rated pressure | Rated steam temperat ure | Feed water temperat ure | Design thermal efficienc y | Water capacit y | Steam outlet | water intake | Drain valve | Gas supply pressur e | Gas pipe diamet er | Dimensions | Shippin g weight | Full load biomass consuption | ||
| L | W | H | |||||||||||||
| Kg/h | Mpa | ℃ | ℃ | % | L | DN | DN | DN | Kpa | DN | mm | mm | mm | T | Nm³/h |
| 80 | 0.7 | 170℃ | 20℃ | 90% | 27 | 15 | 15 | 20 | 2-3.5 | 20 | 1050 | 1000 | 1500 | 0.5 | 6.5(NG) |
| 100 | 0.7 | 170℃ | 20℃ | 90% | 27 | 15 | 15 | 20 | 2-3.5 | 20 | 1150 | 1100 | 1600 | 0.6 | 8.4(NG) |
| 150 | 0.7 | 170℃ | 20℃ | 90% | 27.6 | 15 | 15 | 20 | 2-3.5 | 20 | 1250 | 1200 | 1700 | 0.7 | 11.7(NG) |
| 200 | 0.7 | 170℃ | 20℃ | 90% | 27.6 | 20 | 15 | 25 | 2-3.5 | 20 | 1600 | 1500 | 2300 | 1.2 | 15.7(NG) |
| 300 | 0.7 | 170℃ | 20℃ | 92% | 28 | 32 | 15 | 25 | 3.5-5 | 20 | 1700 | 1600 | 2300 | 1.3 | 22.3(NG) |
| 400 | 0.7 | 170℃ | 20℃ | 92% | 28.6 | 32 | 15 | 25 | 3.5-5 | 32 | 2350 | 1750 | 2200 | 2.8 | 30.5(NG) |
| 500 | 0.7 | 170℃ | 20℃ | 92% | 29 | 40 | 15 | 25 | 3.5-5 | 32 | 3200 | 1500 | 2100/2500 | 3 | 37.9(NG) |
| 600 | 0.7 | 170℃ | 20℃ | 92% | 29 | 40 | 15 | 25 | 3.5-5 | 32 | 3200 | 1500 | 2500 | 4.2 | 46.9(NG) |
