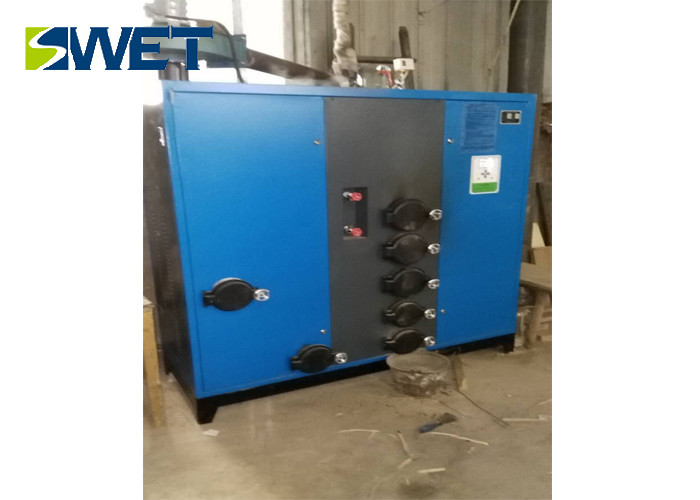

Vertical Biomass 500kg/Hr Steam Generator Boiler
Contact Person : Swet Lee
Phone Number : +8618736903078
WhatsApp : +8618736903078
| Minimum Order Quantity : | 1 Set/Sets | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | The biomass steam generator is covered with a waterproof film and the transport package is a wooden box. | Delivery Time : | 10-15 work days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 1000 Set/Sets Per Year |
| Place of Origin: | Henan China | Brand Name: | SWET |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | LHS0.15-0.7-S-3020 |
|
Detail Information |
|||
| Rated Evaporation: | 300 Kg/h | Weight: | 700kg |
|---|---|---|---|
| Preset Pressure: | 0.7mpa | Rated Steam Temperature: | 170℃ |
| Thermal Efficiency: | 85% | Model: | LHS0.15-0.7-S-3020 |
| Design Fuel: | Biomass | Dimensions(Length × Width × Height)mm: | 1600*900 *1900 |
| High Light: | biomass steam boiler,industrial biomass boiler |
||
Product Description
Product description
1. Crossflow structure, advanced level in domestic and international.
2. After 4 or 5 minutes ignition, it can get enough pressured steam.
3. Automatically control combustion, steam pressure and water level, ensure safe and economical operation.
4. Combustion gas flowing among conduit group at a high speed that assures high quality heat convection and transfer and high effect heat absorption.
5. Quiet operation and stable combustion, completely according with environmental protection standard.
6. Perfect boiler body structure ensures high quality heating absorption and high combustion efficiency up to 92% -96%.
Advantage
1. The product belongs to the national inspection-free, eliminating the complicated examination and approval procedures
2. Semi-gasification combustion, with a reasonable rationale, high thermal efficiency, emissions are not visible to the dust, fully meet the national emission requirements of the boiler;
3. One-touch operation, just put the water, electricity installed in place, press the switch button, the boiler will enter the fully automatic operation, safe and easy, greatly reduced the staff labor intensity;
4. Equipped with high-quality pressure controller, safety valve, with overpressure, low water level, and overheating protection and other multiple protection, to ensure product quality;
5. Modular machine factory has been configured to make up the pump and solenoid valve, just connected to the power supply, water inlet pipe can be, saving installation costs and a lot of installation materials
Biomass steam boiler features:
1. control system: equipped with fully automatic intelligent control system, with temperature setting, time control, cycle combustion control functions, use, operation, simple, convenient.
2. automatic design: the feed screw driven by automatic feeding device, every day just a storage bin is filled, unattended, greatly reduces the labor intensity of the stoker, the use of more humane boiler.
| Boiler product model |
LHS0.1-0.7- S |
LHS0.15-0.7-S | LSS0.2-0.7-S |
LSS0.3-0.7- S |
LSS0.4-0.7- S |
YDZ0.5-0.7-S |
| preset pressure(Mpa) | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 |
| Rated steam temperature(℃) | 170 | 170 | 170 | 170 | 170 | 170 |
| Rated evaporation(Kg/h) | 100 | 150 | 200 | 300 | 400 | 500 |
| Maximum fuel consumption(Kg/h) | 17 | 25 | 34 | 47 | 65 | 80 |
| Thermal efficiency | 85% | 85% | 85% | 85% | 85% | 85% |
| weight(Kg) | 600 | 700 | 1020 | 1150 | 1600 | 2700 |
| Dimensions(Length × width × height)mm |
1600*900 *1900 |
1600*900 *1900 |
2150*950 *2400 |
2000*1400 *2700 |
2700*1100 *2450 |
2200*1500 *2500 |
