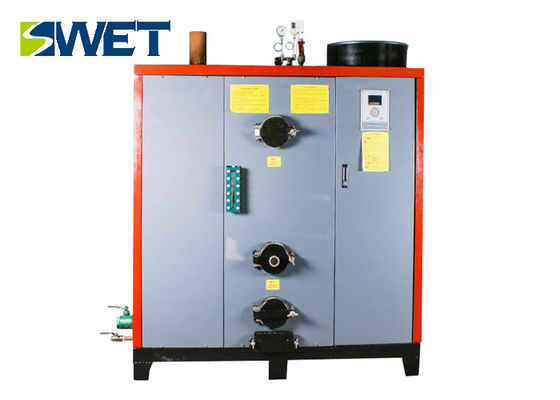

Professional Biomass Steam Boiler 100-600Kg Environmentally Friendly

Minimum Order Quantity : 1 Set/Sets Price : Negotiation
Packaging Details : The biomass steam boiler is covered with a waterproof film and the transport package is a wooden box. Delivery Time : 10-15 work days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 1000 Set/Sets Per Year
Place of Origin: Henan China Brand Name: SWET
Certification: ISO9001 Model Number: LSS0.2-0.7-S-3011

Detail Information

Rated Evaporation: 200 Kg/h Weight: 1020 Kg
Preset Pressure: 0.7mpa Rated Steam Temperature: 170℃
Style: Vertical Design Fuel: Biomass
Fuel: Biomass,wood Pellet,straw Usage: Industrial,Power Station
High Light:

biomass steam boiler


small steam boiler

Product Description

LSS Environmentally Friendly Biomass Steam Boiler 100-600Kg For industry


Product description


1. Crossflow structure, advanced level in domestic and international.


2. After 4 or 5 minutes ignition, it can get enough pressured steam.


3. Automatically control combustion, steam pressure and water level, ensure safe and economical operation.


4. Combustion gas flowing among conduit group at a high speed that assures high quality heat convection and transfer and high effect heat absorption.


5. Quiet operation and stable combustion, completely according with environmental protection standard.


6. Perfect boiler body structure ensures high quality heating absorption and high combustion efficiency up to 92% -96%.


Biomass steam boiler features:


1. Efficient and energy-saving: the use of three return design, the use of low cost, lower than the fuel (gas) to reduce operating costs of 30-70%


2. Low-carbon environment: semi-gas combustion plus rear dust, soot, sulfur and nitrogen emissions low, low carbon dioxide emissions


3. The product belongs to the national inspection-free, eliminating the complicated examination and approval procedures


4. Semi-gasification combustion, with a reasonable rationale, high thermal efficiency, emissions are not visible to the dust, fully meet the national emission requirements of the boiler


5. One-touch operation, just put the water, electricity installed in place, press the switch button, the boiler will enter the fully automatic operation, safe and easy, greatly reduced the staff labor intensity;

6. Modular machine factory has been configured to make up the pump and solenoid valve, just connected to the power supply, the water inlet pipe can be, saving installation costs and a lot of installation materials


Generator product model



LHS0.15-0.7-S LSS0.2-0.7-S





preset pressure(Mpa) 0.7 0.7 0.7 0.7 0.7 0.7
Rated steam temperature(℃) 170 170 170 170 170 170
Rated evaporation(Kg/h) 100 150 200 300 400 500
Maximum fuel consumption(Kg/h) 17 25 34 47 65 80
Thermal efficiency 85% 85% 85% 85% 85% 85%
weight(Kg) 600 700 1020 1150 1600 2700
Dimensions(Length × width × height)mm














Professional Biomass Steam Boiler 100-600Kg Environmentally Friendly 0


Professional Biomass Steam Boiler 100-600Kg Environmentally Friendly 1
