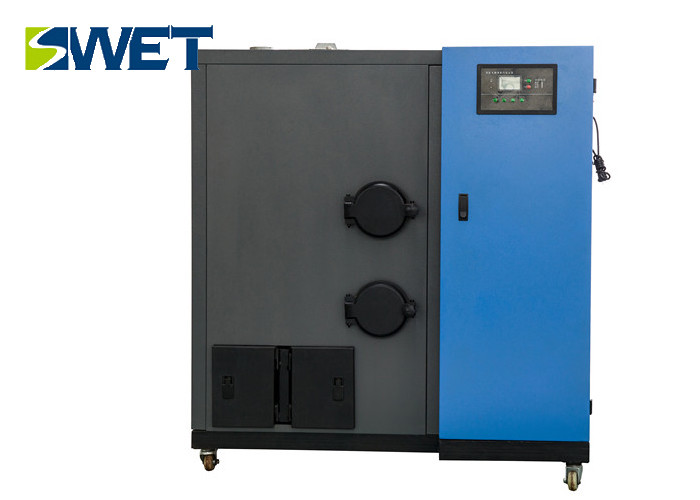

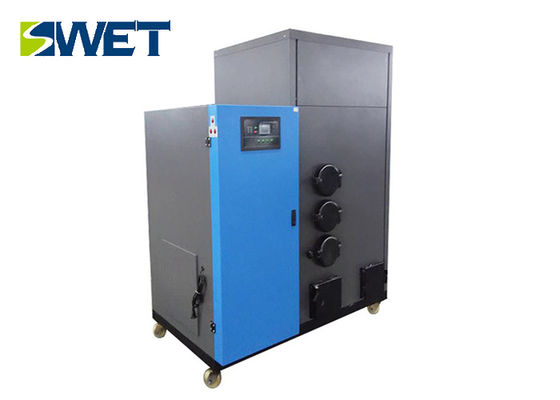

High efficiency 1.0 ton 0.7Mpa 1.0Mpa 1.2Mpa low pressure wood chip steam boiler for machinery industry
Contact Person : Swet Lee
Phone Number : +8618736903078
WhatsApp : +8618736903078
| Minimum Order Quantity : | 1 Set/Sets | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | The biomass steam generator is covered with a waterproof film and the transport package is a wooden box. | Delivery Time : | 10-15 work days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 1000 Set/Sets Per Year |
| Place of Origin: | Henan China | Brand Name: | SWET |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | LSS0.2-0.7-S-3012 |
|
Detail Information |
|||
| Rated Evaporation: | 200 Kg/h | Weight: | 1020 Kg |
|---|---|---|---|
| Preset Pressure: | 0.7mpa | Thermal Efficiency: | 85% |
| Design Fuel: | Biomass | Dimensions(Length × Width × Height)mm: | 2150*950 *2400 |
| Fuel: | Biomass,wood Pellet,straw | ||
| Highlight: | industrial biomass boiler,small steam boiler |
||
Product Description
Product description
1. The steam boiler fuel is energy-saving and environmentally friendly biomass. It is renewable, wide range of sources, affordable, and its running cost is one sixth of electric boiler, and a third of oil-fired boiler. There is no smoke and dust put off when burning.
2. The steam boilerbuilt-in steam separator solves the problem of steam with water to ensure the quality of the steam.
3. The steam boilerfull automatic control. Just connect the water and electricity; press the key, then the boiler will automatically enter the automatic running, safer and more convenient .
Product advantages
1. Control system: equipped with fully automatic intelligent control system, with temperature setting, time control, cycle combustion control functions, use, operation, simple, convenient.
2. Automatic design: the feed screw driven by automatic feeding device, every day just a storage bin is filled, unattended, greatly reduces the labor intensity of the stoker, the use of more humane boiler.
3. The product belongs to the national inspection-free, eliminating the complicated examination and approval procedures
4. Semi-gasification combustion, with a reasonable rationale, high thermal efficiency, emissions are not visible to the dust, fully meet the national emission requirements of the boiler
5. One-touch operation, just put the water, electricity installed in place, press the switch button, the boiler will enter the fully automatic operation, safe and easy, greatly reduced the staff labor intensity;
6. Equipped with high-quality pressure controller, safety valve, with overpressure, low water level, and overheating protection and other multiple protection, to ensure product quality;
7. Modular machine factory has been configured to make up the pump and solenoid valve, just connected to the power supply, the water inlet pipe can be, saving installation costs and a lot of installation materials
| Generator product model |
LHS0.1-0.7- S |
LHS0.15-0.7-S | LSS0.2-0.7-S |
LSS0.3-0.7- S |
LSS0.4-0.7- S |
YDZ0.5-0.7-S |
| preset pressure(Mpa) | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 |
| Rated steam temperature(℃) | 170 | 170 | 170 | 170 | 170 | 170 |
| Rated evaporation(Kg/h) | 100 | 150 | 200 | 300 | 400 | 500 |
| Maximum fuel consumption(Kg/h) | 17 | 25 | 34 | 47 | 65 | 80 |
| Thermal efficiency | 85% | 85% | 85% | 85% | 85% | 85% |
| weight(Kg) | 600 | 700 | 1020 | 1150 | 1600 | 2700 |
| Dimensions(Length × width × height)mm |
1600*900 *1900 |
1600*900 *1900 |
2150*950 *2400 |
2000*1400 *2700 |
2700*1100 *2450 |
2200*1500 *2500 |
