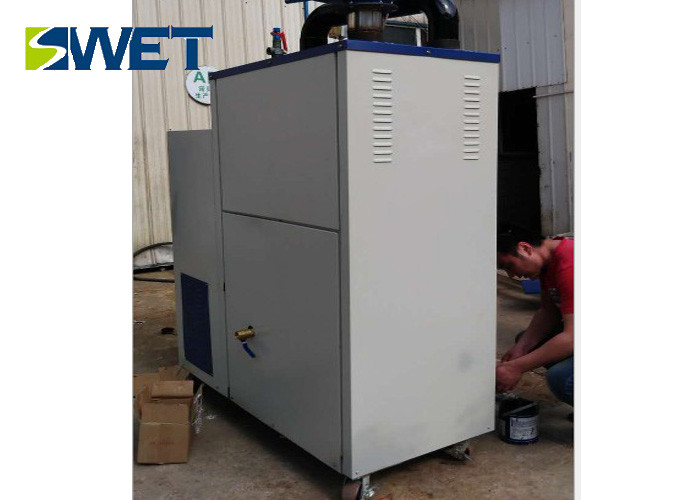

Vertical Biomass 500kg/Hr Steam Generator Boiler
Contact Person : Swet Lee
Phone Number : +8618736903078
WhatsApp : +8618736903078
Minimum Order Quantity : | 1 Set/Sets | Price : | Negotiation |
---|---|---|---|
Packaging Details : | The biomass steam generator is covered with a waterproof film and the transport package is a wooden box. | Delivery Time : | 10-15 work days |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 1000 Set/Sets Per Year |
Place of Origin: | Henan China | Brand Name: | SWET |
---|---|---|---|
Certification: | ISO9001 | Model Number: | LHS0.15-0.7-S-3010 |
Detail Information |
|||
Rated Evaporation: | 150 Kg/h | Weight: | 700kg |
---|---|---|---|
Preset Pressure: | 0.7mpa | Style: | LHS0.15-0.7-S-3010 |
Model Number: | 85% | Design Fuel: | Biomass |
Fuel: | Biomass,wood Pellet,straw | Pressure: | Low Pressure,High Pressure,normal Pressure,1.0-2.5 MPA |
Condition: | New | Usage: | Industrial |
Output: | Steam,Hot Water | Type: | Natural Circulation |
Structure: | Water Tube,Fire Tube | ||
High Light: | biomass steam boiler,industrial biomass boiler |
Product Description
Product description
1. Combustion mode adopted by the Chinese inspection hospital inspection according to fuel and gas test of the standard of combustion machine, high efficiency, high thermal efficiency.
2. One-click operation, just the water and electricity installed, press the power switch, the steam generator, would be the automatic operation, easy security, greatly reduce the labor intensity of operators.
3. Equipped with pressure controller, relief valve, and is equipped with the overpressure, low water level and overheating, etc. Multiple protection
Product advantages
1. Low-carbon environment: semi-gas combustion plus rear dust, soot, sulfur and nitrogen emissions low, low carbon dioxide emissions;
2. Simple operation: automatic feeding, ultra-low feeding, hopper to increase design, simple operation, small workload, single duty can be;
3. Safety: Thickening boiler steel, ultrasonic testing after strict testing; the use of electronic control, automatic adjustment of pressure water level, automatic heating and with water and overpressure protection
4. Modular machine factory has been configured to make up the pump and solenoid valve, just connected to the power supply, the water inlet pipe can be, saving installation costs and a lot of installation materials;
5. Energy saving fuel, is a renewable resource, operating costs is one sixth of electric boilers, oil boiler is one-third;
6. The overall modular factory, small size, less than half a ton of steam boiler buckle with this steam generator using the modular combination of alternatives.
Generator product model |
LHS0.1-0.7- S |
LHS0.15-0.7-S | LSS0.2-0.7-S |
LSS0.3-0.7- S |
LSS0.4-0.7- S |
YDZ0.5-0.7-S |
preset pressure(Mpa) | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 |
Rated steam temperature(℃) | 170 | 170 | 170 | 170 | 170 | 170 |
Rated evaporation(Kg/h) | 100 | 150 | 200 | 300 | 400 | 500 |
Maximum fuel consumption(Kg/h) | 17 | 25 | 34 | 47 | 65 | 80 |
Thermal efficiency | 85% | 85% | 85% | 85% | 85% | 85% |
weight(Kg) | 600 | 700 | 1020 | 1150 | 1600 | 2700 |
Dimensions(Length × width × height)mm |
1600*900 *1900 |
1600*900 *1900 |
2150*950 *2400 |
2000*1400 *2700 |
2700*1100 *2450 |
2200*1500 *2500 |
