|Place of Origin:||Henan China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 Set/Sets|
|Packaging Details:||The biomass steam generator is covered with a waterproof film and the transport package is a wooden box.|
|Delivery Time:||10-15 work days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||1000 Set/Sets Per Year|
|Rated Evaporation:||200 Kg/h||Weight:||1020 Kg|
|Preset Pressure:||0.7mpa||Rated Steam Temperature:||170℃|
|Thermal Efficiency:||85%||Color:||Customer's Requirement|
industrial biomass boiler,
oil fired steam boiler,

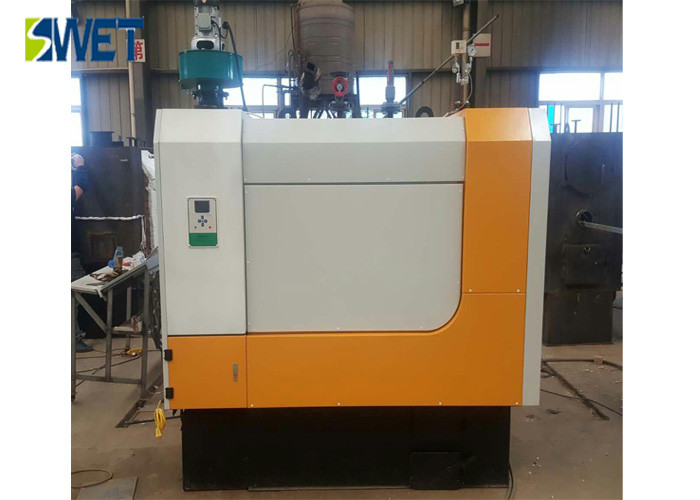

200Kg/h biomass fuel steam generator
1. The steam generator fuel is energy-saving and environmentally friendly biomass.
2. It is renewable, wide range of sources, affordable, and its running cost is one sixth of electric boiler, and a third of oil-fired boiler.
3. There is no smoke and dust put off when burning. Only a small amount of powdery ash residue after completely burned retained in the ash collection chamber, easy to handle
4. Equipped with high-quality pressure controller, safety valve, with overpressure, low water level, and overheating protection and other multiple protection, to ensure product quality
5. Modular machine factory has been configured to make up the pump and solenoid valve, just connected to the power supply, the water inlet pipe can be, saving installation costs and a lot of installation materials
1. Energy saving and environmental protection: the use of energy saving, environmental protection renewable fuel, affordable. The biomass steam generator using smokeless complete combustion. Its operating cost is 1/6 of the electric boiler and 1/3 of the oil and gas fired boiler.
2. Scientific design: the structure of the biomass steam generator and special gasification combustion of the fuel can be fully burned, multi link baffle heat exchanger, the heat preservation, reduce heat loss, improve the thermal efficiency of the boiler is 30%.
3. The product belongs to the national inspection-free, eliminating the complicated examination and approval procedures
4. Semi-gasification combustion, with a reasonable rationale, high thermal efficiency, emissions are not visible to the dust, fully meet the national emission requirements of the boiler; 3, one-touch operation, just put the water, electricity installed in place, press the switch button, the boiler will enter the fully automatic operation, safe and easy, greatly reduced the staff labor intensity;
|Generator product model||
|Rated steam temperature(℃)||170||170||170||170||170||170|
|Maximum fuel consumption(Kg/h)||17||25||34||47||65||80|
|Dimensions(Length × width × height)mm||
