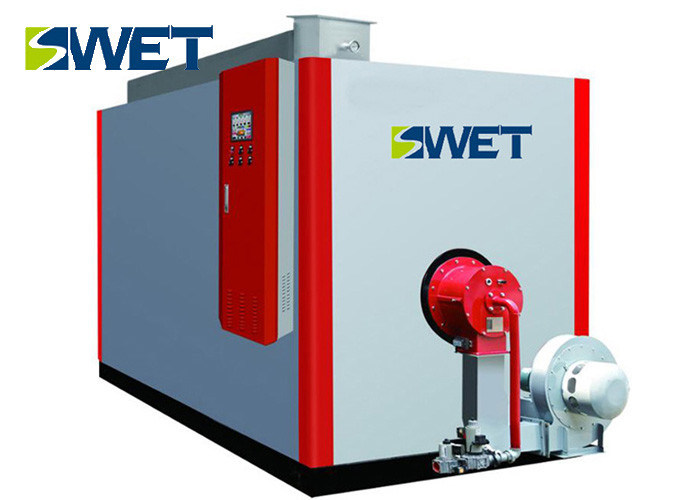

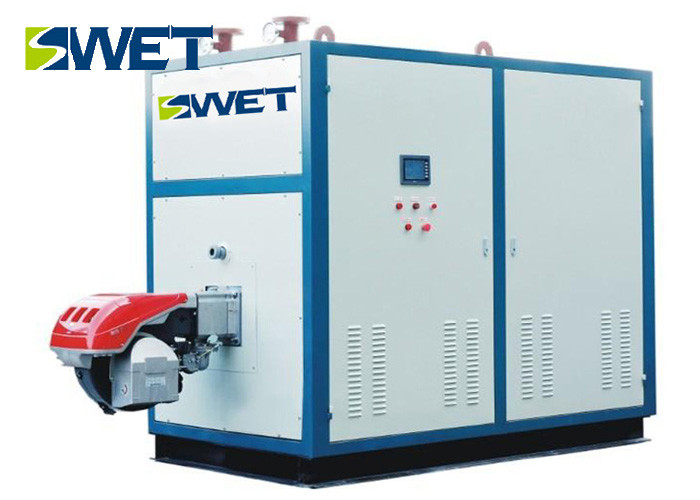

300kg 0.7Mpa 1.0Mpa 1.2Mpa industrial heating gas fired steam boiler
Contact Person : Swet Lee
Phone Number : +8618736903078
WhatsApp : +8618736903078
| Minimum Order Quantity : | 1 SET | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | Wooden boxes plus plastic paper packaging | Delivery Time : | 30 work days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 1200 Sets / Year |
| Place of Origin: | HENAN,CHINA | Brand Name: | SWET |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | WNS2 |
|
Detail Information |
|||
| Rated Capacity/t/h: | 2 | Working Pressure/MPA: | 1.25 |
|---|---|---|---|
| Steam Temperature/℃: | 193 | Feed Temperature/℃: | 20 |
| Testing Efficiency/%: | 95.81 | Gas Consumption/Nm3/h: | 163.72 |
| High Light: | oil steam boiler,natural gas steam boiler |
||
Product Description
High thermal efficiency
100% corrugated furnace and spirally corrugated tube, can absorb flame heat effectively, thermal efficiency can be more than 96%.
High welding quality
Main boiler welding joint are heat treated to remove the stress ensures the welding quality. Automatic welding facilities guarantee the 100% passing rate of flaw detection.
Novel appearance
Boiler outer packing with novel appearance: color coated steel plate and hinged front and back smoke box.
Superior accessories
Adopts famous imported burner brands such as Italian Riello and Baltur, Finland Oilon. All main instruments and valves are from international or domestic famous brands such as Siemens, Shneider and Omron.
PLC full automatic control system
PLC modular control system enhanced energy management system, offers significant advancements including many new individual monitoring points. With our optimized parameter setting ,the easy-to-use interface provides your facility with an intelligent boiler system to optimize energy and personnel management for increased productivity, efficiency and a reduced environmental impact.
| WNS series automatic gas (oil) steam energy saving boiler product selection form | ||||||||
| Model | Rated capacity | Working pressure | Steam temperature | Feed temperature | Testing efficiency | Diesel consumption | Gas consumption | Outline dimension |
| Unit | t/h | Mpa | ℃ | ℃ | ％ | Kg/h | Nm³/h | mm(L*W*H) |
| WNS20-2.5-Q(Y) | 20 | 2.5 | 226 | 105 | 97.62 | 1231.56 | 1407.5 | |
| WNS20-1.25(1.6)-Q(Y) | 20 | 1.25/1.6 | 194/204 | 105 | 97.51 | 1276.63 | 1459 |
8870*3550 *3750 |
| WNS15-1.0(1.25)(1.6)-Q(Y) | 15 | 1.0/1.25/1.6 | 184/197/204 | 105 | 97.2 | 985.25 | 1126 |
7450*3520 *4090 |
| WNS10-1.25(1.6)-Q(Y) | 10 | 1.25/1.6 | 194/204 | 105 | 96.75 | 732.59 | 837.25 |
6370*2812 *3514 |
| WNS8-1.25(1.6)-Q(Y) | 8 | 1.25/1.6 | 194/204 | 105 | 96.7 | 576.84 | 659.25 |
6000*2920 *3403 |
| WNS6-1.25(1.6)-Q(Y) | 6 | 1.25/1.6 | 194/204 | 105 | 96.58 | 379.32 | 433.51 |
5470*2770 *3195 |
| WNS5-1.25(1.6)-Q(Y) | 5 | 1.25/1.6 | 194/204 | 20 | 96.48 | 358.16 | 409.33 |
5160*2410 *3015 |
| WNS4-1.0(1.25)(1.6)-Q(Y) | 4 | 1.0/1.25/1.6 | 184/197/204 | 20 | 96.3 | 292.45 | 334.23 |
4880*2710 *2600 |
| WNS3-1.0(1.25)(1.6)-Q(Y) | 3 | 1.0/1.25/1.6 | 184/197/204 | 20 | 95.99 | 214.48 | 245.12 |
4762*2447 *2469 |
| WNS2-1.0(1.25)-Q(Y) | 2 | 1.0/1.25 | 184/197/204 | 20 | 95.81 | 143.26 | 163.72 |
4030*2010 *2210 |
| Performance features: symmetrical furnace, uniform distribution, good cooling, sufficient combustion, long service life, stable output | ||||||||
