Low Nitrogen Single Drum Industrial Steam Boiler 95-98% High Testing Efficiency

Name: Low Nitrogen Single Drum Industrial Steam Boiler 95-98% High Testing Efficiency
Brand: SWET
SKU: WNS
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (149 reviews)

Minimum Order Quantity :	1 SET	Price :	Negotiation
Packaging Details :	Wooden boxes plus plastic paper packaging	Delivery Time :	30 work days
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram	Supply Ability :	1200 Sets / Year

Place of Origin:	HENAN,CHINA	Brand Name:	SWET
Certification:	ISO9001	Model Number:	WNS

Detail Information
Rated Capacity/t/h:	2-20	Working Pressure/MPA:	1.0-2.5
Steam Temperature/℃:	170-226	Feed Temperature/℃:	20-105
Testing Efficiency/%:	95-98	Gas Consumption/Nm3/h:	160-1400
High Light:	natural gas steam boiler , industrial electric steam boiler

Product Description

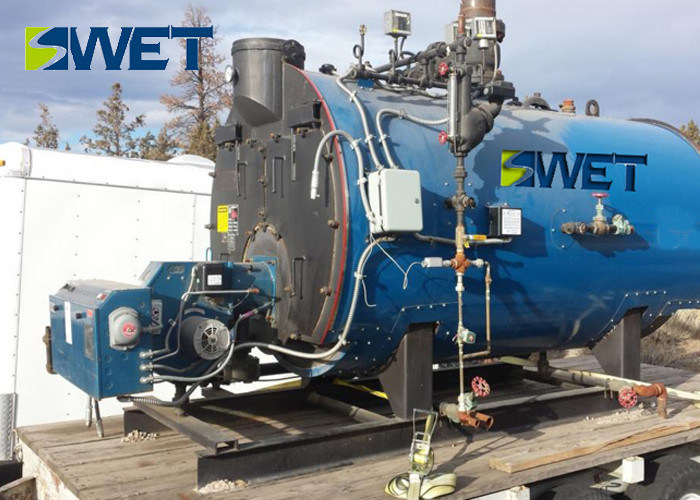

Full Automatic Low Nitrogen Single Drum Oil Gas Fired Steam Boiler for Chemical Industry

1. This oil gas fired Steam Boiler for fast loading horizontal internal combustion five return wet back type fire tube structure. The post layout corrugated furnace, heating is symmetrical layout; shell and tube plate, the furnace and the wet smoke box tube plates are made of the butt weld; to inhibit the formation of NOx, with lower level of furnace volume heat load .

2. A pressure controller is installed on the boiler, through the computer control system of automatic replenishment and overpressure shutdown protection, in addition to two safety valve can release pressure boiler.

3. Set up a personal hand hole and three hole, the tail also set up a set of inspection, fire, explosion door.

Explosion proof in one easy to check, cleaning.

WNS series automatic gas (oil) steam energy saving boiler product selection form
Model	Rated capacity	Working pressure	Steam temperature	Feed temperature	Testing efficiency	Diesel consumption	Gas consumption	Outline dimension
Unit	t/h	Mpa	℃	℃	％	Kg/h	Nm³/h	mm(LWH)
WNS20-2.5-Q(Y)	20	2.5	226	105	97.62	1231.56	1407.5
WNS20-1.25(1.6)-Q(Y)	20	1.25/1.6	194/204	105	97.51	1276.63	1459	88703550 3750
WNS15-1.0(1.25)(1.6)-Q(Y)	15	1.0/1.25/1.6	184/197/204	105	97.2	985.25	1126	74503520 4090
WNS10-1.25(1.6)-Q(Y)	10	1.25/1.6	194/204	105	96.75	732.59	837.25	63702812 3514
WNS8-1.25(1.6)-Q(Y)	8	1.25/1.6	194/204	105	96.7	576.84	659.25	60002920 3403
WNS6-1.25(1.6)-Q(Y)	6	1.25/1.6	194/204	105	96.58	379.32	433.51	54702770 3195
WNS5-1.25(1.6)-Q(Y)	5	1.25/1.6	194/204	20	96.48	358.16	409.33	51602410 3015
WNS4-1.0(1.25)(1.6)-Q(Y)	4	1.0/1.25/1.6	184/197/204	20	96.3	292.45	334.23	48802710 2600
WNS3-1.0(1.25)(1.6)-Q(Y)	3	1.0/1.25/1.6	184/197/204	20	95.99	214.48	245.12	47622447 2469
WNS2-1.0(1.25)-Q(Y)	2	1.0/1.25	184/197/204	20	95.81	143.26	163.72	40302010 2210
Performance features: symmetrical furnace, uniform distribution, good cooling, sufficient combustion, long service life, stable output

Full Automatic Low Nitrogen Single Drum Oil Gas Fired Steam Boiler for Chemical Industry
