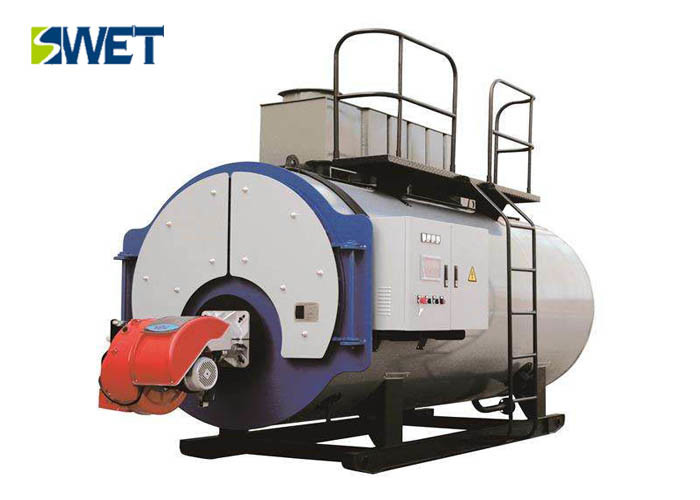

300kg 0.7Mpa 1.0Mpa 1.2Mpa industrial heating gas fired steam boiler
Contact Person : Swet Lee
Phone Number : +8618736903078
WhatsApp : +8618736903078
| Minimum Order Quantity : | 1 Set/Sets | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | The boiler in nude package, but covered with water-proof covering, accessories in plywood case or tin case, this can be changed as your requirements | Delivery Time : | 25-30 work days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram，Cash or on the basis of mutual agreement | Supply Ability : | 1500 Set/Sets Per Year |
| Place of Origin: | Henan China | Brand Name: | SWET |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | WNS5-1.25(1.6)-Q(Y)-3017 |
|
Detail Information |
|||
| Rated Evaporation: | 5 T / H | Rated Working Pressure: | 1.25/1.6 MPa |
|---|---|---|---|
| Rated Steam Temperature: | 194/204 ℃ | Feed Water Temperature: | 20 ℃ |
| Keywords: | Gas Steam Boiler | Model: | WNS5-1.25(1.6)-Q(Y)-3017 |
| Testing Efficiency: | 96.48 % | Color: | Customer Requirements |
| High Light: | industrial biomass boiler,oil fired steam boiler |
||
Product Description
Product description
1. The series of gas steam boilers for the fast-loading horizontal internal combustion three back wet back fire tube structure.
2. The furnace with low profile is arranged in the center of the furnace.
3. The shell and the tube plate, the furnace tube and the wet-smoke tube plate are all butt-welded. In order to restrain the generation of NOx, a lower furnace volume heat load
Product advantages
1. Gas steam boiler automation instrumentation and auxiliary equipment is reasonable, advanced and reliable
2. Gas steam boiler body resistance is small, stable operation, saving power consumption, low noise
Specification
| WNS series of automatic gas (oil) steam energy-saving boiler product selection table | |||||||
| Model | Rated evaporation | Work pressure | Steam temperature | Feed water temperature | Air consumption | Test efficiency | Transport dimensions |
| Unit | t/h | MPa | ℃ | ℃ | Nm³/h | % | mm |
| WNS20-2.5-Q(Y) | 20 | 2.5 | 226 | 105 | 1407.5 | 97.62 | 8660x3520x4831 |
| WNS20-1.25(1.6)-Q(Y) | 20 | 1.25/1.6 | 194/204 | 105 | 1459 | 97.51 | 8870x3550x3750 |
| WNS15-1.0(1.25)(1.6)-Q(Y) | 15 | 1.0/1.25/1.6 | 184/194/204 | 105 | 1126 | 97.2 | 7450x3520x4090 |
| WNS10-1.25(1.6)-Q(Y) | 10 | 1.25/1.6 | 194/204 | 105 | 837.25 | 96.75 | 6370x2812x3514 |
| WNS8-1.25(1.6)-Q(Y) | 8 | 1.25/1.6 | 194/204 | 105 | 659.25 | 96.7 | 6000x2920x3430 |
| WNS6-1.25(1.6)-Q(Y) | 6 | 1.25/1.6 | 194/204 | 105 | 433.51 | 96.58 | 5470x2770x3195 |
| WNS4-1.0(1.25)(1.6)-Q(Y) | 4 | 1.0/1.25/1.6 | 184/197/204 | 20 | 334.23 | 96.3 | 4880*2710*2600 |
| Performance features: symmetrical furnace, uniform distribution, good cooling, sufficient combustion, long service life, stable output | |||||||
FAQ
1. Q:How many years is the boiler’s life?
A:The boiler is designed for 20years life.
2. Q:How to choose a boiler model?
A:Confirm the type (steam or hot water), capacity, pressure (or output temperature need) and fuel(coal, biomass, gas or oil) of the boiler, we will suggest a suitable model based on your usage
3. Q:How is the warranty term?
A:If any problems caused for quality during the warranty period, the Seller will repair or replace the broken parts for free, if the problem caused from the client’s side, the Seller will help supply the spare part at lowest cost.
