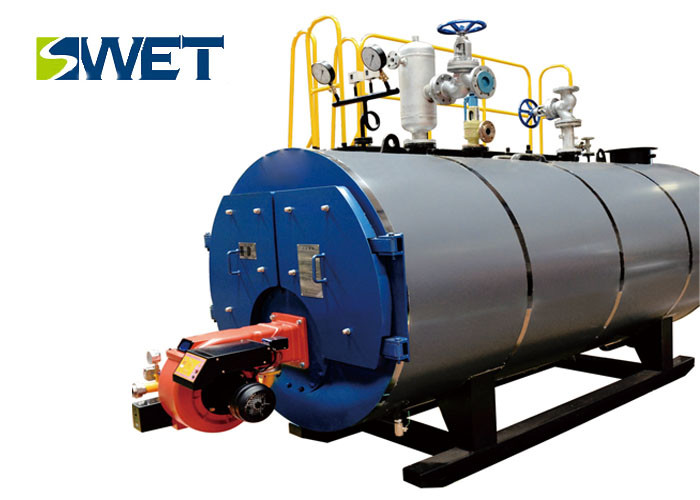

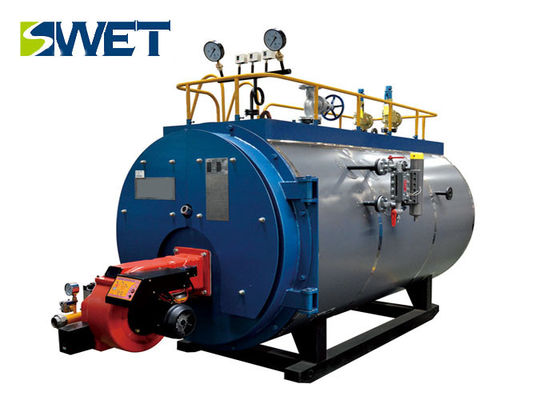

300kg 0.7Mpa 1.0Mpa 1.2Mpa industrial heating gas fired steam boiler
Contact Person : Swet Lee
Phone Number : +8618736903078
WhatsApp : +8618736903078
| Minimum Order Quantity : | 1 Set/Sets | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | The boiler in nude package, but covered with water-proof covering, accessories in plywood case or tin case, this can be changed as your requirements | Delivery Time : | 25-30 work days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram，Cash or on the basis of mutual agreement | Supply Ability : | 1500 Set/Sets Per Year |
| Place of Origin: | Henan China | Brand Name: | SWET |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | WNS2-1.25(1.6)-Q(Y)-3008 |
|
Detail Information |
|||
| Rated Evaporation: | 20 T / H | Rated Working Pressure: | 1.25/1.6 Mpa |
|---|---|---|---|
| Rated Steam Temperature: | 194/204℃ | Feed Water Temperature: | 105℃ |
| Keywords: | Gas Steam Boiler | Model: | WNS2-1.25(1.6)-Q(Y)-3008 |
| Gas Consumption: | 1459 Nm³/h | Color: | Based On Customer's Needs |
| Highlight: | industrial gas boiler,oil fired steam boiler |
||
Product Description
Product description
1. The series of boilers equipped with imported brand-name burners, according to different fuel selection of different burners, wide adaptability.
2. Among them, Baltur's GI 1000 LXME MB burner was selected as the gas type, and their main pipe fittings such as quick-break valves, filters, pressure regulating valves and leak detection devices were fully imported. The performance was stable and reliable.
3. Light oil selection GI 1000 DSPG MB. After the gas is filtered, the gas is fed into the corrugated furnace for diffusive combustion by the burner after the pressure is regulated; the fuel is atomized by the burner and sent to the corrugated furnace for combustion.
Product advantages
1. Gas steam boiler body with full butt weld wet back structure, low profile full-wave furnace, boiler structure flexibility and thermal expansion of a good, safe and reliable.
2. 100% corrugated furnace and spirally corrugated tube, can absorb flame heat effectively, thermal efficiency can be more than 96%.
Specification
| WNS series of automatic gas (oil) steam energy-saving boiler product selection table | |||||||
| Model | Rated evaporation | Work pressure | Steam temperature | Feed water temperature | Air consumption | Test efficiency | Transport dimensions |
| Unit | t/h | MPa | ℃ | ℃ | Nm³/h | % | mm |
| WNS20-2.5-Q(Y) | 20 | 2.5 | 226 | 105 | 1407.5 | 97.62 | 8660x3520x4831 |
| WNS20-1.25(1.6)-Q(Y) | 20 | 1.25/1.6 | 194/204 | 105 | 1459 | 97.51 | 8870x3550x3750 |
| WNS15-1.0(1.25)(1.6)-Q(Y) | 15 | 1.0/1.25/1.6 | 184/194/204 | 105 | 1126 | 97.2 | 7450x3520x4090 |
| WNS10-1.25(1.6)-Q(Y) | 10 | 1.25/1.6 | 194/204 | 105 | 837.25 | 96.75 | 6370x2812x3514 |
| WNS8-1.25(1.6)-Q(Y) | 8 | 1.25/1.6 | 194/204 | 105 | 659.25 | 96.7 | 6000x2920x3430 |
| WNS6-1.25(1.6)-Q(Y) | 6 | 1.25/1.6 | 194/204 | 105 | 433.51 | 96.58 | 5470x2770x3195 |
| WNS4-1.25(1.6)-Q(Y) | 4 | 1.0/1.25/1.6 | 184/194/204 | 20 | 334.23 | 96.3 | 4880x2710x2600 |
| WNS2-1.0(1.25)-Q(Y) | 2 | 1.0/1.25 | 184/197/204 | 20 | 163.72 | 95.81 | 4030*2010*2210 |
Superior accessories
Adopts famous imported burner brands such as Italian Riello and Baltur, Finland Oilon. All main instruments and valves are from international or domestic famous brands such as Siemens, Shneider and Omron.
PLC full automatic control system
PLC modular control system enhanced energy management system, offers significant advancements including many new individual monitoring points.
