Natural Gas Steam Boiler For Machinery Industry 1.25Mpa Rated Working Pressure

Name: Natural Gas Steam Boiler For Machinery Industry 1.25Mpa Rated Working Pressure
Brand: SWET
SKU: WNS4-1.25-Y、Q-3006
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (193 reviews)

Minimum Order Quantity :	1 Set/Sets	Price :	Negotiation
Packaging Details :	The boiler in nude package, but covered with water-proof covering, accessories in plywood case or tin case, this can be changed as your requirements	Delivery Time :	25-30 work days
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram，Cash or on the basis of mutual agreement	Supply Ability :	1500 Set/Sets Per Year

Place of Origin:	Henan China	Brand Name:	SWET
Certification:	ISO9001	Model Number:	WNS4-1.25-Y、Q-3006

Detail Information
Rated Evaporation:	4 T / H	Rated Working Pressure:	1.0/1.25/1.6 Mpa
Rated Steam Temperature:	184/197/204℃	Feed Water Temperature:	20 ℃
Keywords:	Gas Steam Boiler	Model:	WNS4-1.25-Y、Q-3006
Color:	Based On Customer's Needs	Gas Consumption:	334.23 Nm³/h
High Light:	industrial biomass boiler , industrial gas boiler

Product Description

Fully Automatic 1.25Mpa 4T / h Natural Gas Steam Boiler For Machinery Industry

Product description

1. The series of boilers for the fast-loading horizontal internal combustion three back wet back fire tube structure. The furnace with low profile is arranged in the center of the furnace.

2. The shell and the tube plate, the furnace tube and the wet-smoke tube plate are all butt-welded. In order to restrain the generation of NOx, a lower furnace volume heat load .

3. Boiler installed three pressure controller, through the computer control system to achieve automatic replenishment and overpressure shutdown protection, in addition to two safety valves can play a role in pressure relief.

4. The boiler body is provided with a manhole and three hand holes, the tail also set a check, view fire, explosion-proof door in one, easy to check and clean.

Product advantages

1. There is no smoke in the boiler discharge, the emission concentration of SO2 and NOx is extremely low, and the environmental benefits are remarkable.

2. Gas steam boiler body resistance is small, stable operation, saving power consumption, low noise.

3. Gas steam boiler quick-mounted overall structure, small size, compact structure, easy installation

Specification

WNS series of automatic gas (oil) steam energy-saving boiler product selection table
Model	Rated evaporation	Work pressure	Steam temperature	Feed water temperature	Air consumption	Test efficiency	Transport dimensions
Unit	t/h	MPa	℃	℃	Nm³/h	%	mm
WNS20-2.5-Q(Y)	20	2.5	226	105	1407.5	97.62	8660x3520x4831
WNS20-1.25(1.6)-Q(Y)	20	1.25/1.6	194/204	105	1459	97.51	8870x3550x3750
WNS15-1.0(1.25)(1.6)-Q(Y)	15	1.0/1.25/1.6	184/194/204	105	1126	97.2	7450x3520x4090
WNS10-1.25(1.6)-Q(Y)	10	1.25/1.6	194/204	105	837.25	96.75	6370x2812x3514
WNS8-1.25(1.6)-Q(Y)	8	1.25/1.6	194/204	105	659.25	96.7	6000x2920x3430
WNS6-1.25(1.6)-Q(Y)	6	1.25/1.6	194/204	105	433.51	96.58	5470x2770x3195
WNS5-1.25(1.6)-Q(Y)	5	1.25/1.6	194/204	20	409.33	96.48	5160x2410x3015
WNS4-1.0(1.25)(1.6)-Q(Y)	4	1.0/1.25/1.6	184/197/204	20	334.23	96.3	488027102600
Performance features: symmetrical furnace, uniform distribution, good cooling, sufficient combustion, long service life, stable output

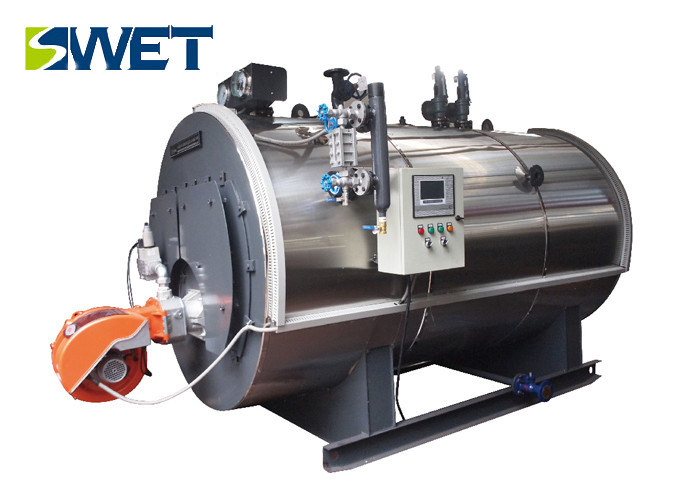

Natural Gas Steam Boiler For Machinery Industry 1.25Mpa Rated Working Pressure 0

CASE

1. Szs series gas steam boiler foregypt food and beverage industry Steam capacity:15t/h

working pressure:1.6Mpa/232psl

2. WNS series Gas Fired Condensing Steam Boiler For Mongolia food packaging company
steam capacity: 6t/h, working

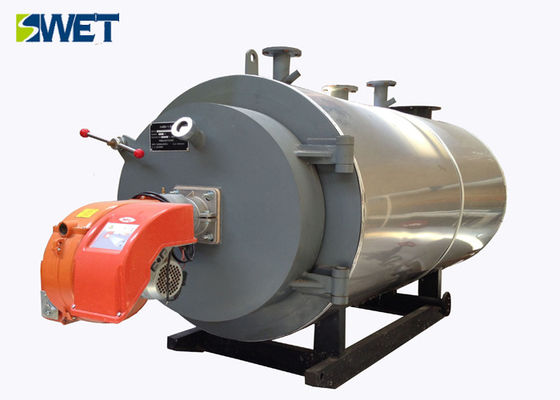

Natural Gas Steam Boiler For Machinery Industry 1.25Mpa Rated Working Pressure 1
