Fuel Gas 2t/H 0.7Mpa 1.0Mpa 1.2Mpa Fire Tube Industrial Steam Boiler For Paper Industry ISO9001 Approval
Contact Person : Swet Lee
Phone Number : +8618736903078
WhatsApp : +8618736903078
| Minimum Order Quantity : | 1 Set/Sets | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | The boiler in nude package, but covered with water-proof covering, accessories in plywood case or tin case, this can be changed as your requirements | Delivery Time : | 25-30 work days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram，Cash or on the basis of mutual agreement | Supply Ability : | 1500 Set/Sets Per Year |
| Place of Origin: | Henan China | Brand Name: | SWET |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | WNS8-1.25-Y、Q-3003 |
|
Detail Information |
|||
| Rated Evaporation: | 8 T / H | Rated Working Pressure: | 1.25 MPa |
|---|---|---|---|
| Rated Steam Temperature: | 194 ℃ | Feed Water Temperature: | 105 ℃ |
| Keywords: | Gas Steam Boiler | Model: | WNS8-1.25-Y、Q-3003 |
| Gas Consumption: | 659.25Nm³/h | Color: | Based On Customer's Needs |
| High Light: | industrial gas boiler,oil fired steam boiler |
||
Product Description
Product description

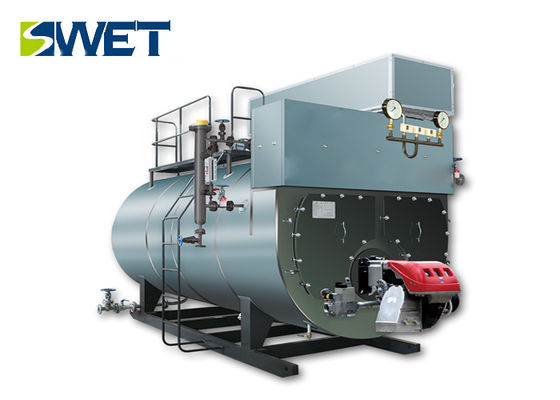

1. The WNS series of gas steam boilers for the fast-loading horizontal internal combustion three back wet back fire tube structure. The furnace tube and the wet-smoke tube plate are all butt-welded. In order to restrain the generation of NOx, a lower furnace volume heat load
2. Boiler installed three pressure controller, through the computer control system to achieve automatic replenishment and overpressure shutdown protection, in addition to two safety valves can play a role in pressure relief.
3. The boiler body is provided with a manhole and three hand holes, the tail also set a check, view fire, explosion-proof door in one, easy to check and clean.
Product advantages
1. The gas steam boiler body adopts the wet butt structure of full butt weld, low profile full corrugated furnace, the structure of the boiler is good in elasticity and heat retractility, safe and reliable.
2. Gas steam boiler computer control, high degree of automation, all kinds of safety protection device is complete, easy to operate, safe and reliable operation.
Specification
| WNS series of automatic gas (oil) steam energy-saving boiler product selection table | |||||||
| Model | Rated evaporation | Work pressure | Steam temperature | Feed water temperature | Air consumption | Test efficiency | Transport dimensions |
| Unit | t/h | MPa | ℃ | ℃ | Nm³/h | % | mm |
| WNS20-2.5-Q(Y) | 20 | 2.5 | 226 | 105 | 1407.5 | 97.62 | 8660x3520x4831 |
| WNS20-1.25(1.6)-Q(Y) | 20 | 1.25/1.6 | 194/204 | 105 | 1459 | 97.51 | 8870x3550x3750 |
| WNS15-1.0(1.25)(1.6)-Q(Y) | 15 | 1.0/1.25/1.6 | 184/194/204 | 105 | 1126 | 97.2 | 7450x3520x4090 |
| WNS10-1.25(1.6)-Q(Y) | 10 | 1.25/1.6 | 194/204 | 105 | 837.25 | 96.75 | 6370x2812x3514 |
| WNS8-1.25(1.6)-Q(Y) | 8 | 1.25/1.6 | 194/204 | 105 | 659.25 | 96.7 | 6000x2920x3430 |
| WNS6-1.25(1.6)-Q(Y) | 6 | 1.25/1.6 | 194/204 | 105 | 433.51 | 96.58 | 5470x2770x3195 |
| WNS4-1.25(1.6)-Q(Y) | 4 | 1.0/1.25/1.6 | 184/194/204 | 20 | 334.23 | 96.3 | 4880x2710x2600 |
FAQ
1. How to get a boiler price list?
Pls tell us below to confirm a boiler model and offer the right boiler price:
1) What is the application of the boiler?
2) What is the capacity per hour do you need?
3) Which fuel do you want to use for your boiler, coal, biomass, gas & oil, or others?
Any more questions,please sent your inquiry below
