Modular Control 6t/H Oil Gas Fired Dual Fuel Boiler 27KW

Minimum Order Quantity : 1 Packaging Details : The boiler is covered with a waterproof film and the transport package is a wooden box.
Delivery Time : 15-30 days after payment received Payment Terms : T/T, Western Union
Supply Ability : 1500 sets per year
Place of Origin: Henan Province, China Brand Name: Swet
Certification: ISO9001 Model Number: WNS6-1.25-YQ

Detail Information

Usage: Industrial Type: Natural Circulation
Fuel: Coal-fired Style: Horizontal
Condition: New Output: Steam
High Light:

6t/H Gas Fired Dual Fuel Boiler

,

PLC Modular Dual Fuel Boiler

,

Dual Fuel Boiler 27KW

Product Description

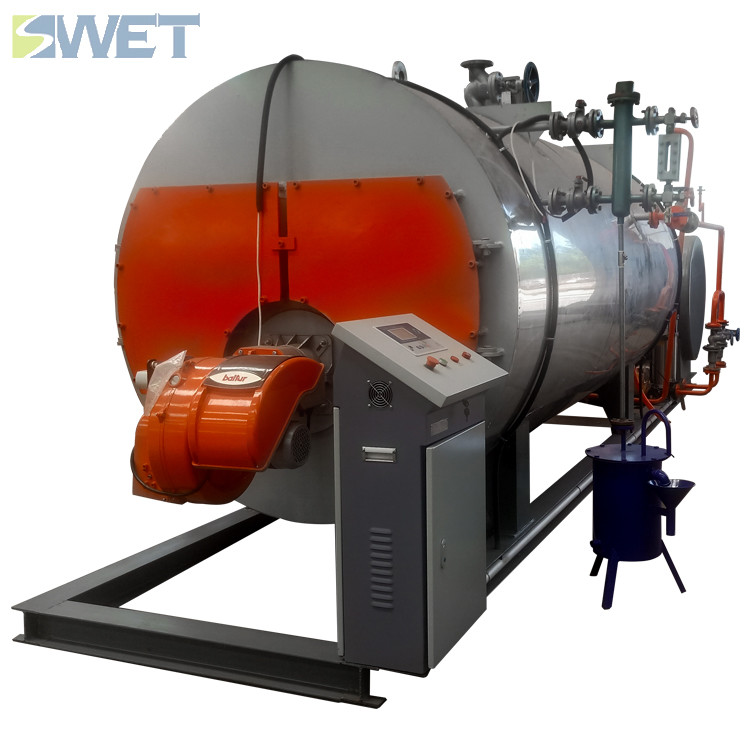

WNS series fire tube output steam 5-6 ton oil gas fired dual fuel boiler

Reasonable boiler combustor design, suitable for different fuels such as diesel, natural gas, town gas and mazout, the fuels can burn completely and increasing the radiation heating furnace area,reducing the NOX emissions.
Adopts famous imported burner brands such as Italian Riello and Baltur, Finland Oilon. All main instruments and valves are from international or domestic famous brands such as Siemens, Shneider and Omron.
PLC modular control system enhanced energy management system, offers significant advancements including many new individual monitoring points. With our optimized parameter setting ,the easy-to-use interface provides your facility with an intelligent boiler system to optimize energy and personnel management for increased productivity, efficiency and a reduced environmental impact.
Steam boiler technical parameters
Model WNS3-1.25-YQ WNS4-1.25-YQ WNS4-1.6-YQ WNS6-1.25-YQ WNS8-1.25-YQ WNS10-1.25-YQ WNS10-1.6-YQ
Rated evaporation (t/h) 3 4 4 6 8 10 10
Rated working pressure (Mpa) 1.25 1.25 1.6 1.25 1.25 1.25 1.6
Rated steam temperature (°C) 194 194 204 194 194 194 204
Design thermal efficiency (%) 92.12 92.13 92.3 92.47 92.35 92.43 92.45
Rated oil consumption (kg/h) 208 267 275 410 543 688 689
Rated gas consumption (Nm³/h) 252 300 334 498 657 836 837
Power consumption (KW) 14.5 14.5 14.5 27 33.5 37.0 37.0
Applicable fuel Light diesel, Natural gas, Liquid Alcohol-based fuel
Applicable power supply (AC) 380V 50HZ (can be customized)
Exhaust temperature (°C) 135.9 134.6 134 129.5 118 136.3 136.8
Approx weight (kg) 9000 11200 11484 13505 21702 23241 24106
Approx dimensions (m) 5.0*2.02*2.38 5.6*2.15*2.64 5.6*2.15*2.64 6.2*2.24*2.69 6.65*2.63*3.14 7.25*2.86*3.3 7.25*2.86*3.3
Note: Please contact us to confirm the relevant data before prefabrication, reservation and boiler room design.
Production Process
WNS series fire tube output steam 5-6 ton oil gas fired dual fuel boiler
Our engineering case
WNS series fire tube output steam 5-6 ton oil gas fired dual fuel boiler
Company Information
Henan kaifeng Swet (original name Desheng) Boiler Co.Ltd was established in 1954 ,We have continued to provide customers with more than 60 years of quality service, known as the king of China's boiler. China's first circulating fluidized bed boiler was born in our factory.
It’s the national designated A-class boilers and D1, D2 class pressure vessel manufacturing key enterprises and has passed ISO9001 international quality management certification system certification.
