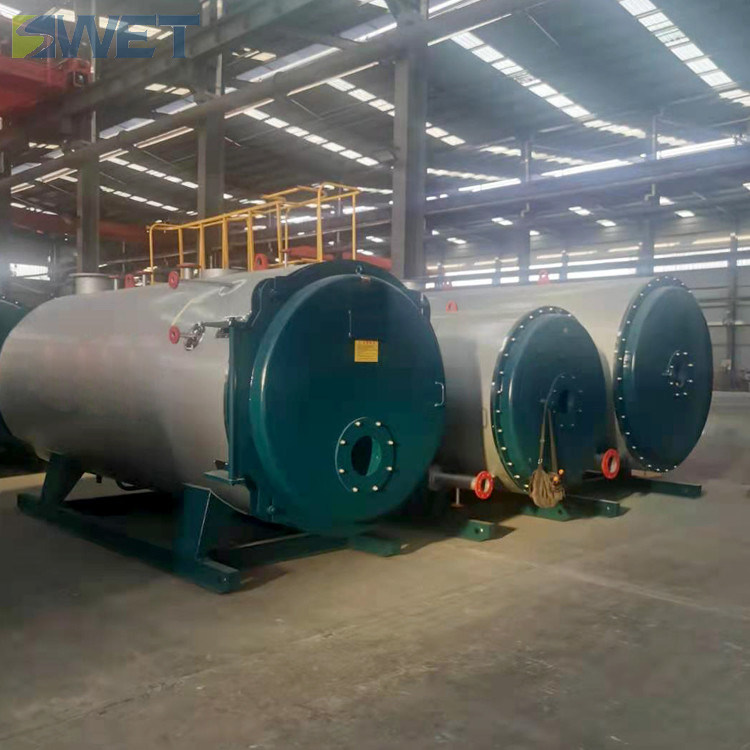

Gas Fired Diesel Multi Fuel Steam Boiler 1.25Mpa 700kw Wetback Structure

Minimum Order Quantity : 1 Packaging Details : The boiler is covered with a waterproof film and the transport package is a wooden box.
Delivery Time : 15-30 days after payment received Supply Ability : 1500 sets per year
Place of Origin: Henan Province, China Brand Name: Swet
Certification: ISO9001 Model Number: WNS1-1.25-YQ

Detail Information

Boiler Capacity: 700kw Rated Pressure: 1.25Mpa
Full Load Fuel Consumption: 85Nm3/h & 70.2Kg/h Thermal Efficiency: 92.3%
Approx Dimensions: 4.1*1.7*2.05m Approx Weight: 5.5 Ton
Design Fuel: Diesel And Gas
High Light:

Diesel Multi Fuel Steam Boiler

,

Wetback Multi Fuel Steam Boiler

,

700kw Industrial Steam Boiler

Product Description

1.25mpa 700kw diesel and gas fired commercial multi fuel steam boiler

WNS series steam boiler adopts the most sophisticated three returns all wet back structure,thread smoke tube structure weld joint with high quality.The system can successfully monitor the oxygen content in the flue gas, and transmit the data to the control system in real time. Through computer intelligent analysis, it can automatically adjust the ratio of combustion equipment to keep it in the best position all the time. In good working condition, the combustion efficiency is greatly improved, which can greatly reduce the fuel consumption.
1.25mpa 700kw diesel and gas fired commercial multi fuel steam boiler
Reasonable design of the internal device to ensure high-grade steam quality. The use of new thermal insulation materials, light weight, less heat loss, and good thermal insulation performance.The front and rear smoke boxes are connected by hinges, which can be opened easily, and the maintenance is convenient and quick.
Technical parameters
Model WNS1-1.25-YQ
Rated evaporation (t/h) 1
Rated working pressure (Mpa) 1.25
Rated steam temperature (°C) 194
Design thermal efficiency (%) 92.3
Rated gas consumption (Nm³/h) 85
Rated oil consumption (Kg/h) 7.02
Power consumption (KW) 2.6
Applicable fuel Light diesel, Natural gas, Liquid Alcohol-based fuel
Applicable power supply (AC) 380V 50HZ
Combustion method Room combustion, Slightly positive pressure combustion
Exhaust temperature (°C) 128.2
Approx shipping weight (t) 5.5
Approx shipping size (mm) 4100*1700*2050
Note: Please contact us to confirm the relevant data before prefabrication, reservation and boiler room design.
Packaging & Shipping
1.25mpa 700kw diesel and gas fired commercial multi fuel steam boiler
Production Process
1.25mpa 700kw diesel and gas fired commercial multi fuel steam boiler
Application
Textile industry: shrinking machine, dryer, washing machine, dehydration machine, printing, ironing machine and other equipment.
Food machinery industry: steamer, packaging machines, paint equipment, sealing machines and other equipment.
Other industries: automotive steam cleaning industry,hotels, schools, enterprises and other hot water supply and other industries.
Company Information
It’s the national designated A-class boilers and D1, D2 class pressure vessel manufacturing key enterprises and has passed ISO9001 international quality management certification system certification.
It holds level 1 boiler installation permit ,National special equipment manufacturing license ,National special equipment installation remould maintenance permits and so on.
In 1979 the world's first circulating fluidized bed boiler developed by the Austrian company in Finland. In 1987 China's first circulating fluidized bed boiler was born in our factory. In 2016 In order to meet current emissions and reduce energy consumption requirements, our company launched efficient low-emission energy-saving circulating fluidized bed boiler, has been identified by the national institute of special equipment.
China 's top ten boiler manufacturing enterprises. Chinese Academy of Sciences circulating fluidized bed boiler research and development base.
Other Products
1.25mpa 700kw diesel and gas fired commercial multi fuel steam boiler
Pls tell us below to confirm a boiler model and offer the right boiler price:
1) What is the application of the boiler?
2) What is the capacity per hour do you need?
3) Which fuel do you want to use for your boiler, coal, biomass, gas & oil, or others?
4) What is the pressure of your boiler?
