700kg/H 7 Bar Portable Boiler Natural Gas Steam Generator
700kg/H 7 Bar Portable Boiler Natural Gas Steam Generator
700kg/H 7 Bar Portable Boiler Natural Gas Steam Generator 700kg/H 7 Bar Portable Boiler Natural Gas Steam Generator
Contact Now

700kg/H 7 Bar Portable Boiler Natural Gas Steam Generator

Minimum Order Quantity : 1 Packaging Details : The boiler is covered with a waterproof film and the transport package is a wooden box.
Delivery Time : 15-30 days after payment received Supply Ability : 1500 sets per year
Place of Origin: Henan Province, China Brand Name: Swet
Certification: ISO9001 Model Number: YDZ0.7-0.7-Q

Detail Information
Rated Evaporation: 0.7t/h Rated Pressure: 0.7Mpa
Fuel Consumption: 60.7m³/h Overall Size: 2700*1600*2400mm
Weight: 3.7 Ton Thermal Efficiency: 90%
Rated Steam Temperature: 171℃ Design Fuel: Gas
Output: Steam
High Light:

Portable Natural Gas Steam Generator

,

700kg/H Natural Gas Steam Generator

,

7 Bar Natural Gas Steam Generator

Product Description

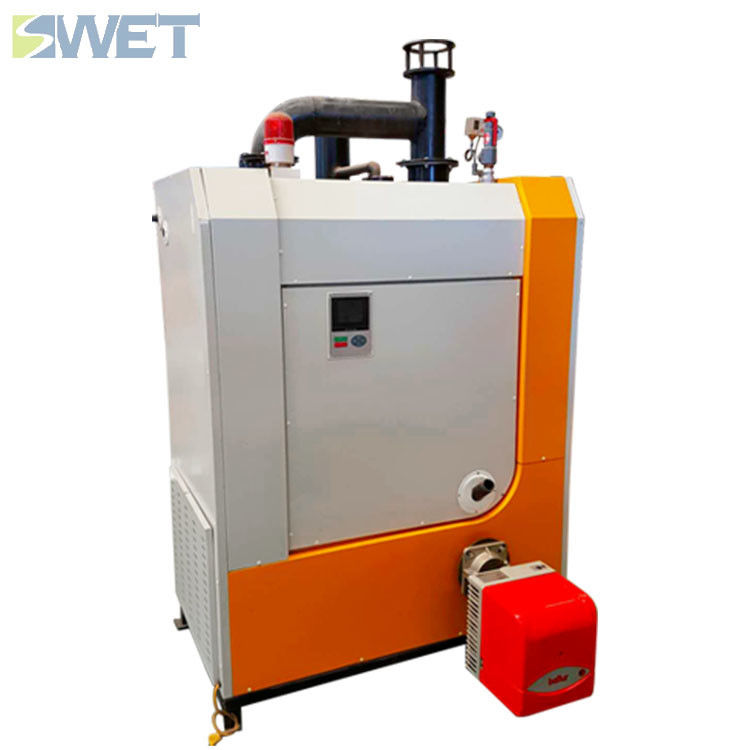

700kg/H 7 Bar Portable Boiler Natural Gas Steam Generator

The 7 bar 700kg portable industrial natural gas steam generator has strong adaptability to load. The well-designed built-in steam separator device meets the requirements of users for higher quality steam. The furnace body facilitates the cleaning of the inside of the furnace, which makes maintenance and maintenance extremely convenient.
The safety of 7 bar 700kg portable industrial natural gas steam generator is equipped with multi-level interlock protection: pressure switch protection (automatic shutdown and alarm above set pressure), low water level protection (water level in boiler body is lower than warning water level, automatic power off and alarm), safety valve protection (boiler) The pressure exceeds the working pressure, and the air pressure is automatically reduced.) Ensure that the boiler is safe under all working conditions and safe to get home.
Technical parameters of 7 bar 700kg portable industrial natural gas steam generator

gas steam boiler technical parameters

Rated evaporation

Rated pressure

Rated steam tempe

rature

Design thermal efficiency

Water capacity

Steam outlet

water intake

Drain valve

Dimensions

Shipping weight

Full load light diesel oil consumption

L

W

H

Kg/h

Mpa

℃

%

L

DN

DN

DN

mm

mm

mm

T

m³/h
700 0.7 170 93 <29 40 25 25 2700 1600 2400 3.7 60.7
Advantages of 7 bar 700kg portable industrial natural gas steam generator
Rapid steam generation in five minutes, the thermal efficiency can reach more than 90%, the pressure is stable, and the running cost is low.
Low noise, low concentration of smoke and dust, no black smoke, fully in line with national first-class regional emission standards, environmentally friendly and reliable.
Fully automatic control system with automatic high and low water level protection, saving manpower.
7 bar 700kg portable industrial natural gas steam generator
Application of 7 bar 700kg portable industrial natural gas steam generator
For food industry: food factory, beverage factory, bakery, high temperature milk sterilization, steamed soy milk, steamed steamed buns.
For pharmaceutical industry: hospital disinfection, hospital canteen, hospital bath, pharmaceutical equipment heating, cooking medicine.
For biological equipment industry: sterilizer, school laboratory, thermal test.
OUR FACTORY
Our main products include circular fluidized bed (CFB) boilers, gas boilers, coal boilers, biomass boilers, oil boilers, power plant boilers, energy efficient boilers, slag boilers, efficient boilers, electric boilers, high pressure boilers, fully automatic Control of boilers, wood vapors biomass boilers, chain grate, condensing boilers, natural gas steam boilers, water pipe boilers, fire pipe boilers, all artificial intelligence boilers, biomass steam generators, refractory materials, boiler accessories and so on.
7 bar 700kg portable industrial natural gas steam generator
7 bar 700kg portable industrial natural gas steam generator.png
