Home ProductsWood Chip Biomass Boiler0.5t/H Chestnut Boiler Industrial 500kg Biomass Steam Generator

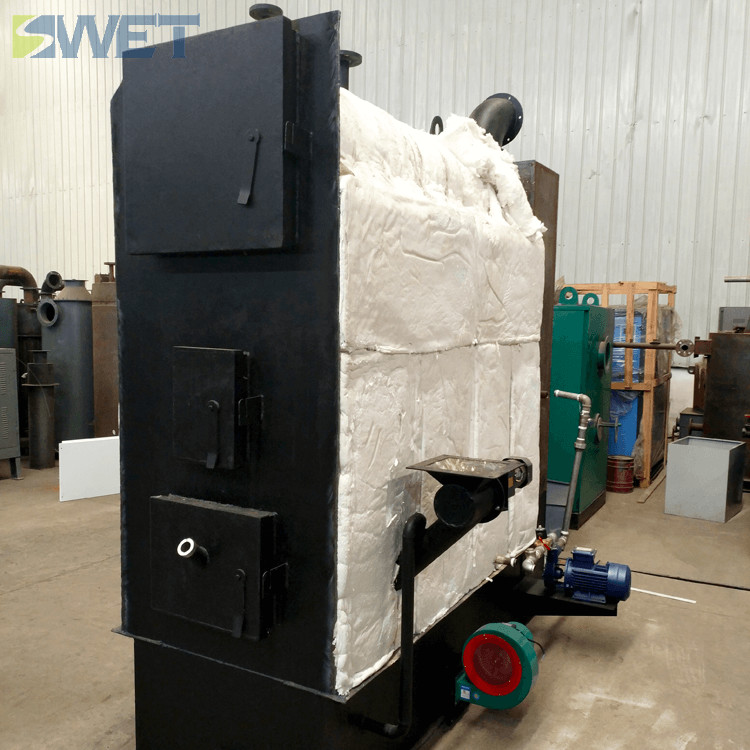

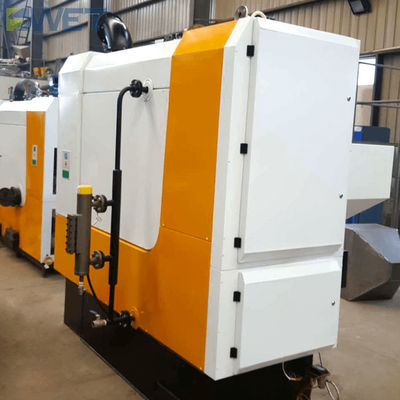

0.5t/H Chestnut Boiler Industrial 500kg Biomass Steam Generator
0.5t/H Chestnut Boiler Industrial 500kg Biomass Steam Generator 0.5t/H Chestnut Boiler Industrial 500kg Biomass Steam Generator 0.5t/H Chestnut Boiler Industrial 500kg Biomass Steam Generator 0.5t/H Chestnut Boiler Industrial 500kg Biomass Steam Generator
Contact Now

0.5t/H Chestnut Boiler Industrial 500kg Biomass Steam Generator

Minimum Order Quantity : 1 Price : 11000USD-13200USD
Packaging Details : The boiler is covered with a waterproof film and the transport package is a wooden box. Delivery Time : 15-30 days after payment received
Supply Ability : 1500 sets per year
Place of Origin: Henan Province, China Brand Name: Swet
Certification: ISO9001 Model Number: YDZ1.5-0.7-S

Detail Information
Rated Evaporation: 500kg/h Rated Pressure: 0.7Mpa
Rated Steam Temperature: 170℃ Thermal Efficiency: 93%
Water Capacity: <29L Length: 2500mm
Width: 1700mm Height: 2600mm
Full Load Biomass Consumption: 77kg/h Style: Horizontal
Design Fuel: Biomass Pellets Evaporation: 350kw
Boiler Evaporation: 300000Kcal Output: Steam
The Calorific Value Of Light Diesel Oil: 10300Kcal/kg Shipping Weight: 4 Ton
Steam Outlet: DN32 Water Intake: DN25
Drain Valve: DN25
High Light:

Chestnut Biomass Steam Generator

,

500kg Biomass Steam Generator

,

500kg Industrial Steam Boiler

Product Description

Reliable performance 0.5t/h castnha caldeira new type industrial 500kg biomass steam boiler

The boiler has strong adaptability to load. The well-designed built-in steam separator device meets the requirements of users for higher quality steam. The furnace body facilitates the cleaning of the inside of the furnace, which makes maintenance and maintenance extremely convenient.
The boiler safety is equipped with multi-level interlock protection: pressure switch protection (automatic shutdown and alarm above set pressure), low water level protection (water level in boiler body is lower than warning water level, automatic power off and alarm), safety valve protection (boiler) The pressure exceeds the working pressure, and the air pressure is automatically reduced.) Ensure that the boiler is safe under all working conditions and safe to get home.
Small steam boiler technical parameters
Fuel Cost analysis(Take 100 kg per hour as an example)

Equipment selection

Steam volume

Energy consumption

Unit Price

Operating costs

Electrothermal steam boiler

100kg

72 kw/h

0.08 USD/kw

10.91 USD

Fuel steam boiler

100kg

7 kg/h

0.53 USD/kg

7.42 USD

Gas steam boiler

100kg

8 m³/h natural gas

0.34 USD/m³

5.45 USD

Biomass steam boiler

100kg

20 kg/h wood pellet

0.08 USD/kg

3.03 USD

Biomass steam boiler technical

Rated evaporation

Rated pressure

Rated steam tempe

rature

Feed water temper

ature

Design thermal efficiency

Water capacity

Steam outlet

water intake

Drain valve

Dimensions

Shipping weight

Full load biomass consumption

L

W

H

Kg/h

Mpa

℃

℃

%

L

DN

DN

DN

mm

mm

mm

T

kg/h

300

0.7

170

20

92%

<29

25

25

25

2400

1700

2100

3

46
400 0.7 170 20 92% <29 32 25 25 2400 1700 2100 3.2 62

500

0.7

170

20

92%

<29

 32 25 25 2500 1700 2600 4 77
700 0.7 170 20 92% <29 40 25 25 2500 1700 2600 4.1 108

1000

0.7

170

20

92%

<29

 50 25 25 2500 1700 2600 4.3 154
Rapid steam generation in five minutes, the thermal efficiency can reach more than 90%, the pressure is stable, and the running cost is low.
Low noise, low concentration of smoke and dust, no black smoke, fully in line with national first-class regional emission standards, environmentally friendly and reliable.
Fully automatic control system with automatic high and low water level protection, saving manpower.
Reliable performance 0.5t/h castnha caldeira new type industrial 500kg biomass steam boiler
Reliable performance 0.5t/h castnha caldeira new type industrial 500kg biomass steam boiler
the production process of our boiler
biomass6
biomass2
Reliable performance 0.5t/h castnha caldeira new type industrial 500kg biomass steam boiler
Small steam boiler applicable scenario
For food industry: food factory, beverage factory, bakery, high temperature milk sterilization, steamed soy milk, steamed steamed buns.
For pharmaceutical industry: hospital disinfection, hospital canteen, hospital bath, pharmaceutical equipment heating, cooking medicine.
For biological equipment industry: sterilizer, school laboratory, thermal test.
Reliable performance 0.5t/h castnha caldeira new type industrial 500kg biomass steam boiler
Our engineering case
Reliable performance 0.5t/h castnha caldeira new type industrial 500kg biomass steam boiler
Company Information
Reliable performance 0.5t/h castnha caldeira new type industrial 500kg biomass steam boiler
Henan kaifeng Swet (original name Desheng) Boiler Co.Ltd was established in 1954 ,We have continued to provide customers with more than 60 years of quality service, known as the king of China's boiler.
It’s the national designated A-class boilers and D1, D2 class pressure vessel manufacturing key enterprises and has passed ISO9001 international quality management certification system certification.
It holds level 1 boiler installation permit ,National special equipment manufacturing license ,National special equipment installation remould maintenance permits and so on.
In 1979 the world's first circulating fluidized bed boiler developed by the Austrian company in Finland.
In 1987 China's first circulating fluidized bed boiler was born in our factory.
In 2016 In order to meet current emissions and reduce energy consumption requirements, our company launched efficient low-emission energy-saving circulating fluidized bed boiler, has been identified by the national institute of special equipment.
OUR FACTORY
Our main products include circular fluidized bed (CFB) boilers, gas boilers, coal boilers, biomass boilers, oil boilers, power plant boilers, energy efficient boilers, slag boilers, efficient boilers, electric boilers, high pressure boilers, fully automatic Control of boilers, wood vapors biomass boilers, chain grate, condensing boilers, natural gas steam boilers, water pipe boilers, fire pipe boilers, all artificial intelligence boilers, biomass steam generators, refractory materials, boiler accessories and so on.
Reliable performance 0.5t/h castnha caldeira new type industrial 500kg biomass steam boiler
OUR ENTERPRISE HONOR
Reliable performance 0.5t/h castnha caldeira new type industrial 500kg biomass steam boiler
OUR ADVANTAGES
The China’s first circular flow bed (CFB)boiler manufacturer.
China 's top ten boiler manufacturing enterprises.
Shanghai Industrial Boiler Research Institute Industrial Boiler Technology Development Relying on the unit.
North China Water Conservancy and Hydropower University teaching and research base.
Chinese Academy of Sciences circulating fluidized bed boiler research and development base.
Reliable performance 0.5t/h castnha caldeira new type industrial 500kg biomass steam boiler.png
Packaging & Shipping
Reliable performance 0.5t/h castnha caldeira new type industrial 500kg biomass steam boiler
Some of our domestic customers
China Petroleum Pipeline Materials and Equipment Corporation.
China Petroleum & Chemical Corporation.
China Aero Engine Group.
COFCO Group Limited.
Our Customer Visit
Reliable performance 0.5t/h castnha caldeira new type industrial 500kg biomass steam boiler
FAQ
Q: How many years is the boiler’s life?
A: The boiler is designed for at least 20 years life.
Q: Can I get guarantee of products?
A: Yes, every product is 1 year quality warranty under customer correct using the products.
Q: How is the warranty term?
A: If any problems caused for quality during the warranty period, the Seller will repair or replace the broken parts for free, if the problem caused from the client’s side, the Seller will help supply the spare part at lowest cost.
Q: Do you have any Certificate?
A: Yes. Each of our boiler has China GB and ISO9001certificate
Q: How to install a boiler?
A: Our boiler provides completed installation drawing and manual, or send engineer abroad for installation guidance.
Q: What about the maintenance?
A: I will offer you the timely maintenance way sheet after installation of the boiler mainly parts.
Q: How to choose a boiler model?
A: Confirm the type (steam or hot water), capacity, pressure (or output temperature need) and fuel(coal, biomass, gas or oil) of the boiler, we will suggest a suitable model based on your usage.
Q: What about the production?
A: Produce time is 30 days.
Q: How can I pay you?

A: T/T is very well used. We also accept other ways, depending on the circumstances.

1) T/T with 30% deposit, when we sign the contract and the rest 70% should be paid by T/T before goods delivery from us. The payment accepted by our company's bank account are USD, RMB and Euro.
2) Alibaba Trade Assurance as the payment term with 30% deposit and 70% before shipment. The payment accepted by our Alibaba Trade Assurance account only for USD.

Contact us
Pre-sale technical guidance, including the host, auxiliary equipment selection and layout. Provide a full set of installation services, such as self-installation, can provide on-site technical guidance, including furnace wall masonry, cooking, commissioning and so on.
After the sale of professional and technical personnel to train the customer burner, until its complete grasp, independent operation. Usually 24 hours to accept telephone consultation, timely service.



Any Question, Please contact us ,we serve you 24 hours !
Reliable performance 0.5t/h castnha caldeira new type industrial 500kg biomass steam boiler
Reliable performance 0.5t/h castnha caldeira new type industrial 500kg biomass steam boiler
