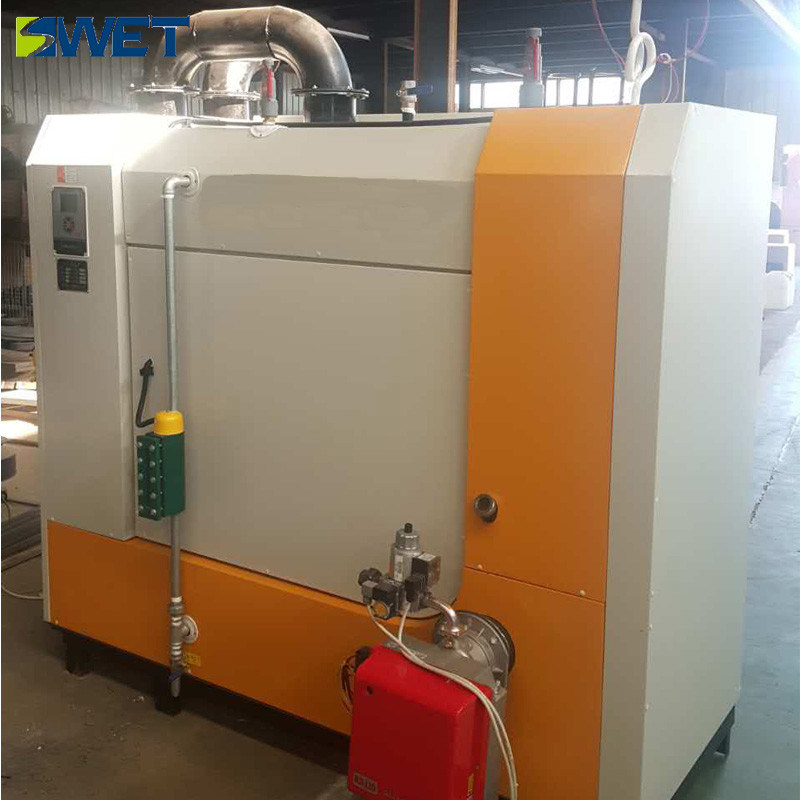

400kg/H Gas Fired Steam Boiler Fully Automatically For Industrial Production

China 400kg/H Gas Fired Steam Boiler Fully Automatically For Industrial Production supplier
400kg/H Gas Fired Steam Boiler Fully Automatically For Industrial Production supplier 400kg/H Gas Fired Steam Boiler Fully Automatically For Industrial Production supplier 400kg/H Gas Fired Steam Boiler Fully Automatically For Industrial Production supplier 400kg/H Gas Fired Steam Boiler Fully Automatically For Industrial Production supplier 400kg/H Gas Fired Steam Boiler Fully Automatically For Industrial Production supplier 400kg/H Gas Fired Steam Boiler Fully Automatically For Industrial Production supplier

Large Image :  400kg/H Gas Fired Steam Boiler Fully Automatically For Industrial Production

Product Details:

Place of Origin: Henan China
Brand Name: SWET
Certification: ISO9001
Model Number: YDZ0.4-0.7-Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiation
Packaging Details: The steam boiler is covered with a waterproof film and the transport package is a wooden box.
Delivery Time: 10-15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 Set/Sets Per Year
Contact Now
Detailed Product Description
Rated Evaporation: 400kg/h Weight: 2.8T
Preset Pressure: 0.7mpa Rated Steam Temperature: 170℃
Thermal Efficiency: 93% Color: Customer's Requirement
Design Fuel: Gas Warranty: 12months
Usage: Industrial,Garment Manufacturer Type: Natural Circulation,Once Through /Auxiliary Cycle
Fuel: Oil,Gas,Oil/Gas-fired Style: Horizontal,Vertical,horizontal And Vertical
Condition: New Output: Steam
Pressure: Low Pressure,High Pressure,Low Pressure(1.25MPa) Structure: Fire Tube,Water Tube,water-fire Tube
Application: Industrial Production,Machinery Industry,Hospital,chemical Industry,Food Factory Steam Temperature: 170-204℃,194 ℃,≤194℃

Fully automatic 400kg/h gas steam boiler for industrial production



Product Description



1. The unique design of small water volume and large steam enthalpy allows you to obtain steam in the shortest time, with built-in steam-water separation device to ensure high-drying and high-quality steam.

2.The burner releases heat, which is first absorbed by the water wall by radiative heat transfer. The water of the water wall boils and vaporizes, and a large amount of steam enters the steam drum for steam and water separation. The separated saturated steam enters the superheater and continues to absorb by convection. The flue gas heat at the top of the furnace and the horizontal flue, the tail flue, and the superheated steam reaches the required operating temperature.



diesel steamboiler.jpg











product parameters

400kg/h gas steam boiler technical parameters:





Biomass steam boiler technical
Rated evaporation Rated pressure

Rated steam tempe

rature

Feed water temper

ature

Design thermal efficiency Water capacity Steam outlet water intake Drain valve Dimensions Shipping weight Full load biomass consumption
L W H
Kg/h Mpa % L DN DN DN mm mm mm T Kg/h
300 0.7 170℃ 20℃ 87% 28 25 15 25 2000 1400 2700 1.35 49.3
600 0.7 170℃ 20℃ 93% 29 32 15 25 2500 1800 2500 4.1 76.8
1000 0.7 170℃ 20℃ 92% 29 32 15 25 3000 2300 2500 6 153.5











Application field description:



1.For food industry: food factory, beverage factory, bakery, high temperature milk sterilization, steamed soy milk, steamed steamed buns.



2.For biological equipment industry: sterilizer, school laboratory, thermal test





Packaging & Shipping





Reliable performance wood fired high pressure steam woodchip boiler for textile industry



400kg/H Gas Fired Steam Boiler Fully Automatically For Industrial Production



FAQ

Q: How can I pay you?

A: T/T is very well used.We also accept other ways, depending on the circumstances

Q: What about the production?

A: Produce time is 30 days

Q: What about the maintenance?

A: I will offer you the timely maintenance way sheet after installation of the boiler mainly parts.
