400kg Mini Oil Industrial Steam Boiler For Rice Mill , Full Automatic Control

Minimum Order Quantity : 1 SET Price : Negotiation
Packaging Details : The300kg steam boiler bady with plywood packaging. Delivery Time : 10 WORKING DAY
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 3000 SETS PER YEAR
Place of Origin: HENAN,CHINA Brand Name: SWET
Certification: ISO9001 Model Number: LSS

Detail Information

Product Name: New Type Full Automatic Control 400kg Mini Oil Steam Boiler For Rice Mill Item: YDZ- Gas Steam Boiler
Design Fuel: Gas/oil Color: Customer's Requirement
Warranty: 12 Months Thermal Efficiency: Over 92%
The Biggest Fuel Consumption(Nm3/h): 52.9 Rated Evaporation (kg/h): 400kg
Rated Steam Temperature(℃): 170 Rated Steam Pressure(Mpa): 0.7
Size: 2350x1750x2200mm Weight: 2800kg
Burner: Italy Riello
High Light:

oil steam boiler

,

natural gas steam boiler

Product Description



400kg Mini Oil Industrial Steam Boiler For Rice Mill , Full Automatic Control





  1. Use the most suitable fuel equipment for biomass fuel combustion - Reciprocating grate.



  2.In the design structure, compared with the traditional boiler furnace space, and a very reasonable secondary air arrangement, it is advantageous to instantaneously precipitate a large amount of volatility and full combustion when burning biomass fuel. The control system uses high brightness.


  3.The furnace body is generally made of a seamless tube for the boiler. Because the generator has high pressure and temperature during normal operation, the safety protection system makes it safe, reliable and efficient in long-term operation. The safety valve consists of a strong copper alloy, check valve and exhaust valve for three-stage protection.



full automatic control 300kg / 150kg/h oil gas steam boiler



Gas oil steam boiler technical parameters



Gas oil steam generator technical parameter
Rated evaporati on Rated pressure Rated steam temperat ure Feed water temperat ure Design thermal efficienc y Water capacit y Steam outlet water intake Drain valve Gas supply pressur e Gas pipe diamet er Dimensions Shippin g weight
                      L W H
Kg/h Mpa % L DN DN DN Kpa DN mm mm mm T
80 0.7 170℃ 20℃ 90% 27 15 15 20 2-3.5 20 1050 1000 1500 0.5
100 0.7 170℃ 20℃ 90% 27 15 15 20 2-3.5 20 1150 1100 1600 0.6
150 0.7 170℃ 20℃ 90% 27.6 15 15 20 2-3.5 20 1250 1200 1700 0.7
200 0.7 170℃ 20℃ 90% 27.6 20 15 25 2-3.5 20 1600 1500 2300 1.2
300 0.7 170℃ 20℃ 92% 28 32 15 25 3.5-5 20 1700 1600 2300 1.3
400 0.7 170℃ 20℃ 92% 28.6 32 15 25 3.5-5 32 2350 1750 2200 2.8
500 0.7 170℃ 20℃ 92% 29 40 15 25 3.5-5 32 3200 1500 2100/2500 3
600 0.7 170℃ 20℃ 92% 29 40 15 25 3.5-5 32 3200 1500 2500 4.2

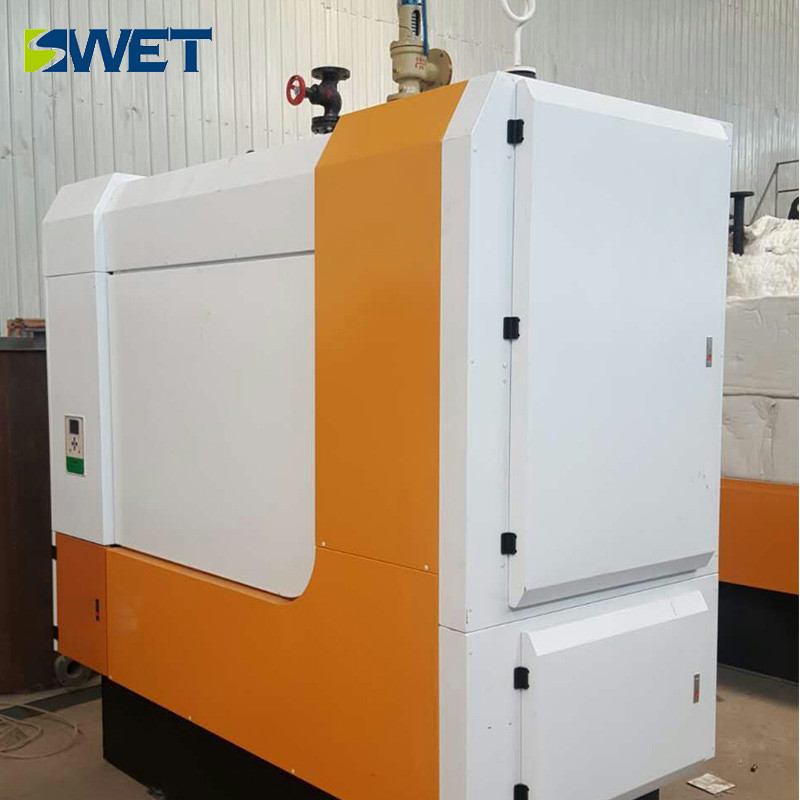

mini oil steam boiler.jpg



New type full automatic control 400kg mini oil steam boiler for rice mill



Please to confirm 2 points as fellow:



1.boiler capacity: according to heat equipment's whole using quantity of heating ,we should considerate the max using quantity of heating and low using quantity of heating , and left fixed allowance , to confirm the boiler rated evaporation capacity(t/h)



2.boiler pressure: according to using heating equipment's max working temperature and enough considerate steam transportation loss , to make sure saturated vapor, and to choose boiler pressure grade .





FAQ:



Q1:How to install a boiler?

A1:This steam generator is factory-assembled and easy to install. It does not require

professional installers to install, and it also saves a lot of installation materials.



Q2: How many years is the boiler’s life span?

A2: The boiler is designed for at least 10 years life span, but under good maintenance, usually the boiler can use at least 15 years, Swet Boiler provide full life after-sales service to each sold boiler.



Q3: How to choose a boiler model?

A3: Confirm the type (steam or hot water), capacity, working pressure (or output temperature) and fuel(coal, biomass, gas or oil or other fuel) of the boiler, Swet Boiler will suggest a suitable model based on your usage.



Q4: How is the warranty term?

A4: If any problems caused for quality during the warranty period, the Seller will repair or replace the broken parts for free, if the problem caused from the client’s side, the Seller will help supply the spare part at lowest cost.





Q5: How to get the best price quickly?

A5: We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then confirm the boiler model. (2) The customer needs to provide us with your name, e-mail address and company name, and we will send you a price list immediately. If you use WhatsApp, Skype or WeChat, you can provide us with your ID, which will be more convenient

For our communication.



Q6: Why do you have to believe in the quality of our boilers?

A6:(1). Applied material information strength calculation report;



(2) Non-destructive testing (non-destructive testing) of steel plates, tubes, and electrodes is 100%;



(3) 100% X-ray inspection (welding): to ensure the quality of the entire boiler;



(4). Hydrostatic pressure test: ensuring standard working pressure and safety;



(5). Third party inspection report: Henan Boiler Testing Institute;



(6). Passed ISO:9001 and SGS certificates.





Service purposes:

1. Focus on customers, the pursuit of excellence, and customers to progress together;


2. Customer demand is our eternal pursuit;


3. Sell a boiler, build a demonstration project, pay a friend, open up a market is my company's business philosophy.
