Detail Information
Product Name:	500kg Gas Steam Boiler	Item:	LSS-6003 Gas Steam Boiler
Design Fuel:	Gas/oil	Color:	Customer's Requirement
Warranty:	12 Months	Thermal Efficiency:	Over 90%
The Biggest Fuel Consumption(Nm3/h):	37.9	Rated Evaporation (kg/h):	500
Rated Steam Temperature(℃):	170	Rated Steam Pressure(Mpa):	0.7
Size:	3200x1500x2100mm	Fuel:	Gas-fired,Oil-fired,gas
Usage:	Industrial	Type:	Natural Circulation,Once Through,Gas Fired Steam Generator
High Light:	natural gas fired steam generator , diesel steam boiler

Product Description

500KG full automatic control gas diesel steam boiler

1. The steam generator fuels are renewable biomass; the running cost is one fifth of electric boiler, one third of oil boiler.

2. The steam generator full automatic control. Just connect the water and electricity; press the key, then the boiler will automatically enter the automatic running, safer and more convenient.

3. The steam generator Easy installation; no need to ask for a professional installation personnel to install, meanwhile saving a lot of installation materials.

4. Environmental protection and durability: biomass steam generator with a new multi-tube cyclone dust collector and energy-saving integrated structure, greatly reducing the flue gas temperature, improve thermal efficiency, environmental protection requirements to meet the new national standards.

Gas steam boiler technical parameters

Gas steam boiler technical parameter
Rated evaporati on	Rated pressure	Rated steam temperat ure	Feed water temperat ure	Design thermal efficienc y	Water capacit y	Steam outlet	water intake	Drain valve	Gas supply pressur e	Gas pipe diamet er	Dimensions			Shippin g weight	Full load biomass consuption
											L	W	H
Kg/h	Mpa	℃	℃	%	L	DN	DN	DN	Kpa	DN	mm	mm	mm	T	Nm³/h
80	0.7	170℃	20℃	90%	27	15	15	20	2-3.5	20	1050	1000	1500	0.6	6.5(NG)
100	0.7	170℃	20℃	90%	27	15	15	20	2-3.5	20	1150	1100	1600	0.5	8.4(NG)
150	0.7	170℃	20℃	90%	27.6	15	15	20	2-3.5	20	1250	1200	1700	0.7	11.7(NG)
200	0.7	170℃	20℃	90%	27.6	20	15	25	2-3.5	20	1600	1500	2300	1.2	15.7(NG)
300	0.7	170℃	20℃	92%	28	32	15	25	3.5-5	20	1700	1600	2300	1.3	22.3(NG)
400	0.7	170℃	20℃	92%	28.6	32	15	25	3.5-5	32	2350	1750	2200	2.8	30.5(NG)
500	0.7	170℃	20℃	92%	29	40	15	25	3.5-5	32	3200	1500	2100	3	37.9(NG)
600	0.7	170℃	20℃	92%	29	40	15	25	3.5-5	32	3200	1500	2500	4.2	46.9(NG)

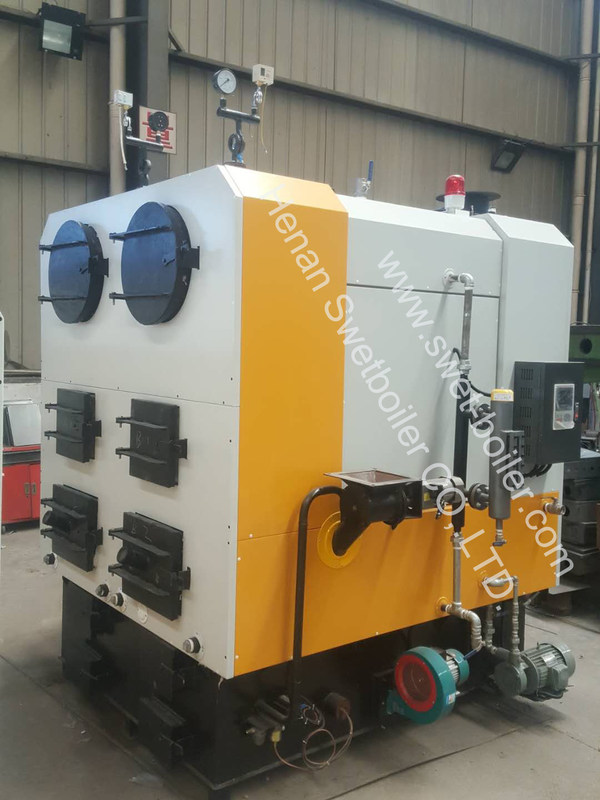

Diesel / Gas Steam Boiler Integrated Structure With Customized Color 0

Diesel / Gas Steam Boiler Integrated Structure With Customized Color 2

Tag:

Product Details:
Place of Origin:	HENAN,CHINA
Brand Name:	SWET
Certification:	ISO9001
Model Number:	LSS-6003
Payment & Shipping Terms:
Minimum Order Quantity:	1 SET
Price:	Negotiation
Packaging Details:	The 500kg steam generator bady with plywood packaging.
Delivery Time:	10 WORKING DAY
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000 SETS PER YEAR

Diesel / Gas Steam Boiler Integrated Structure With Customized Color

natural gas fired steam generator

diesel steam boiler

500KG full automatic control gas diesel steam boiler
