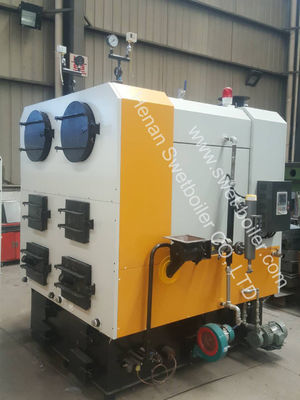

200KG Automatic Industrial Steam Boiler , Gas Fired Steam Boiler Energy Saving

Minimum Order Quantity : 1 SET Price : Negotiation
Packaging Details : The New Type 200kg steam boiler bady with plywood packaging. Delivery Time : 10 WORKING DAY
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 3000 SETS PER YEAR
Place of Origin: HENAN,CHINA Brand Name: SWET
Certification: ISO9001 Model Number: LSS-6007

Detail Information

Product Name: 200kg LPG Steam Boiler Item: LSS-6007 LPG Steam Boiler
Design Fuel: Gas/oil Color: Customer's Requirement
Warranty: 12 Months Thermal Efficiency: Over 92%
The Biggest Fuel Consumption(Nm3/h): 15.7 Rated Evaporation (kg/h): 200
Rated Steam Temperature(℃): 170 Rated Steam Pressure(Mpa): 0.7
Size: 1600x1500x2300mm Material: Boiler Steel
Burner: Italy Riello Weight: 1.2t
High Light:

oil steam boiler

,

natural gas steam boiler

Product Description



200KG Full Automatic Control LPG Gas Steam Boiler For Dyeing Industry



   1. The steam boiler fuels are renewable biomass; the running cost is one fifth of electric boiler, one third of oil boiler.



   2. The steam boiler full automatic control. Just connect the water and electricity; press the key, then the boiler will automatically enter the automatic running, safer and more convenient.



   3. The steam boiler built-in steam separator solves the problem of steam with water to ensure the quality of the steam.



    4. The steam boiler fuel is energy-saving and environmentally friendly biomass. It is renewable, wide range of sources, affordable, and its running cost is one sixth of electric boiler, and a third of oil-fired boiler. There is no smoke and dust put off when burning. Only a small amount of powdery ash residue after completely burned retained in the ash collection chamber, easy to handle.



Gas steam boiler technical parameters


Gas steam boiler technical parameter
Rated evaporati on Rated pressure Rated steam temperat ure Feed water temperat ure Design thermal efficienc y Water capacit y Steam outlet water intake Drain valve Gas supply pressur e Gas pipe diamet er Dimensions Shippin g weight Full load biomass consuption
                      L W H
Kg/h Mpa % L DN DN DN Kpa DN mm mm mm T Nm³/h
80 0.7 170℃ 20℃ 90% 27 15 15 20 2-3.5 20 1050 1000 1500 0.6 6.5(NG)
100 0.7 170℃ 20℃ 90% 27 15 15 20 2-3.5 20 1150 1100 1600 0.5 8.4(NG)
150 0.7 170℃ 20℃ 90% 27.6 15 15 20 2-3.5 20 1250 1200 1700 0.7 11.7(NG)
200 0.7 170℃ 20℃ 90% 27.6 20 15 25 2-3.5 20 1600 1500 2300 1.2 15.7(NG)
300 0.7 170℃ 20℃ 92% 28 32 15 25 3.5-5 20 1700 1600 2300 1.3 22.3(NG)
400 0.7 170℃ 20℃ 92% 28.6 32 15 25 3.5-5 32 2350 1750 2200 2.8 30.5(NG)
500 0.7 170℃ 20℃ 92% 29 40 15 25 3.5-5 32 3200 1500 2100 3 37.9(NG)
600 0.7 170℃ 20℃ 92% 29 40 15 25 3.5-5 32 3200 1500 2500 4.2 46.9(NG)
