Product Details:
Payment & Shipping Terms:
|
Rated Evaporation: | 30t/h | Working Pressure: | 2.5MPa |
---|---|---|---|
Return Water Temperature: | 104℃ | Keywords: | Biomass Steam Boiler |
Steam Temperature: | 224℃ | Color: | Base On Needs |
Types: | Vertical | Thermal Efficiency: | 85% |
Type: | Natural Circulation | Structure: | Water Tube,Fire Tube,Water-Fire Tube |
Style: | Horizontal,Vertical | Fuel: | Wood Pellet,wood Chip,biomass Pellet |
Application: | Industrial Production,wood Industry,Textile Mill |
Product Description

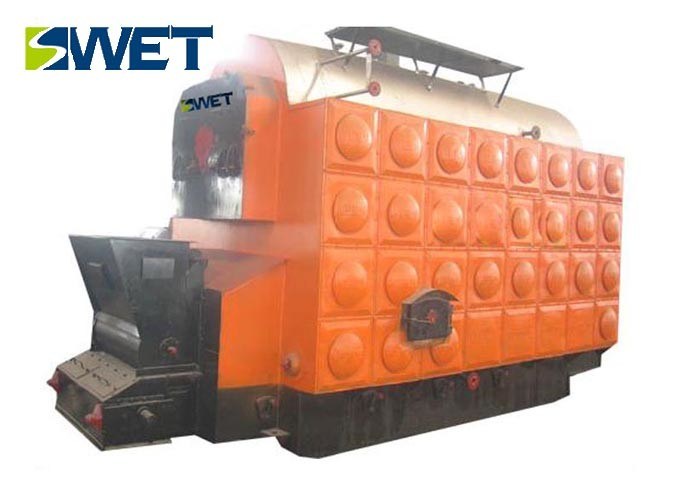

1. This boiler adopt chain grate,suitable for molding pellet fuel,can add a small amount of wood,wood block,also can burn with coal.
2. This boiler adopt the newest achievements in scientific research, such as:Arched Tube plate, thread smoke tube etc, solve the tube plate crack of shell type boiler, Water wall tube burst, low efficiency, insufficient of power,Poor pf coal type adaptability etc.
Combustion Processe
The fuel burning at the furnace through, the exhaust gas flow from the boiler barrel bottom to the smoke window outlet on the Eight character wall, then enter convection bank at the both wings, next enter the thread smoke tube through the front smoke box, pass by economizer, dust remover, and induced draft fan, finally discharged to the atmosphere by chimney.
Feeding System Introduction:
1. Conveyor feeding mode (For biomass particles)
2. Elevating automatic feeding (For coal)
3. Blast feeding (For size of less than 50mm of small sawdust, or rice husk)
Technical Parameters
Boiler type and parameter list of double boiler barrel series chain grate boiler |
|||||||
Boiler model |
Rated evaporation |
Working pressure |
Steam temperature |
Water supply temperature |
Exhaust temperature |
Thermal efficiency |
Boiler dimensions |
Unit |
t/h |
Mpa |
℃ |
℃ |
℃ |
% |
mm |
SZL10-1.25-T |
10 |
0.7/1.0/1.25 |
170/184/194 |
104 |
150 |
≥80 |
8830x3180x5730 |
SZL15-1.6-T |
15 |
1.0/1.25/1.6 |
184/194/204 |
104 |
155 |
≥80 |
14000x4174x614 |
SZL20-1.6-T |
20 |
1.0/1.25/1.6 |
184/194/204 |
104 |
155 |
≥80 |
15820x4620x8680 |
SZL25-2.5-T |
25 |
1.25/1.6/2.5 |
194/204/224 |
104 |
160 |
≥80 |
12800x6000x8420 |
SZL30-2.5-T |
30 |
1.25/1.6/2.5 |
194/204/224 |
104 |
160 |
≥80 |
13000x7100x9500 |
SZL35-2.5-T |
35 |
1.25/1.6/2.5 |
194/204/224 |
104 |
160 |
≥80 |
3000x7600x9800 |
