2.5MPa Coal Fired Boiler , Double Drum Chain Grate Industrial Steam Boiler

China 2.5MPa Coal Fired Boiler , Double Drum Chain Grate Industrial Steam Boiler supplier
2.5MPa Coal Fired Boiler , Double Drum Chain Grate Industrial Steam Boiler supplier 2.5MPa Coal Fired Boiler , Double Drum Chain Grate Industrial Steam Boiler supplier 2.5MPa Coal Fired Boiler , Double Drum Chain Grate Industrial Steam Boiler supplier 2.5MPa Coal Fired Boiler , Double Drum Chain Grate Industrial Steam Boiler supplier

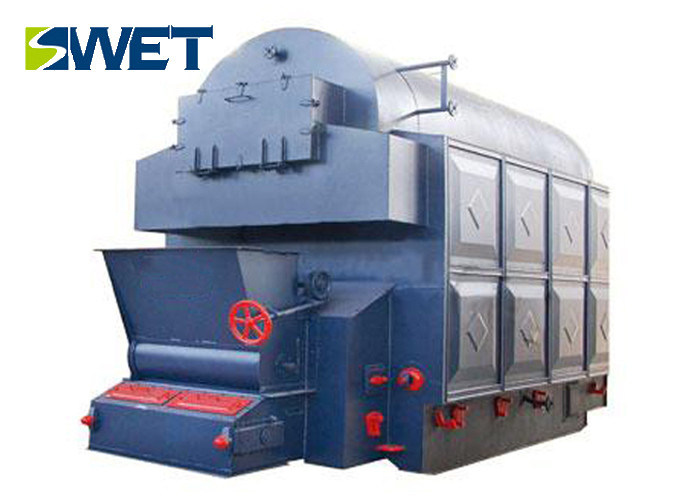

Large Image :  2.5MPa Coal Fired Boiler , Double Drum Chain Grate Industrial Steam Boiler

Product Details:

Place of Origin: Henan China
Brand Name: SWET
Certification: ISO9001
Model Number: SZL25-2.5-T-0034

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiation
Packaging Details: The main part of the boiler is bare packaging and wood packaging, container or according to packaging needs.
Delivery Time: 25-35 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash or on the basis of mutual agreement
Supply Ability: 1500 Set/Sets Per Year
Contact Now
Detailed Product Description
Rated Evaporation: 25t/h Working Pressure: 2.5MPa
Return Water Temperature: 104℃ Keywords: Steam Boiler
Steam Temperature: 224℃ Exhaust Temperature: 160℃
Types: Double Drum Thermal Efficiency: 85%
Type: Natural Circulation Application: Industrial Production,wood Industry,Textile Mill,Bath Hot Water And Heating,Chemical Plant

2.5MPa Chain Grate Coal Fired Steam Boiler For Industrial Power Plants



Product Description



1. Adopting automatic feeding, with reasonable second air technology and half gasification structure helping fuel combusting completely, the thermal efficiency can reach more than 90%. Stable flame, producing steam cautiously.



2. Environmental biomass fuels are widely promoted by the state because it’s cheaper price and wide sources. Operating cost is One-sixth of electric boiler, one-third of oil boiler.



3. Control system: Installing microcomputer to operate with one-button, people just set the process, and it can work automatically during the operating time. Once any abnormal situation to happen, stopping automatically with sound-light alarm, and pointing to the failure code, so it saves time to maintain.



4. Our protected device is safe and reliable. Selecting superior pressure controller, safety valve, low water alarm, overpressure alarm, over-temperature alarm, in order to make boilers operate safely.



5. Reasonable over-all structure to cover little space, hearing no sound. It is easy to install, because there is no need to set up tall chimney, with a very low failure rate.





Technical Parameters



Boiler type and parameter list of double boiler barrel series chain grate boiler

Boiler model

Rated evaporation

Working pressure

Steam temperature

Water supply temperature

Exhaust temperature

Thermal efficiency

Boiler dimensions

Unit

t/h

Mpa

%

mm

SZL10-1.25-T

10

0.7/1.0/1.25

170/184/194

104

150

≥80

8830x3180x5730

SZL15-1.6-T

15

1.0/1.25/1.6

184/194/204

104

155

≥80

14000x4174x614

SZL20-1.6-T

20

1.0/1.25/1.6

184/194/204

104

155

≥80

15820x4620x8680

SZL25-2.5-T

25

1.25/1.6/2.5

194/204/224

104

160

≥80

12800x6000x8420

SZL30-2.5-T

30

1.25/1.6/2.5

194/204/224

104

160

≥80

13000x7100x9500

SZL35-2.5-T

35

1.25/1.6/2.5

194/204/224

104

160

≥80

3000x7600x9800
